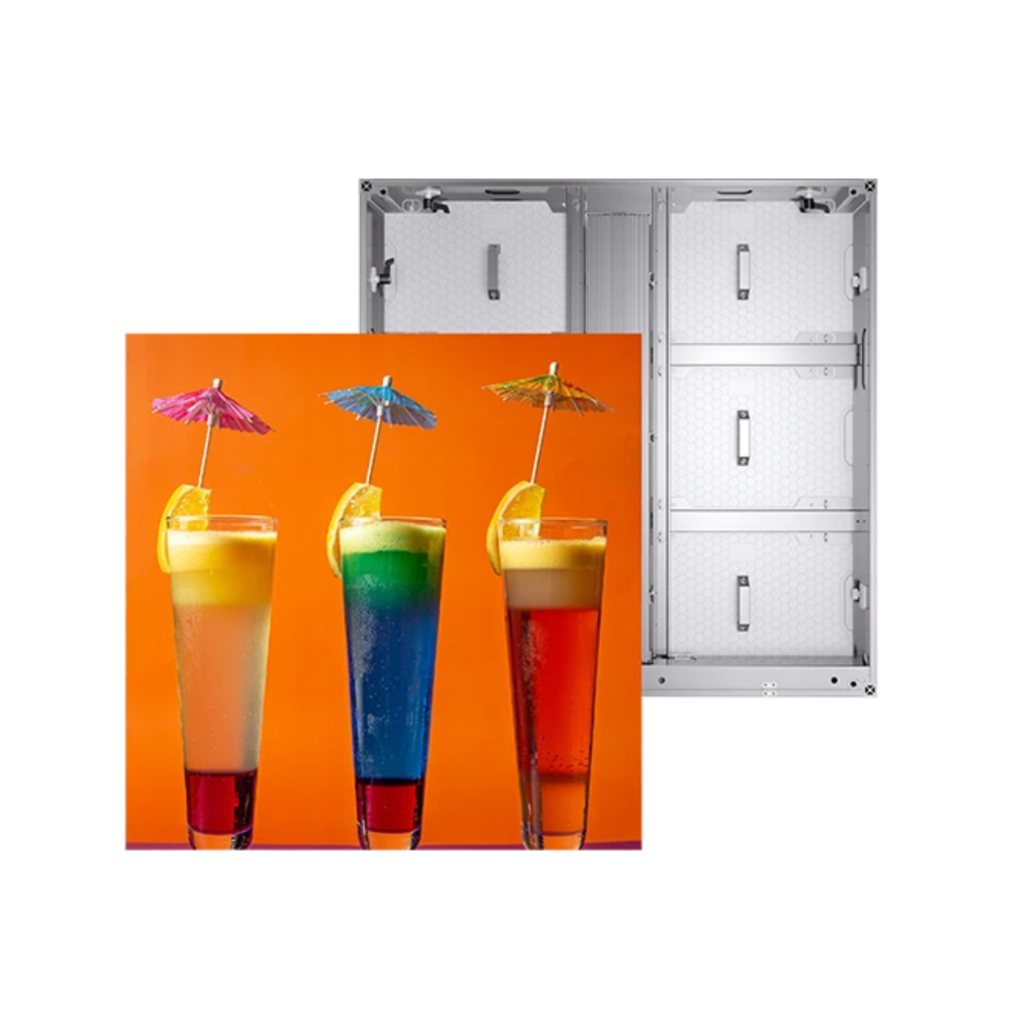

Outdoor Front Access LED Display-P4.7, P6.3, P9.5 FA2 Ultra
| Item | P4.7 | P6.3 | P9.5 |
|---|---|---|---|
| Pixel Pitch | 4.7625mm | 6.35mm | 9.525mm |
| LED Type | SMD1921 | SMD2727 | SMD2727 |
| Module Resolution | 128dots x 64dots | 96dots x 48dots | 64dots x 32dots |
| Driving Mode | 1/8scan | 1/6scan | 1/2scan |
| Module Pixels | 8192dots | 4608dots | 2048dots |
| Module Size | 2ft x 1ft | 2ft x 1ft | 2ft x 1ft |
| Cabinet Size | 2ft x 1ft | 2ft x 1ft | 2ft x 1ft |
| Cabinet Resolution | 128dots x 64dots | 96dots x 48dots | 64dots x 32dots |
| Pixel Density | 44,088dots/m² | 24,800dots/m² | 11,022dots/m² |
| Minimum Viewing Distance | ≥4.7 m | ≥6.3 m | ≥9.5m |
| Brightness | 6,500nits | 6500nits ~ 8000nits | 6,500nits ~ 10,000nits |
| IP Grade | IP67 | IP67 | IP67 |
| Refresh Rate | 3,840Hz～40,000Hz | 3,840Hz～40,000Hz | 3,840Hz～40,000Hz |
| Gray Scale | 14bits～22bits | 14bits～22bits | 14bits～22bits |
| Viewing Angle | H:110° / V:110° | H:110° / V:110° | H:110° / V:110° |
| Maximum Power Consumption | 800W/m² | 550W/m² | 550W/m² |
| Average Power Consumption | 260W/m² | 180W/m² | 180W/m² |
| Input Voltage | AC110V – AC220V @ 50Hz/60Hz | AC110V – AC220V @ 50Hz/60Hz | AC110V – AC220V @ 50Hz/60Hz |
| Operating Temperature | ﹣20℃～50℃ | ﹣20℃～50℃ | ﹣20℃～50℃ |
| Operating Humidity | 10%～90% | 10%～90% | 10%～90% |
| Cabinet Material | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum |
| Cabinet Weight | 3.9kg | 3.9kg | 3.9kg |
| Operating System | Windows (Win7, Win10etc.) | Windows (Win7, Win10, etc.) | Windows (Win7, Win10, etc.) |
| Signal Source Compatibility | DVI,HDMI1.3,DP1.2,SDI,HDMI2.0,etc. | DVI,HDMI1.3,DP1.2,SDI,HDMI2.0,etc. | DVI,HDMI1.3,DP1.2,SDI,HDMI2.0,etc. |
