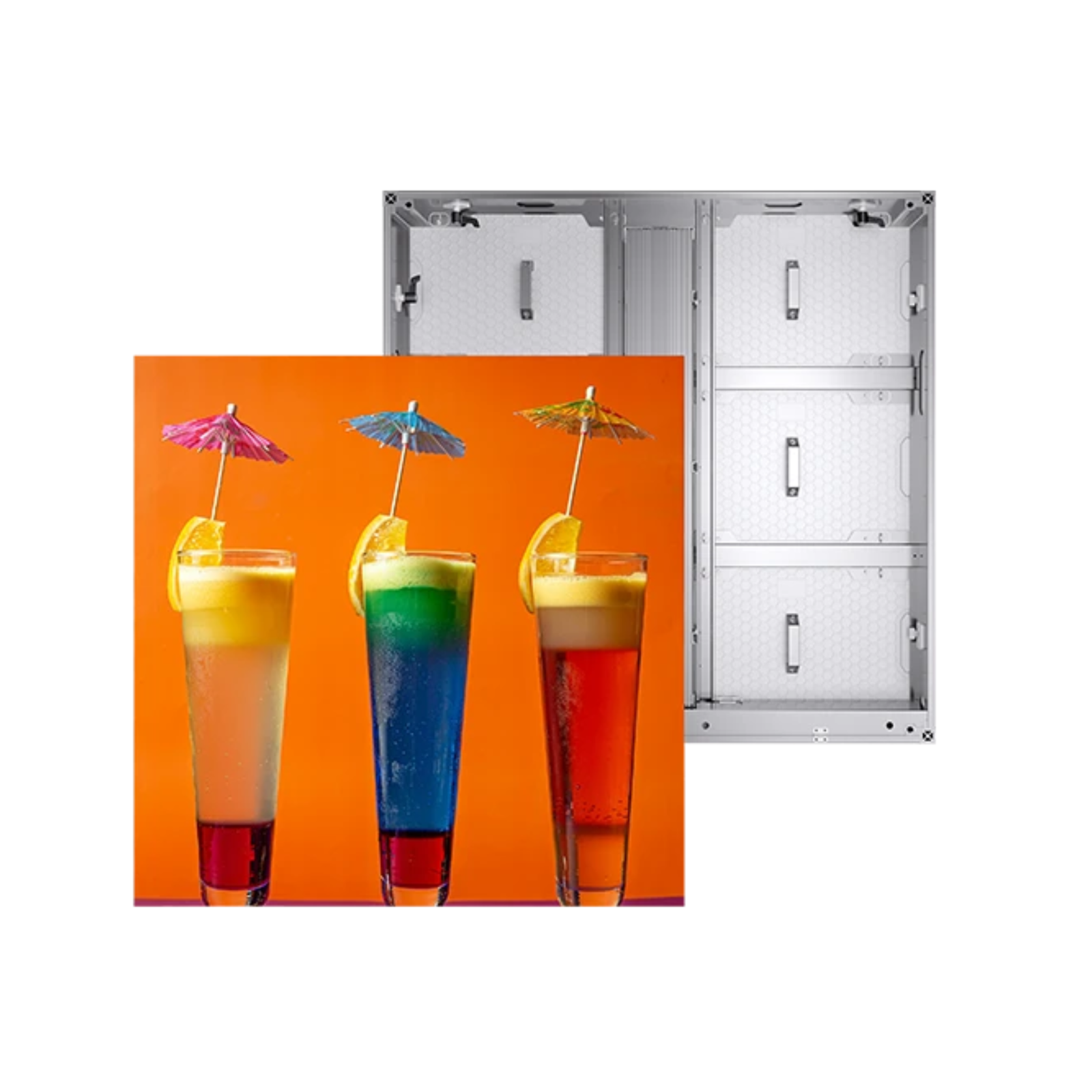

FA2 Elite Outdoor Front and Rear Access LED Display
FA2 Elite Outdoor Front and Rear Access LED Display
| Item | P5.71 | P6.67 |
|---|---|---|
| Pixel Pitch | 5.71mm | 6.67mm |
| LED Type | SMD2727 | SMD2727 |
| Module Resolution | 84dots x 56dots | 72dots x 48dots |
| Driving Mode | 1/7scan | 1/4scan |
| Module Pixels | 4704dots | 3456dots |
| Module Size | 480mm x 320mm | 480mm x 320mm |
| Cabinet Size(mm) | 960 x960×82 | 960 x960×82 |
| Cabinet Resolution | 168dots x 168dots | 144dots x 144dots |
| Pixel Density | 30,671dots/㎡ | 22,478dots/㎡ |
| Minimum Viewing Distance | ≥5.71 m | ≥6.67 m |
| Brightness | 5000nits ~ 10000nits | 5000nits ~ 10000nits |
| IP Grade | IP66 | IP66 |
| Refresh Rate | ≥3840Hz | ≥3840Hz |
| Gray Scale | 14bits~22bits | 14bits~22bits |
| Viewing Angle | H:160° / V:160° | H:160° / V:160° |
| Maximum Power Consumption | 560W/m² | 560W/m² |
| Average Power Consumption | 160W/m² | 160W/m² |
| Input Voltage | AC110V-220V@ 50Hz/60Hz | AC110V-220V@ 50Hz/60Hz |
| Operating Temperature | ﹣20℃～60℃ | ﹣20℃～60℃ |
| Operating Humidity | 10%~90% | 10%~90% |
| Cabinet Material | Aluminum | Aluminum |
| Cabinet Weight | 25kg/sqm | 25kg/sqm |
| Operating System | Windows (Win7, Win8, etc.) | Windows (Win7, Win8, etc.) |
| Signal Source Compatibility | DVI,HDMI1.3,DP1.2,SDI,HDMI2.0,etc. | DVI,HDMI1.3,DP1.2,SDI,HDMI2.0,etc. |
