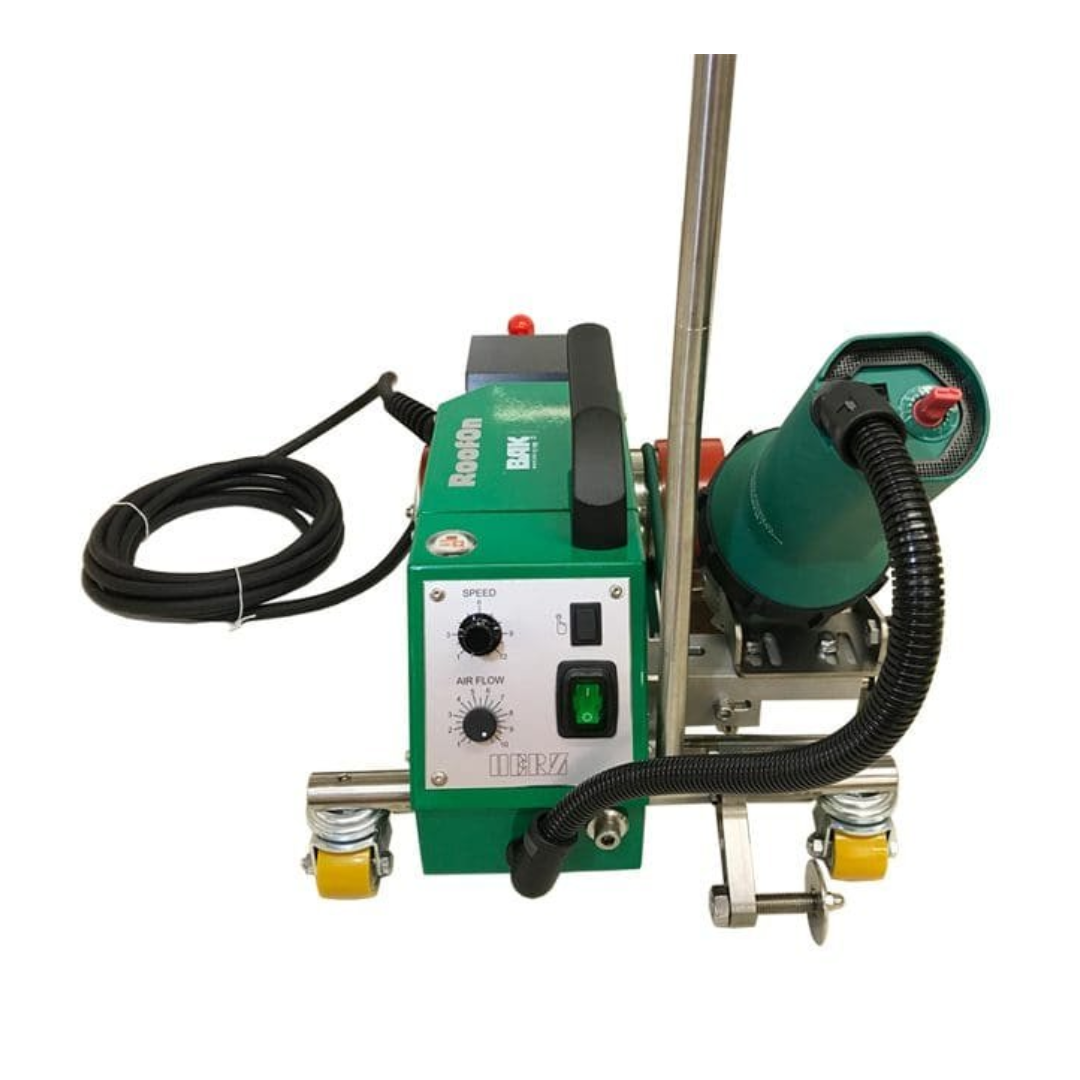

Roofon | Automatic roof welding machine | Small High-Performance Rooftop Welder

Roofon | Automatic roof welding machine | Small High-Performance Rooftop Welder

At a Glance: Roofon | Automatic roof welding machine | SKU: ARL-6600119

Primary Use: Automatic hot-air welding of all thermoplastic roofing membranes, including TPO and PVC, for projects ranging from 20 to 70 squares.

Key Benefit: Recognized as the smallest automatic roofing welder in its class, providing high-speed, wrinkle-free 40 mm seams while being exceptionally lightweight (15 kg).

Built For: Professional roofing contractors who need a portable, reliable, and low-priced automated solution for parapets, flashing, and seam overlaps.

Efficient Rooftop Automation with the Roofon | Automatic roof welding machine

Features that Drive Performance: The Roofon | Automatic roof welding machine is engineered to deliver professional-grade results in a compact and affordable package, bridging the gap between manual welding and full-sized industrial robots. Despite its small footprint, the Roofon | Automatic roof welding machine features an automatic drive start system and stepless potentiometer adjustments for speed, temperature, and airflow, ensuring total control over the welding process. This allows for a maximum welding speed of 12 m/min, significantly reducing the time required for traditional hand-welding tasks while maintaining a clean and consistent 40 mm seam width.

Product Specifications (Model: Roofon)

• SKU: ARL-6600119

• Weight: 15 kg (with 5 m cord)

• Welding Speed: 0.5 – 12 m/min

• Temperature Range: 20°C – 600°C

• Weld Seam Width: 40 mm (wrinkle-free)

• Adjustment: Stepless for speed, temperature, and airflow

• Safety: Integrated automatic drive start and low-noise operation (64 dB)

Ideal for Industries & Applications

• Commercial Roofing: Continuous overlap welding for large-scale TPO and PVC single-ply membrane installations.

• Detail Work: Specifically optimized for tight areas, including parapet walls, eaves, flashing transitions, and gutter edges.

• Environmental Sealing: High-quality welding of plastic sheets and linings for ponds or reservoirs.

• Maintenance & Repair: The lightweight design makes it the go-to tool for quick on-site roof repairs and structural maintenance.

Roofon vs. Roofon Digital: The Core Differences

• Roofon (Standard): Utilizes reliable potentiometer controls for stepless manual adjustment of all welding parameters.

• Roofon Digital: Adds a real-time digital read-out of both temperature and drive speed, providing even higher precision for technical materials.

• Performance: Both versions deliver identical high-speed performance (up to 12 m/min) and the same industrial-grade 40 mm seam quality.

• User Control: Choose the Roofon | Automatic roof welding machine for simplicity and cost-effectiveness; choose the Digital version for projects requiring strict data logging or specific heat tolerances.

Frequently Asked Questions (FAQ)

Is the Roofon | Automatic roof welding machine faster than hand welding? Yes. With speeds up to 12 meters per minute, the Roofon | Automatic roof welding machine is significantly faster and produces more uniform, wrinkle-free seams than manual hot-air tools.

Can the Roofon | Automatic roof welding machine handle thick membranes? The unit is capable of welding thermoplastic membranes up to and including 60 mil thickness, making it suitable for standard commercial roofing applications.

Does it require a special power supply? It is designed to run on standard jobsite power (available in 230V or 120V configurations), making it a practical choice for most construction environments.
