Shutter Ventilation Fan All-Plastic Frame ARL-APB-15/20/25/30-YSJ-1 Series

Shutter Ventilation Fan All-Plastic Frame ARL-APB-15/20/25/30-YSJ-1 Series

The Shutter Ventilation Fan All-Plastic Frame ARL-APB-15/20/25/30-YSJ-1 Series features a lightweight and durable all-plastic frame with integrated shutters, designed for efficient and quiet air circulation. These fans are ideal for installations requiring a corrosion-resistant structure and the ability to control airflow with the integrated shutter. They provide effective ventilation while ensuring longevity, making them suitable for a variety of environments where both performance and durability are essential.

Key Features:

• All-plastic frame for lightweight durability and corrosion resistance
• Integrated shutters for controlled airflow
• Efficient air volume for effective ventilation
• Available in multiple sizes to suit various applications
• Reliable and robust performance

Technical Specifications:

Model ARL-APB15-YSJ-1:

• Specification: 150mm (6 inch)
• Rated Power: 26 W
• Nominal Air Volume: 240 m³/h
• Speed: 1350 r/min
• Noise: 40 dB(A)
• Opening Size: 200×200 mm
• Applicable Area: 16-20 m²
• Quantity: 5 Pc
• Gross Weight: 6.8 Kg
• Packing Size (length x width and height): 645x260x270 mm
• 3C Certification: Certified
• Energy Efficiency Rating: 3

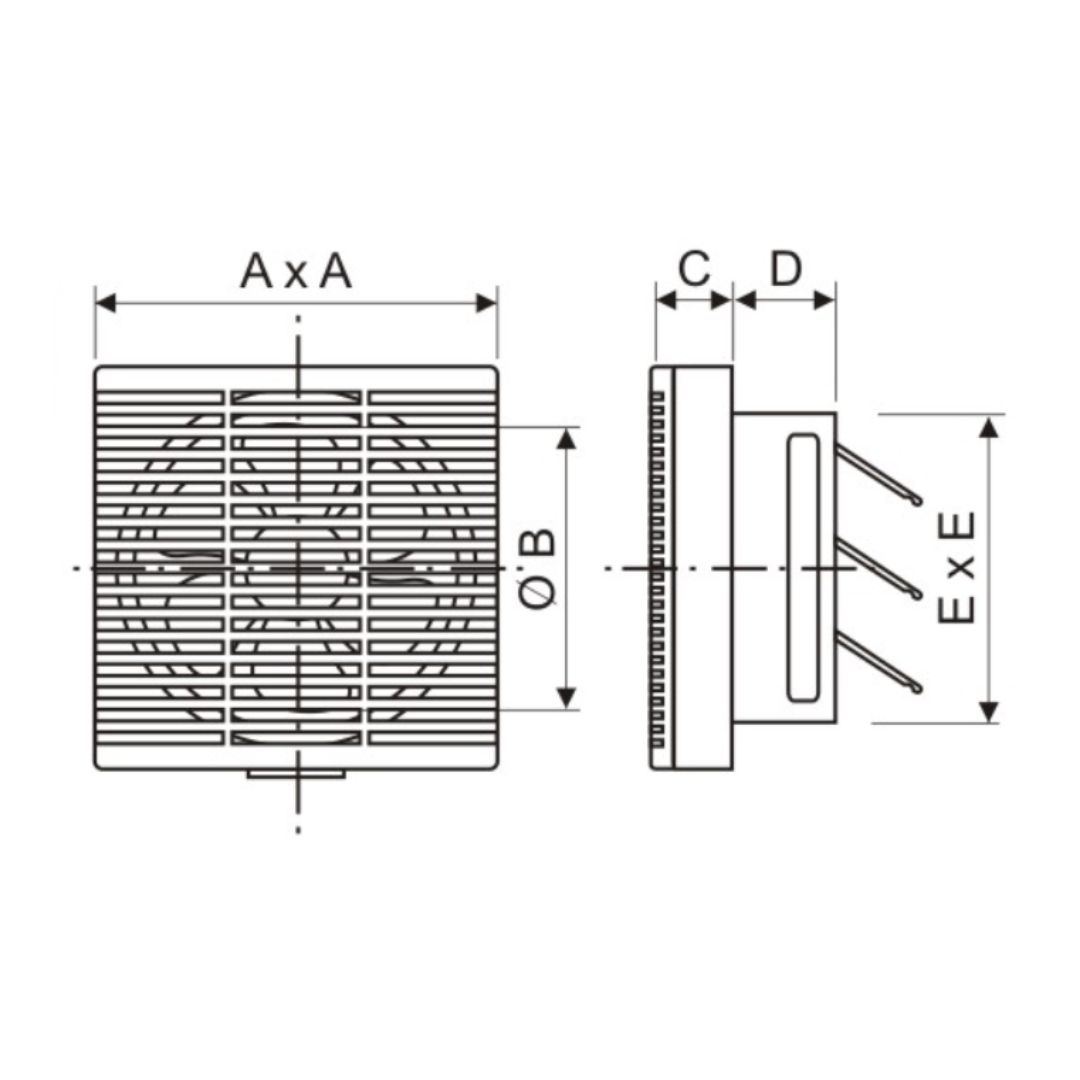

• Dimensions (mm): A: 234, B: Φ160, C: 32, D: 78, E: 195

ARL-APB20-YSJ-1:

• Specification: 200mm (8 inch)
• Rated Power: 28 W
• Nominal Air Volume: 486 m³/h
• Speed: 1250 r/min
• Noise: 42 dB(A)
• Opening Size: 250×250 mm
• Applicable Area: 20-25 m²
• Quantity: 5 Pc
• Gross Weight: 8.8 Kg
• Packing Size (length x width and height): 670x325x330 mm
• 3C Certification: Certified
• Energy Efficiency Rating: 3
• Dimensions (mm): A: 296, B: Φ200, C: 38, D: 86, E: 240

Model ARL-APB25-YSJ-1:

• Specification: 250mm (10 inch)
• Rated Power: 36 W
• Nominal Air Volume: 750 m³/h
• Speed: 1250 r/min
• Noise: 45 dB(A)
• Opening Size: 300×300 mm
• Applicable Area: 30-37 m²
• Quantity: 5 Pc
• Gross Weight: 10 Kg
• Packing Size (length x width and height): 700x365x375 mm
• 3C Certification: Certified
• Energy Efficiency Rating: 3
• Dimensions (mm): A: 338, B: Φ240, C: 39, D: 86, E: 280

ARL-APB30-YSJ-1:

• Specification: 300mm (12 inch)
• Rated Power: 48 W
• Nominal Air Volume: 1080 m³/h
• Speed: 1000 r/min
• Noise: 46 dB(A)
• Opening Size: 350×350 mm
• Applicable Area: 45-55 m²
• Quantity: 5 Pc
• Gross Weight: 13.5 Kg
• Packing Size (length x width and height): 730x425x425 mm
• 3C Certification: Certified
• Energy Efficiency Rating: 2
• Dimensions (mm): A: 388, B: Φ290, C: 39, D: 89, E: 340
