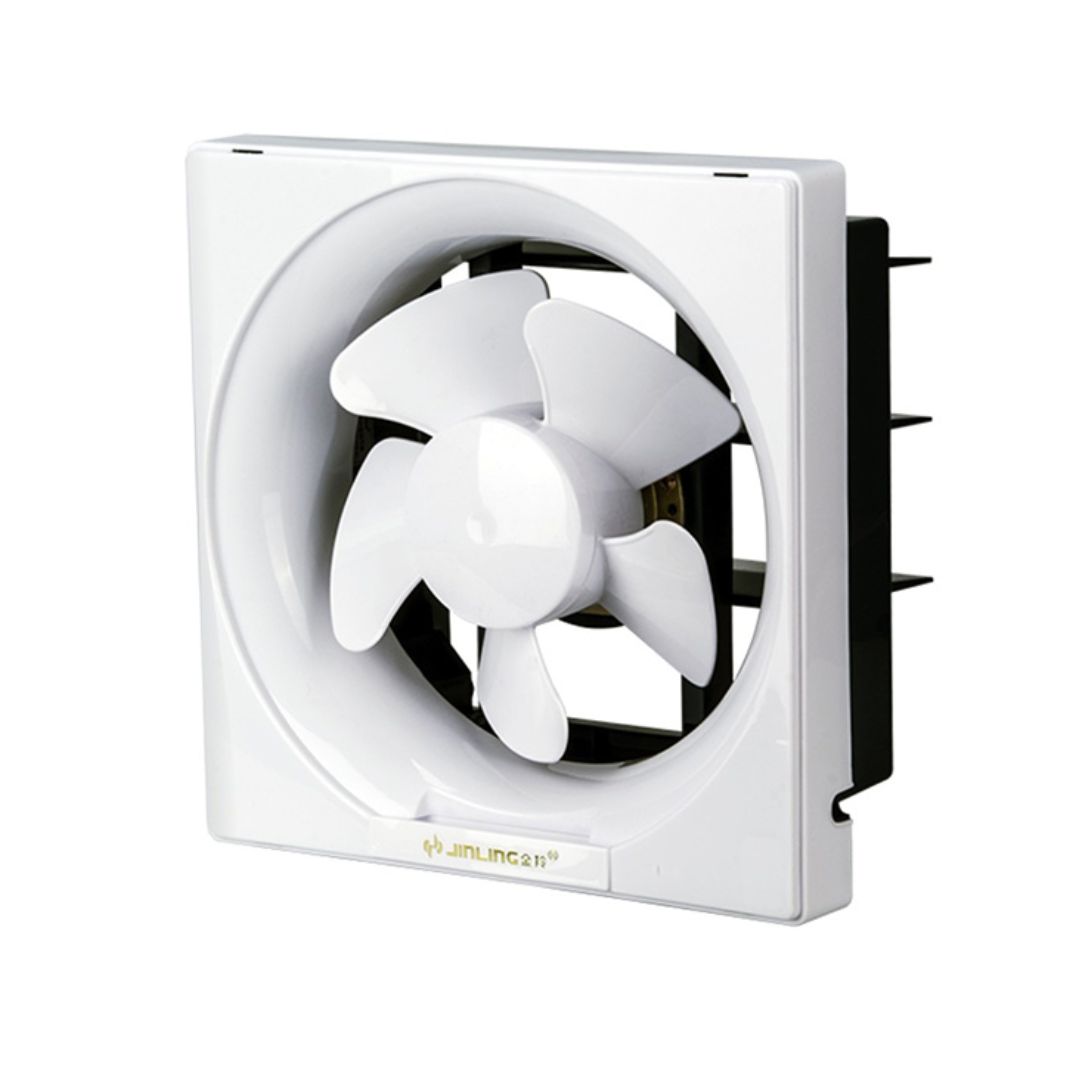

Shutter Ventilation Fan All Plastic Frame ARL-APB Series

Shutter Ventilation Fan All Plastic Frame ARL-APB Series

The Shutter Ventilation Fan All Plastic Frame ARL-APB Series are constructed with a durable all-plastic frame, offering a lightweight and corrosion-resistant solution for air extraction. These fans feature an integrated shutter mechanism for protection and controlled airflow, making them suitable for various ventilation needs in different environments.

Key Features:

• All-plastic frame for lightweight and corrosion-resistant properties
• Shutter mechanism for protection and airflow control
• Efficient air extraction
• Suitable for various ventilation applications

Technical Specifications:

• Model- APB15-3-30(J1):
  • Specification: 150 mm (6″)
  • Rated Power: 26 W
  • Nominal Air Volume: 241 m³/h
  • Speed: 1350 r/min
  • Noise: 40 dB(A)
  • Opening Size: 200×200 mm
  • Applicable Area: 16-20 m²
  • Quantity: 5 Pc
  • Gross Weight: 8.5 kg
  • Packing size (length, width and height): 655x265x270 mm
  • Energy Efficiency Rating: 3

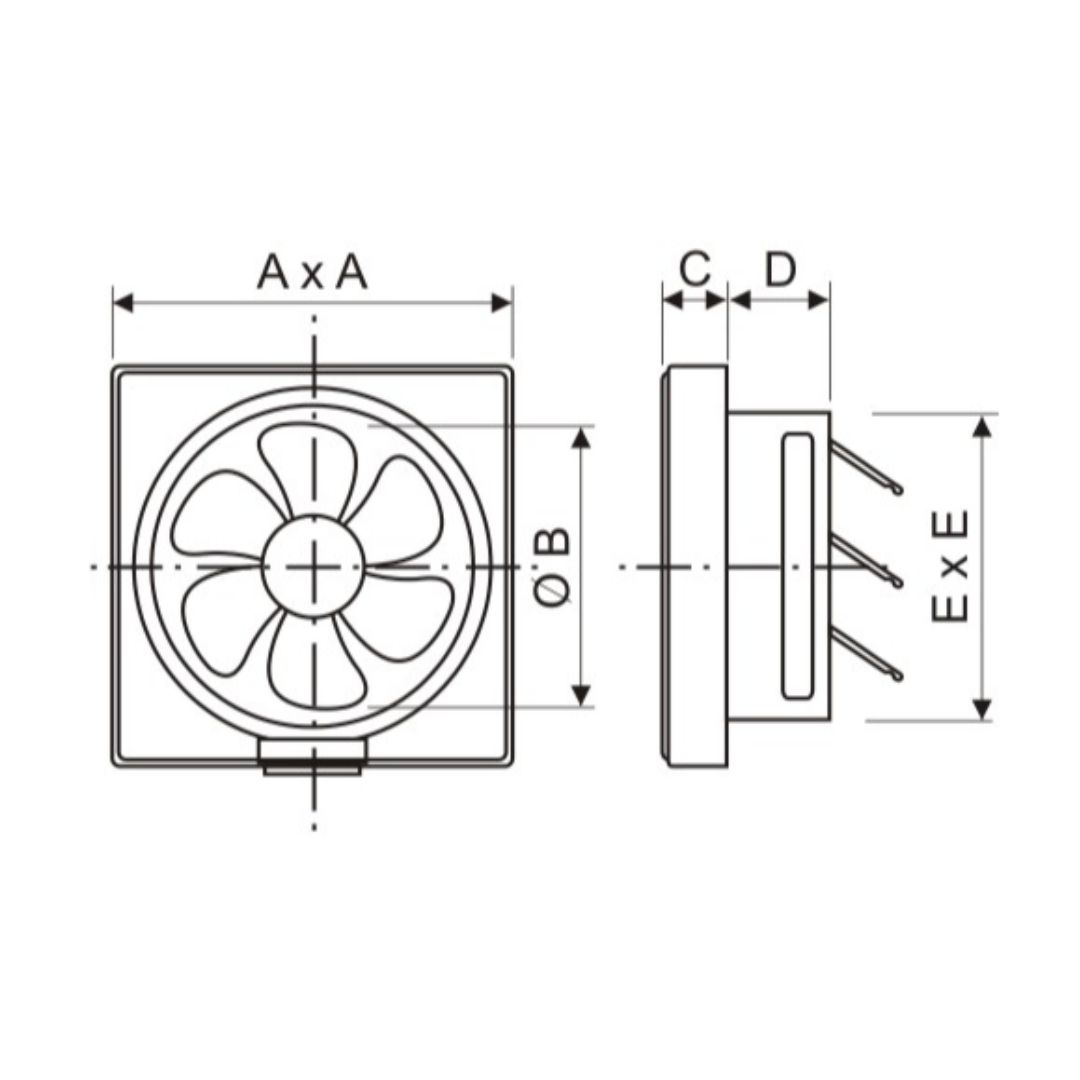

  • Dimensions (A x B x C x D x E): 234 x 160 x 32 x 82 x 192 mm

• ARL-APB20-4-30(J1):

  • Specification: 200 mm (8″)
  • Rated Power: 28 W
  • Nominal Air Volume: 486 m³/h
  • Speed: 1250 r/min
  • Noise: 42 dB(A)
  • Opening Size: 250×250 mm
  • Applicable Area: 20-25 m²
  • Quantity: 5 Pc
  • Gross Weight: 10 kg
  • Packing size (length, width and height): 600x325x333 mm
  • Energy Efficiency Rating: 3
  • Dimensions (A x B x C x D x E): 296 x 200 x 38 x 67 x 242 mm

• ARL-APB25-5-30(J1):

  • Specification: 250 mm (10″)
  • Rated Power: 36 W
  • Nominal Air Volume: 750 m³/h
  • Speed: 1250 r/min
  • Noise: 45 dB(A)
  • Opening Size: 300×300 mm
  • Applicable Area: 30-37 m²
  • Quantity: 5 Pc
  • Gross Weight: 12 kg
  • Packing size (length, width and height): 655x360x373 mm
  • Energy Efficiency Rating: 3
  • Dimensions (A x B x C x D x E): 338 x 240 x 39 x 74 x 292 mm
• ARL-APB30-6-30(J1):
  • Specification: 300 mm (12″)
  • Rated Power: 48 W
  • Nominal Air Volume: 1200 m³/h
  • Speed: 1000 r/min
  • Noise: 46 dB(A)
  • Opening Size: 350×350 mm
  • Applicable Area: 45-55 m²
  • Quantity: 5 Pc
  • Gross Weight: 14.5 kg
  • Packing size (length, width and height): 680x420x430 mm
  • 3C Certification: Yes
  • Energy Efficiency Rating: 2
  • Dimensions (A x B x C x D x E): 388 x 290 x 39 x 85 x 343 mm
