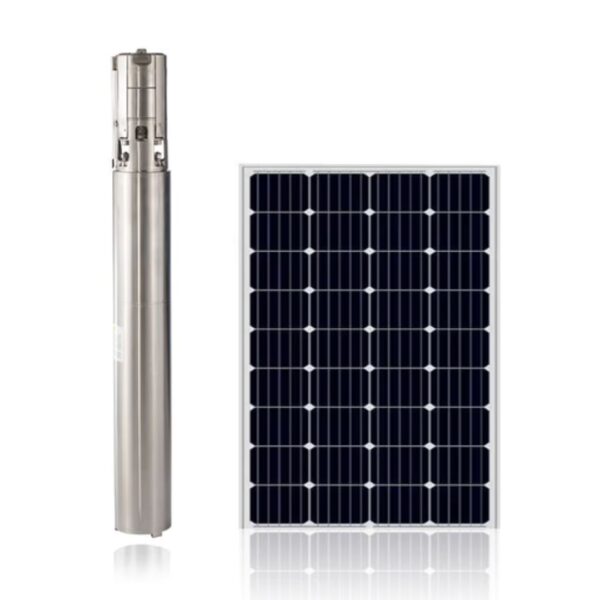

Solar Centrifugal Pump ARL-3SPWF2-80-A

Solar Centrifugal Pump ARL-3SPWF2-80-A

The Solar Centrifugal Pump ARL-3SPWF2-80-A is a powerful DC solar centrifugal pump, designed for efficient water transfer in various applications. It offers a maximum head of 80m and a flow rate of up to 2m³/h. Built with durable AISI 304 stainless steel and featuring an encapsulated water-filled motor, this pump is engineered for longevity and reliable performance. The external MPPT controller ensures optimal energy harvesting from solar panels and provides comprehensive protection features, making it a robust solution for off-grid pumping needs.

Key Features:

• High-Efficiency BLDC Motor: Maximizes water output with up to 98% efficiency.
• Durable Stainless Steel Construction: Crafted from AISI 304 stainless steel for excellent corrosion resistance and extended lifespan.
• External MPPT Controller: Optimizes solar power utilization with a maximum efficiency of 98% and includes a full suite of protective functions.
• Comprehensive Protection: Features active protection against dry-run (no additional float sensor required), reverse polarity, phase loss, over-voltage, low-voltage, over-current, over-load, over-power, over-temperature, and stall conditions, with error display.
• Encapsulated Water-Filled Motor: Eliminates pollution risk and ensures quiet operation.
• Soft Start Function: Contributes to a longer system life by reducing startup stress.
• Thrust Bearing System: Enhances motor durability and reliability.
• Integrated Display: Provides real-time information on voltage, current, power, and speed.
• Included Essentials: Comes with a 1.5m cable, an electric float switch for water tanks, and various adhesive tapes for secure installation.

Technical Specifications:

System Overview:

• Power: 1000W (1.34 HP)
• Max Head: 80m
• Max Flow: 2m³/h
• Recommended Max Input: 0.6 kW
• Minimum Well Diameter: 3 inches
• Pump Discharge: Rp 1.25
• System Efficiency: Max. 98%
• Warranty: 2 Years
• Certificates: CE, TUV, SUD, UL, ISO9001, ISO14001

Motor Data:

• Type: BLDC motor, Water-Filled, PMSM
• Material: AISI 304
• Bearing: Thrust bearing system
• Efficiency: Max. 85%
• Enclosure Class: IPX8
• Insulation Class: F
• Max Water Temp: 40°C
• Max Submersion: 150m
• Max. DC Current: 15A
• Max Voltage (VOC): 100V
• Optimal Voltage (Vmp): 40-90V
• DC Voltage Range: 90-110V
• Required Cooling Flow: 0.5L/s
• Max Speed (Plastic/SS304/Helical): 4500 RPM / 4000 RPM / 4000 RPM

Controller Data:

• Controller Type: External
• MPPT Efficiency: Max. 98%
• Enclosure Class: IP65
• Function: Voltage/current/power display
• Voltage: 40-90Vmp/100Voc
• Protection Type: Dry-Run, Reverse, Phase Loss, Over-Voltage, Low-Voltage, Over-Current, Over-Load, Over-Power, Over-Temperature, Stall, Error Display (all active).

Pump End:

• Impeller Material: Stainless Steel
• Impeller Type: Helical
• Pump Body: Stainless Steel 304
• Non-return valve
• Outlet Size: 0.75 inches

Physical Specifications (Pump + Controller):

• Gross Weight: 10.5 KG
• Net Weight: 8.5 KG
• Dimension: 61*36*16 MM

What’s Included:

• 1x 3-inch DC solar centrifugal pump with 1.5m cable
• 1x Pump controller with MPPT function
• 1x Electric float switch for water tank
• 1x Waterproof adhesive tape
• 1x PVC electrical adhesive tape
• 1x PTFE tape

Not Included (Self-Prepare):

• Suitable solar panels. (Recommend using 550W solar panels in series.)
• Stainless steel wire (safety cable) to hold pump in bore
• Poly pipe from pump to water tank
• Pump outlet joint connector
• Wire power cable (2 wires plus earth)
