Solar Centrifugal Pump ARL-4SPW1-26P-A

Solar Centrifugal Pump ARL-4SPW1-26P-A

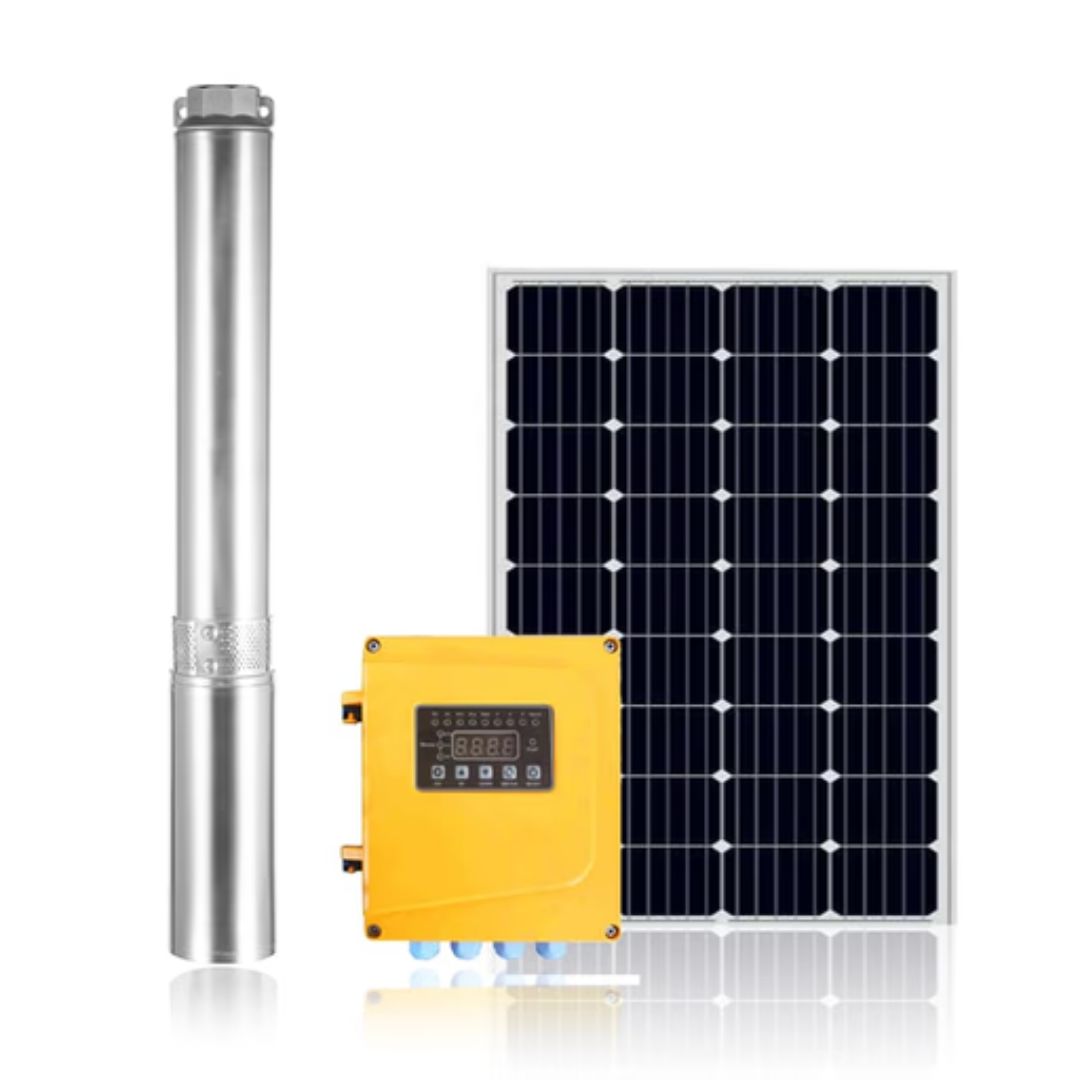

The Solar Centrifugal Pump ARL-4SPW1-26P-A is a high-performance solar centrifugal pump system, expertly designed for efficient and robust water transfer in diverse applications. It features a powerful 3000W BLDC water-filled motor and an external MPPT controller, enabling it to deliver a consistent maximum flow of 3.9m³/h and achieve an impressive maximum head of 320m. Constructed with a durable stainless steel 304 pump body and plastic impeller, this pump ensures longevity and reliable operation, complemented by integrated protection features for extended system life.

Key Features:

• High-Efficiency Motor: Equipped with a 3000W (4.02HP) BLDC water-filled PMSM motor for optimal performance and energy efficiency. The encapsulated design minimizes pollution risk.
• External MPPT Controller: Features an external controller with MPPT (Maximum Power Point Tracking) function, providing up to Max. 98% efficiency in power conversion and displaying real-time voltage, current, power, and speed.
• Superior Pumping Capabilities: Delivers a Max Flow of 3.9m³/h and an impressive Max Head of 320m, making it suitable for high-lift and demanding water transfer applications.
• Durable Construction: Made with a Stainless Steel AISI 304 pump body and motor material (316 optional), ensuring excellent corrosion resistance and extended lifespan.
• Comprehensive Protection System: Includes extensive safety features such as Dry-Run, Reverse, Phase Loss, Over-Voltage, Low-Voltage, Over-Current, Over-Load, Over-Power, Over-Temperature, and Stall protection. It also features error display and positive/negative pole reverse connection alarm.
• Extended System Life: Benefits from soft start running and a robust thrust bearing system, contributing to a longer operational lifespan.
• Versatile Power Input: Supports both AC and DC power types, with a DC Voltage Range of 300-380V and an AC Voltage Range of 300-380V.
• Quality Certifications: Adheres to high industry standards with CE, TUV, SUD, UL, ISO9001, and ISO14001 certifications.
• 2-Year Warranty: Provides a 2-year warranty for peace of mind and product support.
• Essential Inclusions: Comes with crucial accessories for immediate setup, including a 1.5m cable, an electric float switch for the water tank, waterproof adhesive tape, PVC electrical adhesive tape, and PTFE tape.

Technical Specifications:

• Power: 3000W (4.02HP)
• Power Type: AC/DC
• Max Head: 320m
• Max Flow: 3.9m³/h
• DC Voltage Range: 300-380V
• AC Voltage Range: 300-380V
• Outlet Size: 2 inches
• Impeller Material: Plastic
• Pump Body: Stainless Steel 304
• Impeller Type: Centrifugal
• Controller Type: External, MPPT Function, Voltage/Current/Power Display
• Controller Enclosure Class: IP65
• Motor Material: AISI 304
• Motor Type: BLDC motor, Water-Filled, PMSM
• Motor Feature: Encapsulated water filled
• Motor Bearing: Thrust bearing system
• Insulation Class (Motor): F
• Max Current (Motor): Max. DC 15A
• Max Submersion (Motor): Max. 150m
• Water Temperature (Motor): Max. 40°C
• Efficiency (Motor): Max. 85%
• Efficiency (System): Max. 98%
• Efficiency (Controller): Max. 98%
• Enclosure Class (Motor): IPX8
• Max Voltage (Motor):): DC Max. VOC 100V
• Optimal Voltage (Motor): DC Best. Vmp 40-90V
• Max Speed (Plastic Impeller): 4500 RPM
• Max Speed (SS304/Helical): 4000 RPM
• Required Cooling Flow (Motor): 0.5L/s
• Gross Weight (Pump+Controller): 10.5 KG
• Net Weight (Pump+Controller): 8.5 KG
• Dimension (Pump+Controller): 61*36*16 MM
• Recommend Max Input: 0.6KW
• Minimum Well Diameter: Min 3inch
• Pump Discharge: Rp 1.25
• Warranty: 2 Years
• Certificates: CE, TUV, SUD, UL, ISO9001, ISO14001

What’s Included:

• 1* 3inch DC solar centrifugal pump with 1* 1.5m cable
• 1* Pump controller with MPPT function
• 1* Electric float switch for water tank
• 1* Waterproof adhesive tape
• 1* PVC electrical adhesive tape
• 1* PTFE tape

Not Included (Self-Prepare):

• Suitable solar panels. (Recommended using 550W solar panels in series)
• A stainless steel wire (safety cable) to hold pump in bore.
• Poly pipe from pump to water tank.
• Pump outlet joint connector.
• Wire power cable (2 wires plus earth).

Notes:

• The Controller is IP65 Rated; however, it is recommended that it is not mounted in direct sunlight.
• VOC (V) refers to Volts Open Circuit (nothing connected); Vmp (V) refers to Volts Maximum Power Point under load.
• Exceeding limits may cause serious harm or irreparable damage.
