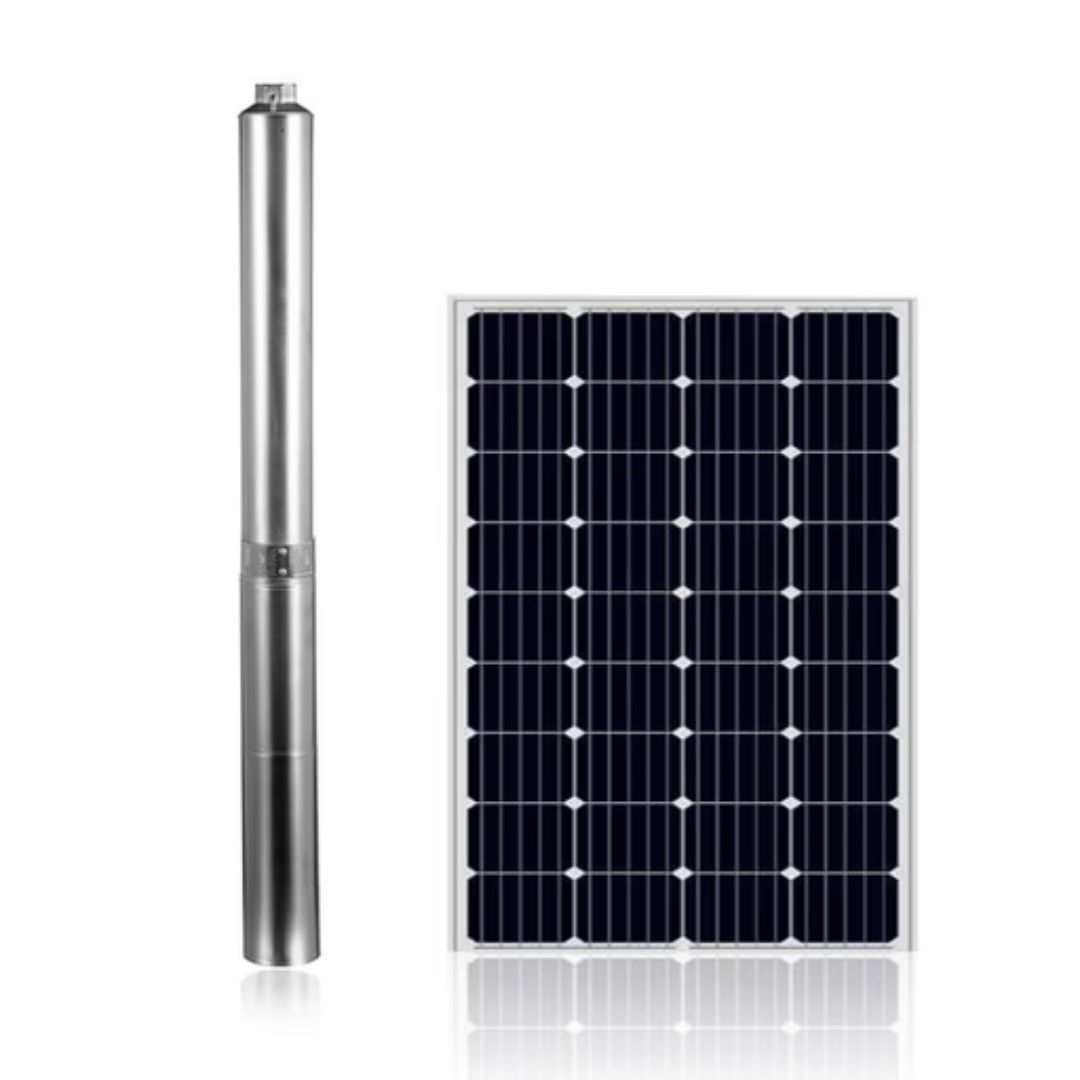

Solar Centrifugal Water Pump ARL-4SPN4-8P

Solar Centrifugal Water Pump ARL-4SPN4-8P

The Solar Centrifugal Water Pump ARL-4SPN4-8P is a high-performance and reliable solution for diverse water pumping applications. Driven by a powerful 2200W (2.95 HP) BLDC motor with an integrated MPPT controller, this pump achieves an impressive maximum head of 142 meters and a maximum flow rate of 9.4 cubic meters per hour. Crafted from durable AISI 304 stainless steel, it features an encapsulated water-filled motor for environmentally safe operation and a soft start function to enhance system longevity. This pump is designed for robust performance and includes comprehensive protection features for reliable, long-term use.

Key Features:

• High-Efficiency BLDC Motor: Features a powerful 2200W (2.95 HP) Brushless DC motor for optimal performance.
• Internal MPPT Controller: Integrated controller with a maximum MPPT efficiency of 98%, maximizing solar energy utilization.
• Superior Performance: Delivers a maximum head of 142 meters and a maximum flow rate of 9.4 cubic meters per hour.
• Durable Construction: Made with AISI 304 stainless steel for the pump body and motor, ensuring excellent corrosion resistance.
• Eco-Friendly Design: Encapsulated water-filled motor design eliminates pollution risks, providing clean water.
• Extended Lifespan: Soft start running functionality reduces stress on the system, contributing to a longer operational life.
• Comprehensive Protection: Equipped with active protection against dry-run (no additional float sensor required), reverse connection, phase loss, over-voltage, low-voltage, over-current, over-load, over-power, over-temperature, and stall conditions.
• Thrust Bearing System: Ensures smooth and reliable operation of the motor.
• Wide DC Voltage Range: Operates efficiently within a DC voltage range of 60-380V.
• Real-time Display: Provides clear display of voltage, current, power, and speed.
• Quality Certifications: Holds CE, TUV, SUD, UL, ISO9001, and ISO14001 certifications.
• Warranty: Supported by a 2-year warranty.
• Included Components: 1* 3-inch DC solar centrifugal pump with 1* 1.5m cable, 1* pump controller with MPPT function, 1* electric float switch for water tank, 1* waterproof adhesive tape, 1* PVC electrical adhesive tape, and 1* PTFE tape.

Technical Specifications:

• Power: 2200W / 2.95HP
• Power Type: DC
• Max Head: 142m
• Max Flow: 9.4m³/h
• DC Voltage Range: 60-380V
• AC Voltage Range: N/A
• Outlet Size: 2 inches
• Pump Length: 0.79m
• Impeller Material: Plastic
• Impeller Type: Centrifugal
• Pump Body Material: Stainless Steel 304 (AISI 304)
• Motor Type: Water-Filled, PMSM (Permanent Magnet Synchronous Motor), BLDC motor
• Motor Material: AISI 304
• Controller Type: Internal
• Controller Voltage: 40-90Vmp/100Voc
• MPPT Efficiency: Max. 98%
• Controller Enclosure Class: IP65
• Motor Enclosure Class: IPX8
• Insulation Class: F
• Max Voltage (Motor): DC Max. VOC 100V
• Optimal Voltage (Motor): DC Best. Vmp 40-90V
• Max Speed (Plastic Impeller): 4500 RPM
• Max Speed (SS304/Helical Impeller): 4000 RPM
• Max Current (Motor): DC 15A
• Max Submersion: 150m
• Max Water Temperature: 40°C
• Motor Efficiency: Max. 85%
• System Efficiency (Pump): Max. 98%
• Recommend Max Input (System Overview): Max. 0.6kW
• Minimum Well Diameter: 3 inches
• Pump Discharge: Rp 1.25
• Required Cooling Flow: 0.5L/s (for motor)
• System Reference: Recommended using 550W solar panels in series.
• Gross Weight (Pump + Controller): 10.5 KG
• Net Weight (Pump + Controller): 8.5 KG
• Dimension (Pump + Controller): 61mm * 36mm * 16mm
• Warranty: 2 Years
• Protection Types (Controller): Dry-Run (On), Reverse (On), Phase Loss (On), Over-Voltage (On), Low-Voltage (On), Over-Current (On), Over-Load (On), Over-Power (On), Over-Temperature (On), Stall (On).
