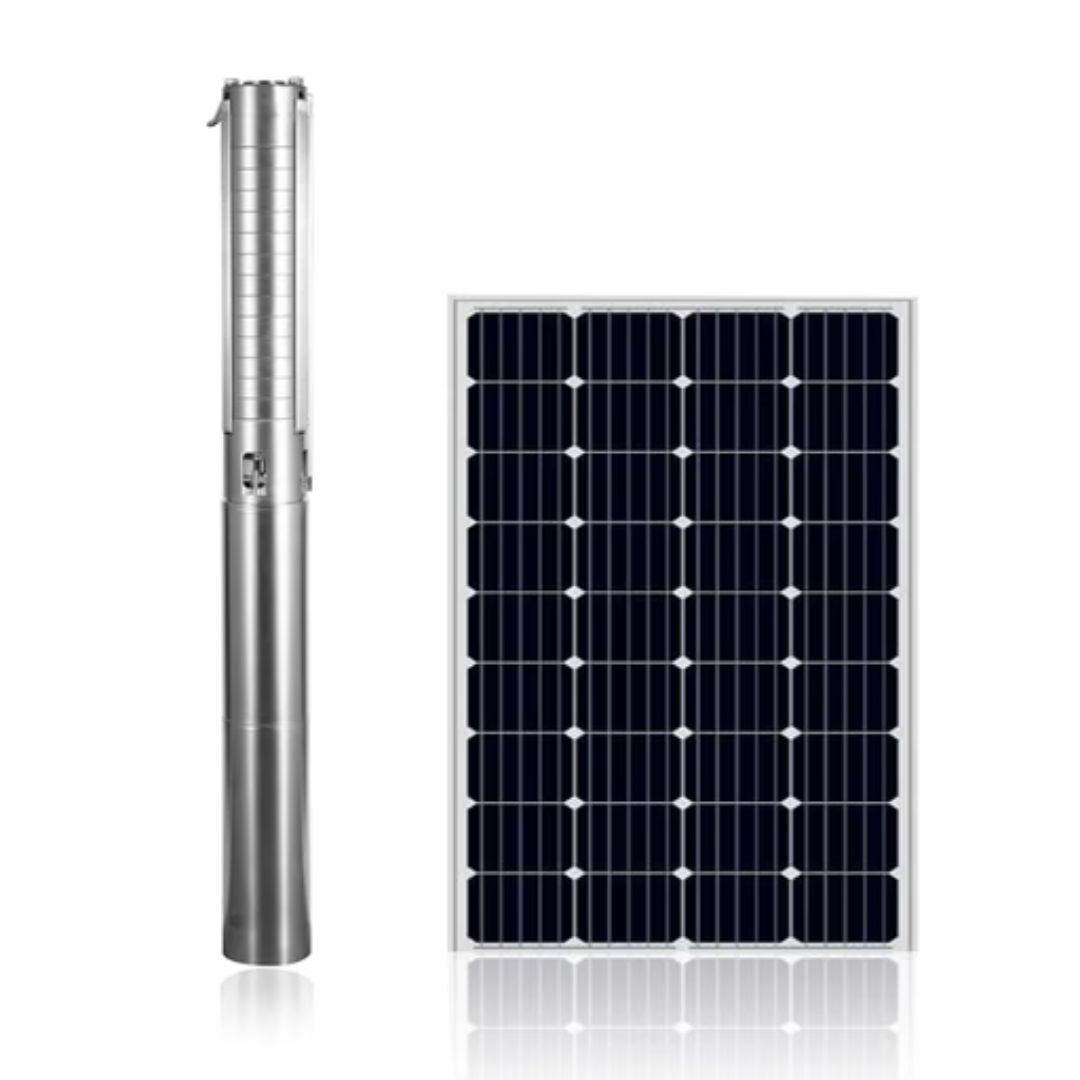

Solar Centrifugal Water Pump ARL-4SPN5-10-A

Solar Centrifugal Water Pump ARL-4SPN5-10-A

The Solar Centrifugal Water Pump ARL-4SPN5-10-A is a high-performance and reliable solution for various water pumping needs. This powerful pump features a 2200W (2.95 HP) BLDC motor with an integrated MPPT controller, ensuring maximum power efficiency of up to 98%. It’s designed to deliver an impressive maximum head of 112 meters and a flow rate of 9.7 cubic meters per hour. Crafted from durable AISI 304 stainless steel, the pump boasts an encapsulated water-filled motor for environmental safety and extended system life through its soft start functionality. With comprehensive protection features, this pump provides a robust and sustainable water management solution.

Key Features:

• High-Efficiency BLDC Motor: Equipped with a 2200W (2.95 HP) Brushless DC motor for powerful and energy-efficient operation.
• Internal MPPT Controller: Integrated controller with a maximum MPPT efficiency of 98%, maximizing solar energy utilization.
• Superior Pumping Performance: Achieves a maximum head of 112 meters and a maximum flow rate of 9.7 cubic meters per hour.
• Durable Stainless Steel Construction: Pump body and impeller material are made of AISI 304 stainless steel, ensuring excellent corrosion resistance.
• Eco-Friendly Design: Encapsulated water-filled motor design prevents pollution risks, providing clean water.
• Extended Lifespan: Soft start running functionality reduces stress on the system, contributing to a longer operational life.
• Comprehensive Protection: Active safeguards against dry-run (no additional float sensor required), reverse connection, phase loss, over-voltage, low-voltage, over-current, over-load, over-power, over-temperature, and stall conditions.
• Thrust Bearing System: Ensures smooth and reliable operation of the motor.
• Wide Voltage Compatibility: Supports a DC voltage range of 60-450V and an AC voltage range of 150-240V.
• Real-time Monitoring: Displays voltage, current, power, and speed for easy monitoring.
• Certified Quality: Holds CE, TUV, SUD, UL, ISO9001, and ISO14001 certifications.
• Warranty: Supported by a 2-year warranty.
• What’s Included:
  • 1* 3-inch DC solar centrifugal pump with 1* 1.5m cable
  • 1* Pump controller with MPPT function
  • 1* Electric float switch for water tank
  • 1* Waterproof adhesive tape
  • 1* PVC electrical adhesive tape
  • 1* PTFE tape
• Items Not Included (Self-Prepare):
  • Suitable solar panels
  • A stainless steel wire (safety cable) to hold pump in bore
  • Poly pipe from pump to water tank
  • Pump outlet joint connector
  • Wire power cable (2 wires plus earth)

Technical Specifications:

• Power: 2200W / 2.95HP
• Power Type: AC/DC
• Max Head: 112m
• Max Flow: 9.7m³/h
• DC Voltage Range: 60-450V
• AC Voltage Range: 150-240V
• Outlet Size: 1.25 inches
• Pump Length: N/A
• Impeller Material: Stainless Steel
• Impeller Type: Centrifugal
• Pump Body Material: Stainless Steel 304 (AISI 304)
• Motor Type: Water-Filled, PMSM (Permanent Magnet Synchronous Motor), BLDC motor
• Motor Material: AISI 304
• Controller Type: Internal
• Controller Voltage: 40-90Vmp/100Voc
• MPPT Efficiency: Max. 98%
• Controller Enclosure Class: IP65 (Note: Recommended not to mount in direct sunlight)
• Motor Enclosure Class: IPX8
• Insulation Class: F
• Max Voltage (Motor): DC Max. VOC 100V (VOC: Volts open circuit nothing connected)
• Optimal Voltage (Motor): DC Best. Vmp 40-90V (Vmp: Volts maximum power point under load)
• Max Speed (Plastic Impeller): 4500 RPM
• Max Speed (SS304 Impeller): 4000 RPM
• Max Speed (Helical Impeller): 4000 RPM
• Max Current (Motor): DC 15A
• Max Submersion: 150m
• Max Water Temperature: 40°C
• Motor Efficiency: Max. 85%
• System Efficiency (Pump): Max. 98%
• Recommend Max Input (System Overview): Max. 0.6kW
• Minimum Well Diameter: 3 inches
• Pump Discharge: Rp 1.25
• Required Cooling Flow: 0.5L/s (for motor)
• System Reference: Recommended using 550W solar panels in series. Exceeding limits may cause serious harm or irreparable damage.
• Gross Weight (Pump + Controller): 10.5 KG
• Net Weight (Pump + Controller): 8.5 KG
• Dimension (Pump + Controller): 61mm * 36mm * 16mm
• Warranty: 2 Years
• Protection Types (Controller): Dry-Run (On), Reverse (On), Phase Loss (On), Over-Voltage (On), Low-Voltage (On), Over-Current (On), Over-Load (On), Over-Power (On), Over-Temperature (On), Stall (On).
