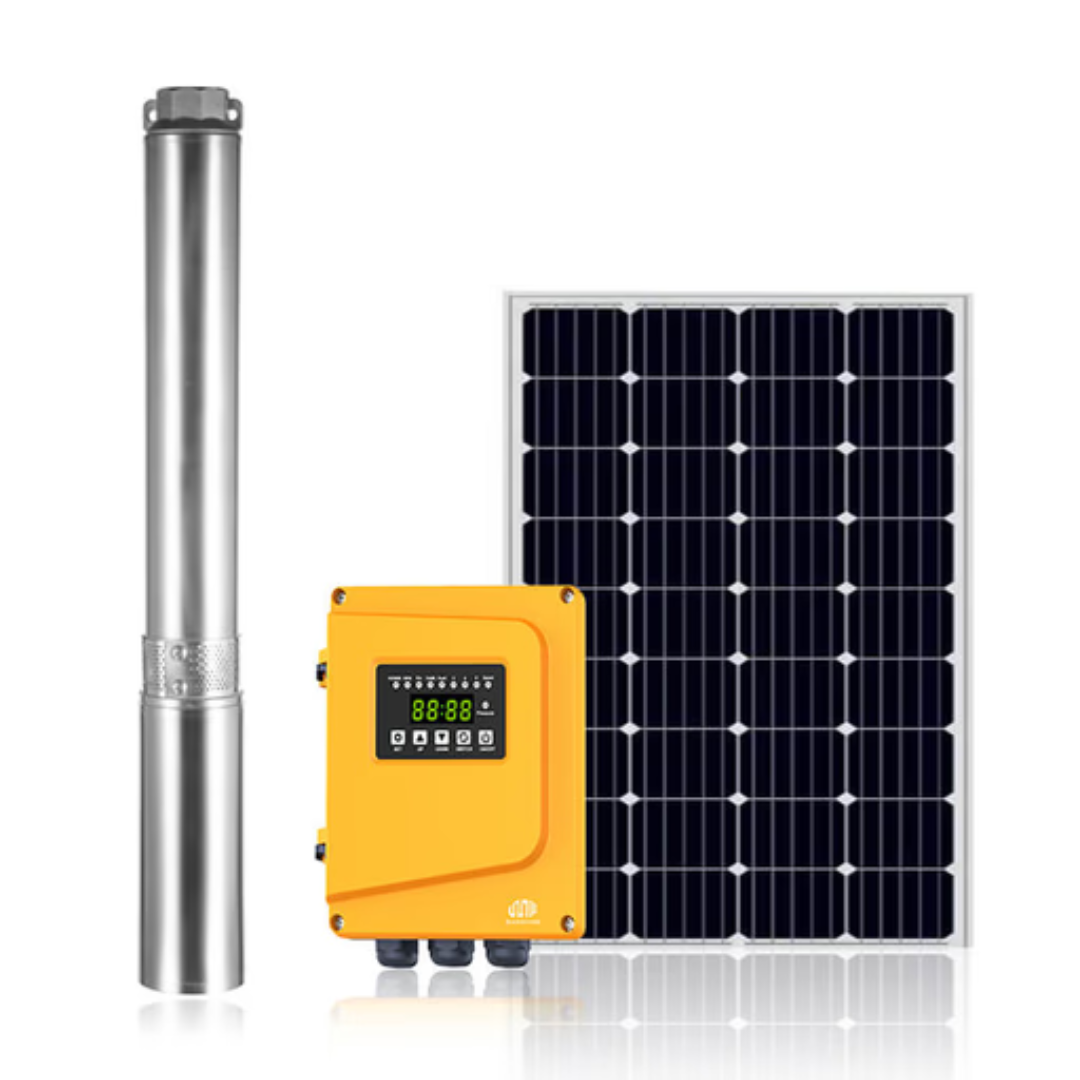

Solar-Powered Water Pump ARL-4SPW2-13P

Solar-Powered Water Pump ARL-4SPW2-13P

Solar-Powered Water Pump ARL-4SPW2-13P. The ARL-4SPW2-13P is a high-performance DC solar submersible pump designed for applications requiring a significant pumping depth, such as garden irrigation or rural water supply. It features a powerful water-filled, brushless DC motor and a centrifugal impeller, and it is capable of operating with a maximum head of 198m and a maximum flow of 5.7 m³/h.

Key Features

• High Performance: Achieves a maximum head of 198m and a maximum flow of 5.7 m³/h.
• Durable Construction: The pump body is made from Stainless Steel 304, while the impeller is made of plastic.
• High-Efficiency Motor: Utilizes an encapsulated, water-filled BLDC motor with a thrust bearing system.
• External Controller: Comes with an external controller that has an MPPT efficiency of up to 98%.
• Comprehensive Protection: The controller offers protection against dry-run, reverse polarity, phase loss, over-voltage, low-voltage, over-current, and over-load.
• Safety Features: Includes positive and negative pole reverse connection alarms.

Technical Specifications

• Model: ARL-4SPW2-13P
• Power: 2200W (2.95HP)
• Power Type: DC
• Max Head: 198m
• Max Flow: 5.7 m³/h
• DC Voltage Range: 60-380V
• Pump Discharge: 2 inches
• Minimum Well Diameter: 3 inches
• Impeller Material: Plastic
• Pump Body Material: Stainless Steel 304
• Motor Type: Water-Filled, PMSM
• Controller Type: External
• Motor Enclosure Class: IPX8
• Controller Enclosure Class: IP65
• Max. Water Temp: 40°C
• Submersion: Max. 150m
• Efficiency: Max. 98%
• Gross Weight: 10.5 KG
• Net Weight: 8.5 KG
• Length: 0.85
• Certificates: CE, TUV, SUD, UL, ISO9001, ISO14001

What’s Included in the Kit

• 1 x 3-inch DC solar centrifugal pump with a 1.5m cable
• 1 x Pump controller with MPPT function
• 1 x Electric float switch for water tank
• 1 x Waterproof adhesive tape
• 1 x PVC electrical adhesive tape
• 1 x PTFE tape

Items Not Included (Self-Prepare)

• Suitable solar panels.
• A stainless steel wire (safety cable) to hold the pump in the bore.
• Poly pipe from the pump to the water tank.
• Pump outlet joint connector.
• Wire power cable (2 wires plus earth).

Important Notes

• It is recommended to use 550W solar panels in series.
• The controller is IP65 rated, but it is recommended not to mount it in direct sunlight.
• Exceeding operational limits may cause serious harm or irreparable damage.
