Solar-Powered Water Well Pump ARL-4SPW2-13

Solar-Powered Water Well Pump ARL-4SPW2-13

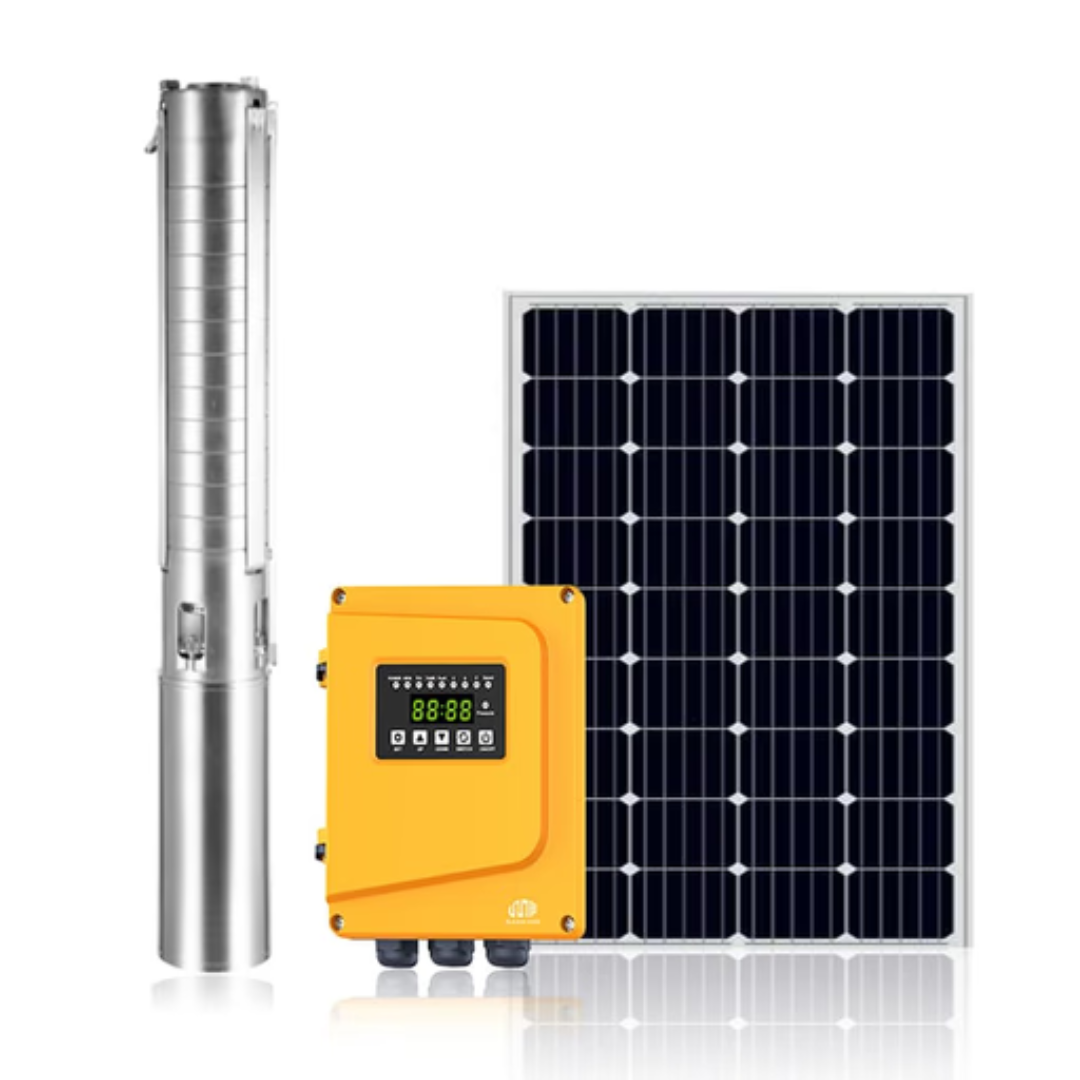

Solar-Powered Water Well Pump ARL-4SPW2-13. The ARL-4SPW2-13 is a powerful DC solar submersible pump designed for water supply in remote or rural areas. It features a water-filled, brushless DC motor and is constructed with durable Stainless Steel 304 for both the pump body and impeller. The system includes an external controller with MPPT technology and a comprehensive suite of protective functions, ensuring efficient and safe operation.

Key Features

• Powerful Performance: Delivers a maximum head of 130m and a maximum flow of 5.5m³/h.
• High-Efficiency Motor: Uses a BLDC high-efficiency motor with an encapsulated, water-filled design to prevent pollution.
• Robust Construction: The pump body and impeller are made from Stainless Steel 304 for durability.
• External Controller: Comes with an external controller that displays voltage, current, power, and speed.
• Advanced Protection: The system includes a full range of protective functions, such as dry-run, over-voltage, low-voltage, over-current, phase loss, and over-temperature protection.
• High Efficiency: The system’s overall efficiency is up to 98% with an MPPT efficiency of 98%.
• Soft Start: The soft start feature extends the system’s lifespan.

Technical Specifications

• Model: ARL-4SPW2-13
• Power: 2200W / 2.95HP
• Power Type: DC
• Motor: Water-Filled, PMSM, BLDC motor
• Max Head: 130m
• Max Flow: 5.5 m³/h
• DC Voltage Range: 60-380V
• Recommended Max Input: 0.6kW
• Minimum Well Diameter: 3 inches
• Submersion: Max. 150m
• Enclosure Class (Motor): IPX8
• Water Temp: Max. 40°C
• Pump Body & Impeller Material: Stainless Steel 304
• Controller Type: External
• Controller Enclosure Class: IP65
• System Weight (Pump + Controller): Gross 10.5 kg, Net 8.5 kg
• Dimensions (Packaging): 61 x 36 x 16 mm

What’s Included in the Kit

• 1 x 3-inch DC solar centrifugal pump with a 1.5m cable
• 1 x Pump controller with MPPT function
• 1 x Electric float switch for water tank
• 1 x Waterproof adhesive tape
• 1 x PVC electrical adhesive tape
• 1 x PTFE tape

Items Not Included (Self-Prepare)

• Suitable solar panels.
• A stainless steel wire (safety cable) to hold the pump in the bore.
• Poly pipe from the pump to the water tank.
• Pump outlet joint connector.
• Wire power cable (2 wires plus earth).

Important Notes

• It is recommended to use 550W solar panels in series.
• The controller is IP65 rated, but it is recommended not to mount it in direct sunlight.
• Exceeding operational limits may cause serious harm or irreparable damage.
