Solar-Powered Water Well Pump Kit ARL-4SPW2-16

Solar-Powered Water Well Pump Kit ARL-4SPW2-16

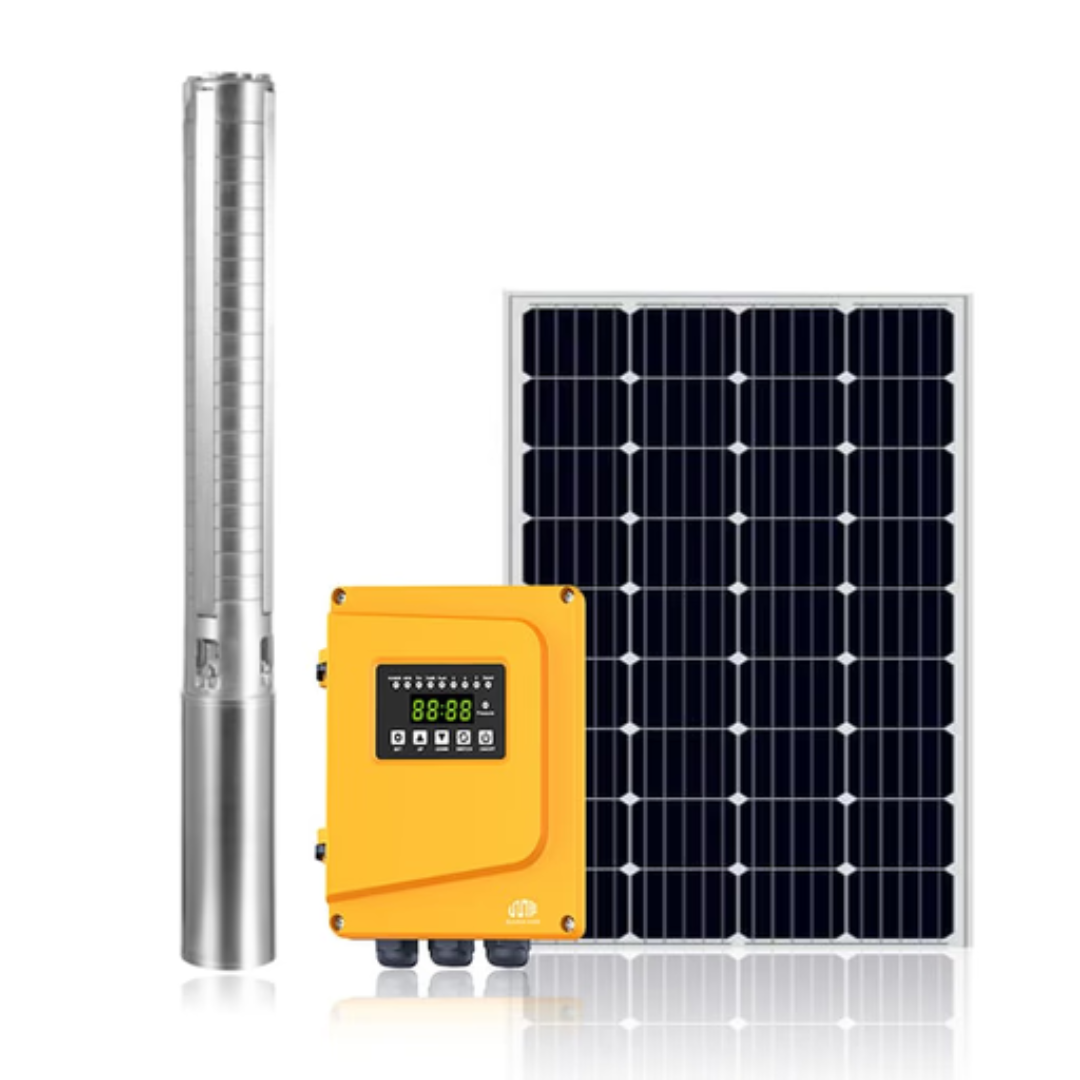

Solar-Powered Water Well Pump Kit ARL-4SPW2-16. The ARL-4SPW2-16 is a robust 2500W DC solar submersible pump designed for reliable and efficient water supply, particularly for construction sites. This comprehensive kit includes a centrifugal pump, an external controller with a Max. 98% MPPT Efficiency, and essential accessories for setup. Built with durable AISI 304 stainless steel and featuring an advanced encapsulated water-filled BLDC motor, this system ensures a no-pollution operation. With its soft start function and a thrust bearing system, the ARL-4SPW2-16 is engineered for a longer service life and provides a powerful, sustainable solution for your pumping needs.

Key Features:

• High-efficiency 2500W DC submersible pump with a Max. 5.8 m³/h flow and 158m Max Head.
• Pump body and impeller made from durable Stainless Steel 304.
• BLDC high-efficiency motor with an encapsulated water-filled design to prevent pollution.
• External controller with a Voltage/Current/Power/Speed display and MPPT function with up to 98% efficiency.
• Comprehensive protection features including dry-run, reverse polarity, phase loss, over-voltage, low-voltage, over-current, and over-load protection.
• IP65 rated controller and IPX8 rated motor for high-level water and dust protection.
• Thrust bearing system and soft start function to extend the system’s life.
• Powered by DC power only.
• Positive and negative pole reverse connection alarm.
• Dry protection (no additional float sensor required).

Technical Specifications:

• Power: 2500W / 3.35 HP
• Max Head: 158m
• Max Flow: 5.8 m³/h
• DC Voltage Range: 60-380V
• Controller Voltage: 40-90Vmp/100Voc
• Max DC Current: 15A
• Max Submersion: 150m
• Min Well Diameter: 3 inches
• Outlet Size: 1.25 inches
• Required Cooling Flow: 0.5L/s
• Dimensions (Package): 61 x 36 x 16 mm
• Gross Weight: 10.5 kg
• Net Weight: 8.5 kg
• Certifications: ISO9001, CE, ISO14001, TUV, SUD, UL

What’s Included:

• 1x 3-inch DC solar centrifugal pump with a 1.5m cable
• 1x Pump controller with MPPT function
• 1x Electric float switch for water tank
• 1x Waterproof adhesive tape
• 1x PVC electrical adhesive tape
• 1x PTFE tape

Not Included (Self-Prepare):

• Suitable solar panels
• A stainless steel wire (safety cable) to hold the pump in the bore
• Poly pipe from the pump to the water tank
• Pump outlet joint connector
• Wire power cable (2 wires plus earth)

Notes:

• It is recommended to use 550W solar panels in series.
• The controller is IP65 Rated, but it is recommended that it is not mounted in direct sunlight.
• VOC (Voc​) stands for Volts open circuit (nothing connected) and Vmp (Vmp​) stands for Volts maximum power point under load.
• Exceeding limits may cause serious harm or irreparable damage.
