Solar Submersible Pump ARL-4SP3-3

SKU: ARL-4SP3-3 Categories: Solar Pumps, Submersible Pumps

Description
Shipping & Delivery

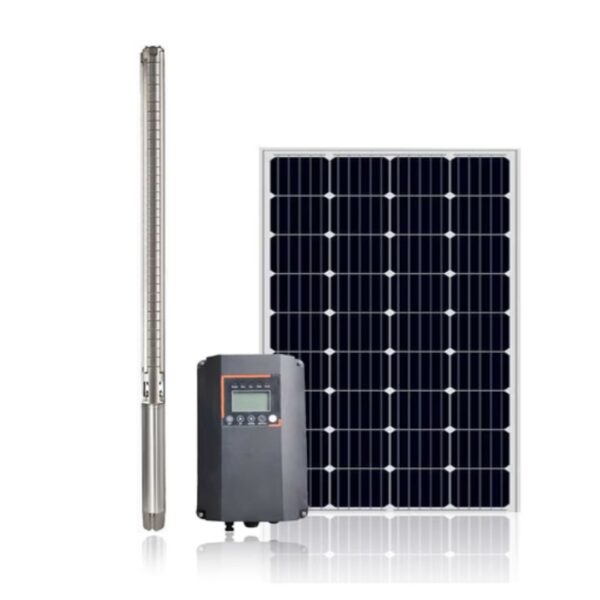

Solar Submersible Pump ARL-4SP3-3

The Solar Submersible Pump ARL-4SP3-3 is an efficient and reliable solar submersible pump, ideal for various water pumping needs. Equipped with a 600W BLDC motor and an internal MPPT controller, this pump delivers consistent performance with a maximum head of 30 meters and a flow rate of 6m³/h. Its construction features durable Stainless Steel 304 for the impeller and pump body, complemented by an IP65 rated controller and IPX8 rated motor, ensuring longevity and dependable operation.

Key Features:

High-efficiency BLDC Motor with Max. 98% MPPT Efficiency
Internal Controller with comprehensive protection features (Dry-Run, Reverse, Phase Loss, Over-Voltage, Low-Voltage, Over-Current, Over-Load, Over-Power, Over-Temperature, Stall)
Durable Stainless Steel 304 construction for impeller and pump body
Encapsulated water-filled motor for pollution-free operation
Soft start running for extended system life
Thrust bearing system
Positive and negative pole reverse connection alarm
Voltage/Current/Power/Speed Display
IP65 rated controller and IPX8 rated motor
Wide range of accessories included for easy installation

Technical Specifications:

Power: 600W / 0.80HP
Max Head: 30m
Max Flow: 6m³/h
Controller Type: Internal with MPPT function
Voltage: 40-90Vmp/100Voc (Controller), 40-90V Optimal Vmp (Motor), Max. VOC 100V (Motor)
DC Voltage Range: 60-450V
AC Voltage Range: 90-240V
Outlet Size: 1.25 inches
Pump Length: 0.85m
Impeller Material: Stainless Steel 304
Pump Body Material: Stainless Steel 304
Motor Type: Water-Filled, PMSM BLDC motor
Motor Material: AISI 304
Max Current: DC 15A
Max Submersion: 150m
Max Water Temperature: 40°C
Motor Efficiency: Max. 85%
Insulation Class: F
Max Speed (Plastic/SS304/Helical): 4500 RPM / 4000 RPM / 4000 RPM
Required Cooling Flow: 0.5L/s
Enclosure Class (Controller): IP65
Enclosure Class (Motor): IPX8
Warranty: 2 Years
Gross Weight: 10.5 KG
Net Weight: 8.5 KG
Dimension: 61*36*16 MM
Certificates: CE, TUV, SUD, UL, ISO9001, ISO14001

What’s Included:

1x 3inch DC solar centrifugal pump with 1x 1.5m cable
1x Pump controller with MPPT function
1x Electric float switch for water tank
1x Waterproof adhesive tape
1x PVC electrical adhesive tape
1x PTFE tape

Not Included (Self-Prepare):

Suitable solar panels (Recommend using 550W solar panels in series)
Stainless steel wire (safety cable) to hold pump in bore
Poly pipe from pump to water tank
Pump outlet joint connector
Wire power cable (2 wires plus earth)
