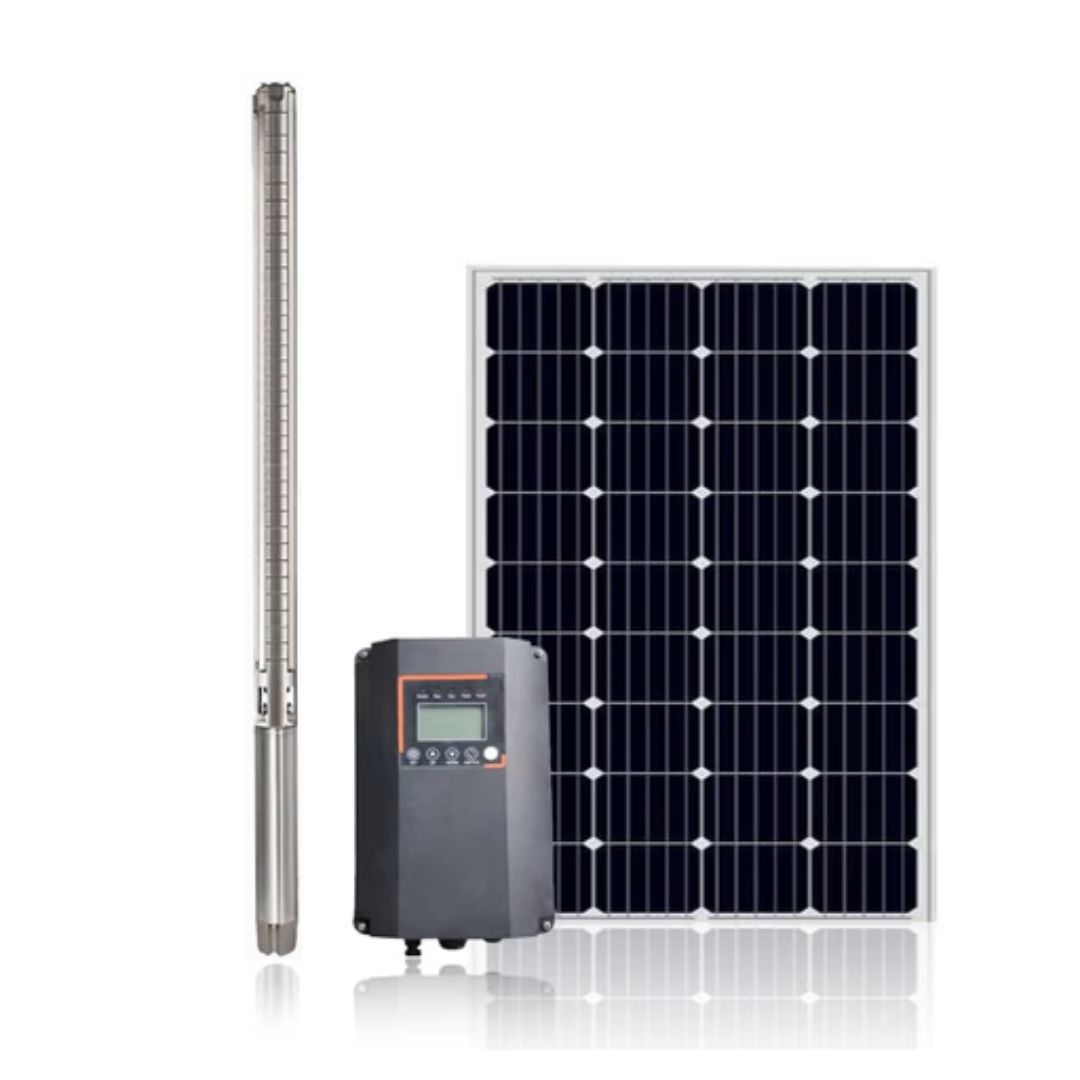

Solar Submersible Pump ARL-4SP3-33

Solar Submersible Pump ARL-4SP3-33

The Solar Submersible Pump ARL-4SP3-33 is a powerful and highly efficient solar submersible pump, engineered for demanding water pumping applications. Driven by a 5100W BLDC motor and featuring an external MPPT controller, this pump offers exceptional performance with a maximum head of 340 meters and a flow rate of 6.9m³/h. Its robust construction, incorporating Stainless Steel 304 for the impeller and pump body, along with an IP65 rated controller and IPX8 rated motor, ensures durability and reliable operation in challenging environments.

Key Features:

• High-efficiency BLDC Motor with Max. 98% MPPT Efficiency
• External Controller with voltage/current/power display and comprehensive protection features (Dry-Run, Reverse, Phase Loss, Over-Voltage, Low-Voltage, Over-Current, Over-Load, Over-Power, Over-Temperature, Stall, Error Display)
• Durable Stainless Steel 304 construction for impeller and pump body
• Encapsulated water-filled motor for pollution-free operation
• Soft start running for extended system life
• Thrust bearing system
• Positive and negative pole reverse connection alarm
• IP65 rated controller and IPX8 rated motor
• Wide range of accessories included for easy installation

Technical Specifications:

• Power: 5100W / 6.84HP
• Max Head: 340m
• Max Flow: 6.9m³/h
• Controller Type: External with MPPT function
• Voltage: 40-90Vmp/100Voc (Controller), 40-90V Optimal Vmp (Motor), Max. VOC 100V (Motor)
• DC Voltage Range: 60-450V
• AC Voltage Range: 90-240V
• Outlet Size: 1.25 inches
• Pump Length: 1.2m
• Impeller Material: Stainless Steel 304
• Pump Body Material: Stainless Steel 304
• Motor Type: Water-Filled, PMSM BLDC motor
• Motor Material: AISI 304
• Max Current: DC 15A
• Max Submersion: 150m
• Max Water Temperature: 40°C
• Motor Efficiency: Max. 85%
• Insulation Class: F
• Max Speed (Plastic/SS304/Helical): 4500 RPM / 4000 RPM / 4000 RPM
• Required Cooling Flow: 0.5L/s
• Enclosure Class (Controller): IP65
• Enclosure Class (Motor): IPX8
• Warranty: 2 Years
• Gross Weight: 10.5 KG
• Net Weight: 8.5 KG
• Dimension: 61*36*16 MM
• Certificates: CE, TUV, SUD, UL, ISO9001, ISO14001

What’s Included:

• 1x 3inch DC solar centrifugal pump with 1x 1.5m cable
• 1x Pump controller with MPPT function
• 1x Electric float switch for water tank
• 1x Waterproof adhesive tape
• 1x PVC electrical adhesive tape
• 1x PTFE tape

Not Included (Self-Prepare):

• Suitable solar panels (Recommend using 550W solar panels in series)
• Stainless steel wire (safety cable) to hold pump in bore
• Poly pipe from pump to water tank
• Pump outlet joint connector
• Wire power cable (2 wires plus earth)
