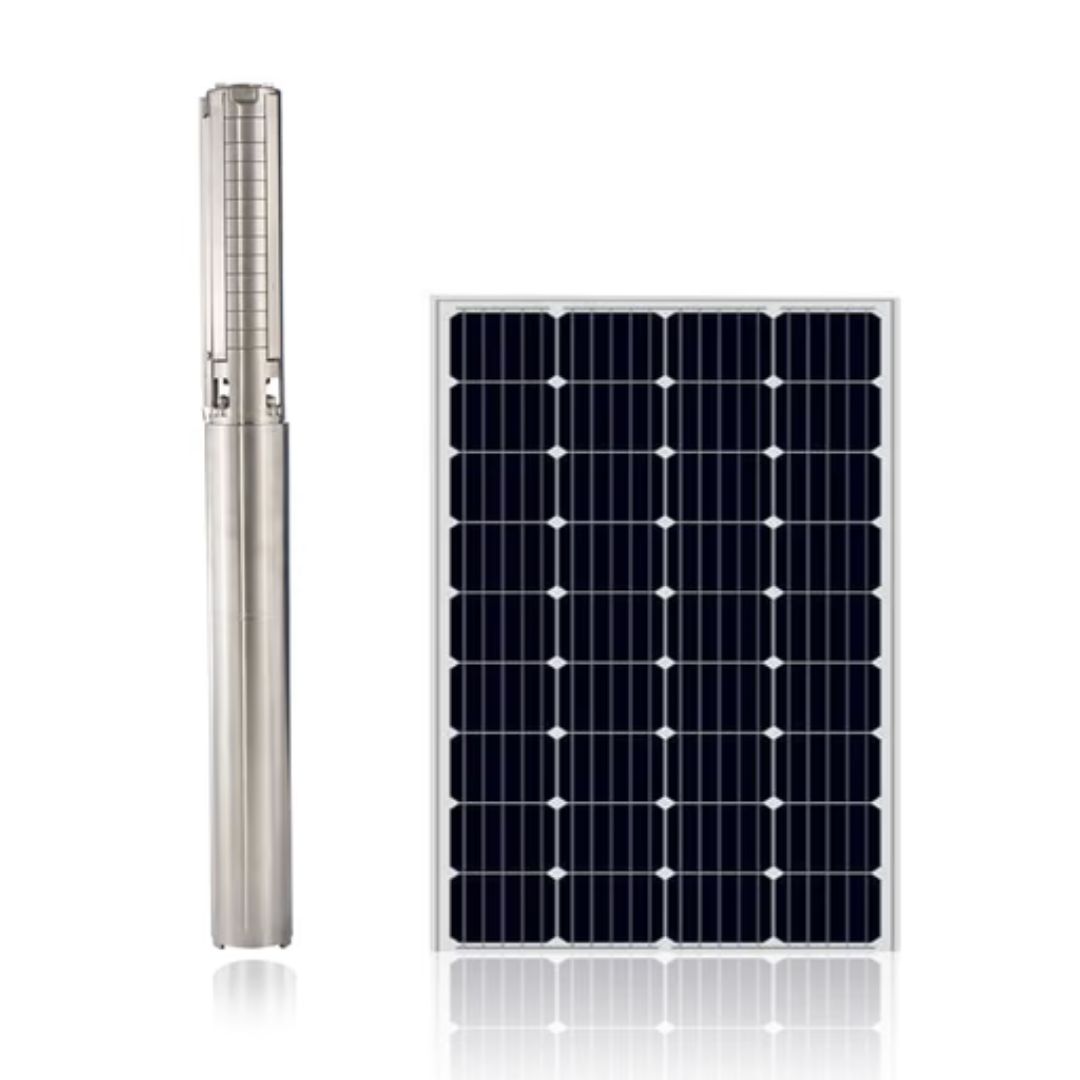

Solar Submersible Pump ARL-4SP5-10

Solar Submersible Pump ARL-4SP5-10

The Solar Submersible Pump ARL-4SP5-10 is a powerful and efficient solar submersible pump, designed for diverse water pumping needs. It features a 2200W BLDC motor and an internal MPPT controller, delivering strong performance with a maximum head of 110 meters and an impressive flow rate of 10m³/h. Constructed with durable Stainless Steel 304 for both the impeller and pump body, and boasting an IP65 enclosure class for the controller and an IPX8 rating for the motor, the ARL-4SP5-10 is built for long-lasting and reliable operation.

Key Features:

• High-efficiency BLDC Motor with Max. 98% MPPT Efficiency
• Internal Controller with comprehensive protection features (Dry-Run, Reverse, Phase Loss, Over-Voltage, Low-Voltage, Over-Current, Over-Load, Over-Power, Over-Temperature, Stall)
• Durable Stainless Steel 304 construction for impeller and pump body
• Encapsulated water-filled motor for pollution-free operation
• Soft start running for extended system life
• Thrust bearing system
• Positive and negative pole reverse connection alarm
• Voltage/Current/Power/Speed Display
• IP65 rated controller and IPX8 rated motor
• Wide range of accessories included for easy installation

Technical Specifications:

• Power: 2200W / 2.95HP
• Max Head: 110m
• Max Flow: 10m³/h
• Controller Type: Internal with MPPT function
• Voltage: 40-90Vmp/100Voc (Controller), 40-90V Optimal Vmp (Motor), Max. VOC 100V (Motor)
• DC Voltage Range: 60-450V
• AC Voltage Range: 90-240V
• Outlet Size: 1.5 inches
• Impeller Material: Stainless Steel 304
• Pump Body Material: Stainless Steel 304
• Motor Type: Water-Filled, PMSM BLDC motor
• Motor Material: AISI 304
• Max Current: DC 15A
• Max Submersion: 150m
• Max Water Temperature: 40°C
• Motor Efficiency: Max. 85%
• Insulation Class: F
• Max Speed (Plastic/SS304/Helical): 4500 RPM / 4000 RPM / 4000 RPM
• Required Cooling Flow: 0.5L/s
• Enclosure Class (Controller): IP65
• Enclosure Class (Motor): IPX8
• Warranty: 2 Years
• Gross Weight: 10.5 KG
• Net Weight: 8.5 KG
• Dimension: 61*36*16 MM
• Certificates: CE, TUV, SUD, UL, ISO9001, ISO14001

What’s Included:

• 1x 3inch DC solar centrifugal pump with 1x 1.5m cable
• 1x Pump controller with MPPT function
• 1x Electric float switch for water tank
• 1x Waterproof adhesive tape
• 1x PVC electrical adhesive tape
• 1x PTFE tape

Not Included (Self-Prepare):

• Suitable solar panels (Recommend using 550W solar panels in series)
• Stainless steel wire (safety cable) to hold pump in bore
• Poly pipe from pump to water tank
• Pump outlet joint connector
• Wire power cable (2 wires plus earth)
