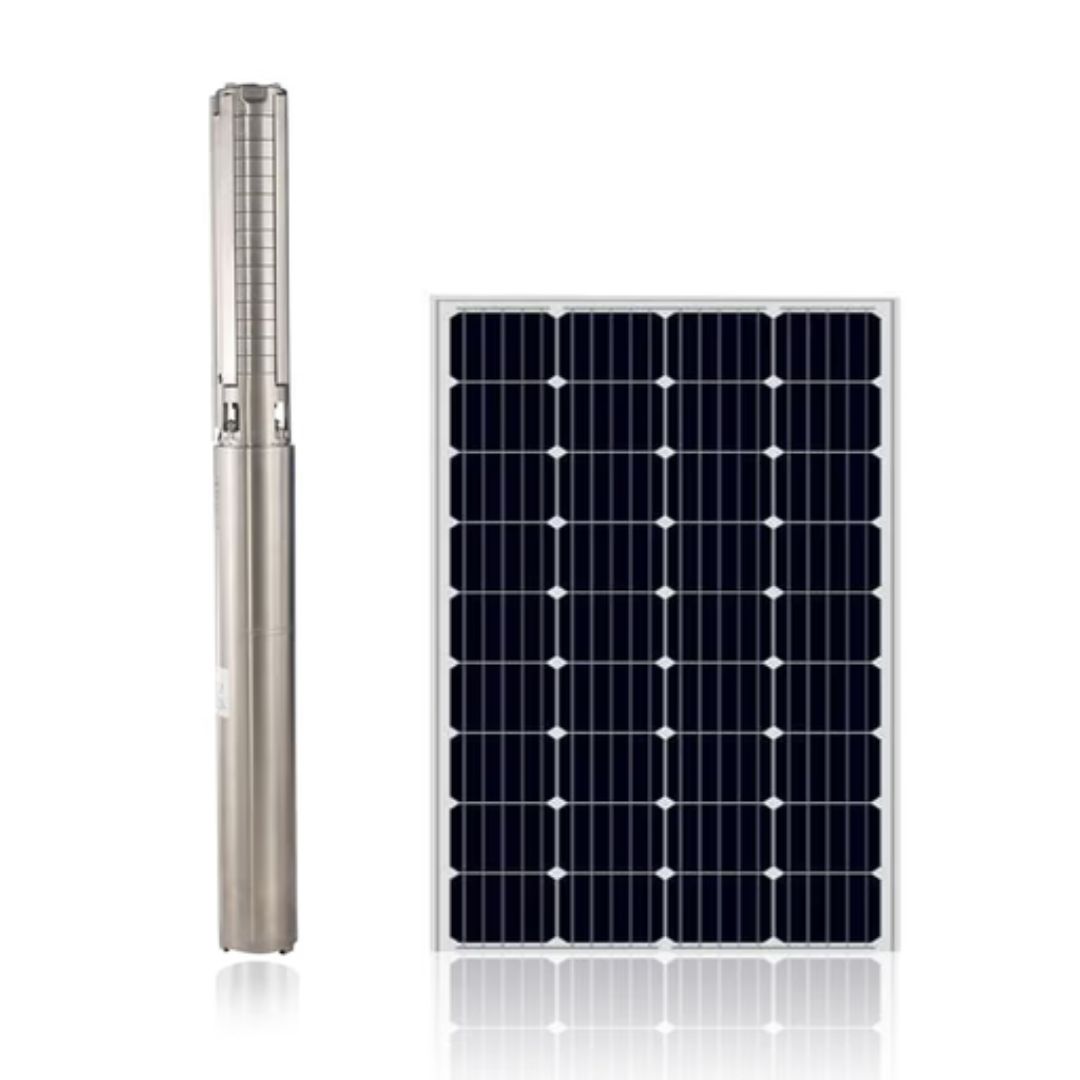

Solar Submersible Pump ARL-4SP5-15

Solar Submersible Pump ARL-4SP5-15

The Solar Submersible Pump ARL-4SP5-15 is a robust and efficient solar submersible pump, engineered for demanding water pumping applications. It features a 3000W BLDC motor and an internal MPPT controller, providing powerful performance with a maximum head of 165 meters and a flow rate of 10m³/h. Constructed with durable Stainless Steel 304 for both the impeller and pump body, and equipped with an IP65 rated controller and IPX8 rated motor, the ARL-4SP5-15 ensures reliable and long-lasting operation.

Key Features:

• High-efficiency BLDC Motor with Max. 98% MPPT Efficiency
• Internal Controller with comprehensive protection features (Dry-Run, Reverse, Phase Loss, Over-Voltage, Low-Voltage, Over-Current, Over-Load, Over-Power, Over-Temperature, Stall)
• Durable Stainless Steel 304 construction for impeller and pump body
• Encapsulated water-filled motor for pollution-free operation
• Soft start running makes system’s life longer
• Thrust bearing system
• Positive and negative pole reverse connection alarm
• Voltage/Current/Power/Speed Display
• IP65 rated controller and IPX8 rated motor
• Wide range of accessories included for easy installation

Technical Specifications:

• Power: 3000W / 4.02HP
• Max Head: 165m
• Max Flow: 10m³/h
• Controller Type: Internal with MPPT function
• Voltage: 40-90Vmp/100Voc (Controller), DC Best. Vmp 40-90V (Motor), DC Max. VOC 100V (Motor)
• DC Voltage Range: 60-450V
• AC Voltage Range: 90-240V
• Outlet Size: 1.5 inches
• Pump Length: 1.1m
• Impeller Material: Stainless Steel 304
• Pump Body Material: Stainless Steel 304
• Motor Type: Water-Filled, PMSM BLDC motor
• Motor Material: AISI 304
• Max Current: DC 15A
• Max Submersion: 150m
• Max Water Temperature: 40°C
• Motor Efficiency: Max. 85%
• Insulation Class: F
• Max Speed (Plastic/SS304/Helical): 4500 RPM / 4000 RPM / 4000 RPM
• Required Cooling Flow: 0.5L/s
• Enclosure Class (Controller): IP65
• Enclosure Class (Motor): IPX8
• Warranty: 2 Years
• Gross Weight: 10.5 KG
• Net Weight: 8.5 KG
• Dimension: 61*36*16 MM
• Certificates: CE, TUV, SUD, UL, ISO9001, ISO14001

What’s Included:

• 1x 3inch DC solar centrifugal pump with 1x 1.5m cable
• 1x Pump controller with MPPT function
• 1x Electric float switch for water tank
• 1x Waterproof adhesive tape
• 1x PVC electrical adhesive tape
• 1x PTFE tape

Not Included (Self-Prepare):

• Suitable solar panels. (Recommend using 550W solar panels in series.)
• A stainless steel wire (safety cable) to hold pump in bore.
• Poly pipe from pump to water tank.
• Pump outlet joint connector
• Wire power cable (2 wires plus earth).
