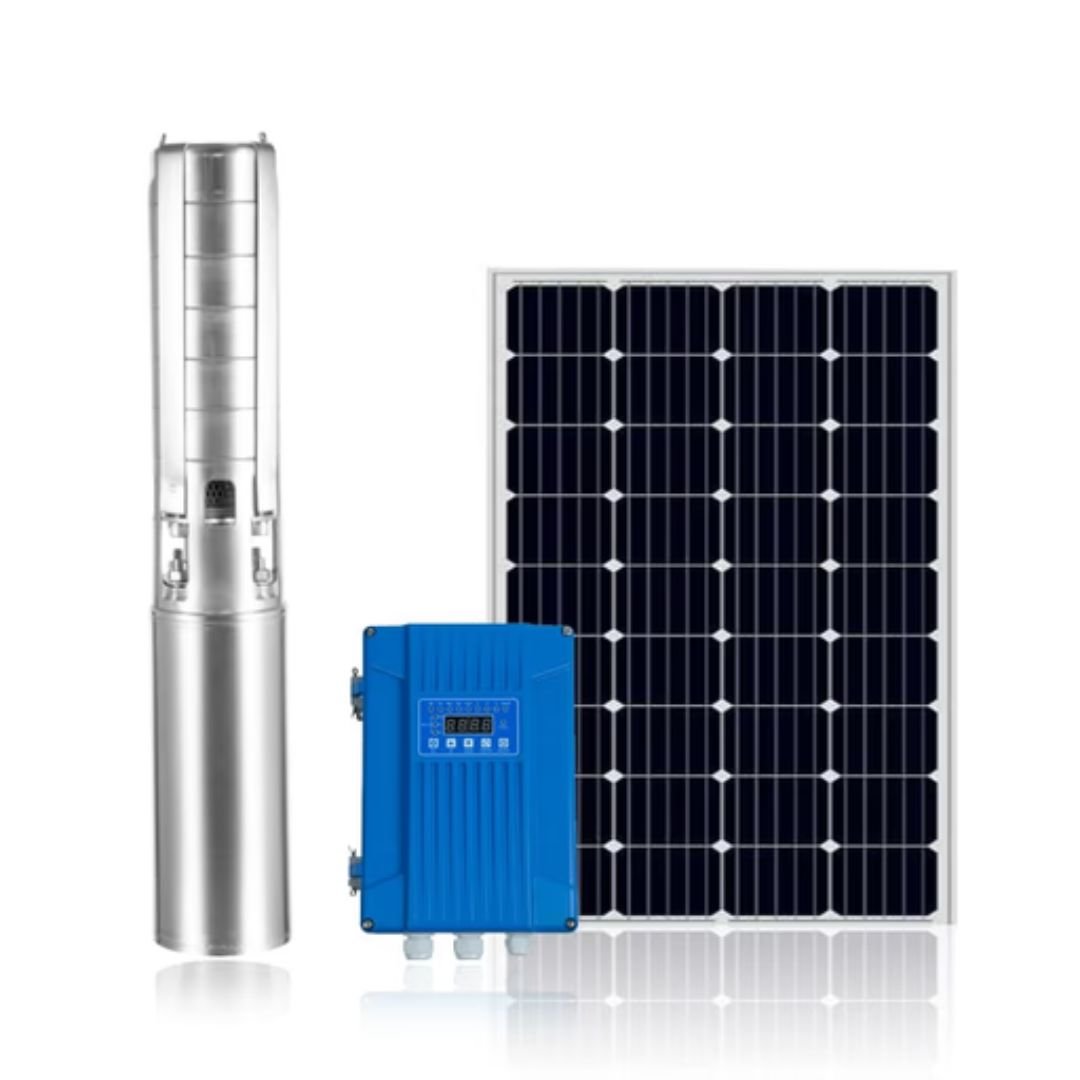

Submersible Solar Pump ARL-4SPK14-4

Submersible Solar Pump ARL-4SPK14-4

The Submersible Solar Pump ARL-4SPK14-4 is a robust and efficient submersible solar pump designed for demanding water transfer applications. Constructed from durable stainless steel (AISI 304, with 316 optional) and powered by a high-efficiency BLDC motor, this pump delivers a substantial maximum flow rate of 24.0 m³/h with an impressive head of up to 51 meters. Its external controller, equipped with MPPT functionality, ensures optimal solar energy utilization, making it a reliable choice for various water pumping requirements.

Key Features:

• High-efficiency BLDC motor with encapsulated water-filled design
• External controller with MPPT function for optimized solar power utilization
• Durable stainless steel (AISI 304/SS304) construction for longevity
• Comprehensive protection features including dry-run, over-load, over-current, over-voltage, low-voltage, and reverse connection alarms
• Soft start running for extended system life
• Thrust bearing system for enhanced reliability
• Voltage, current, power, and speed display
• 2-year warranty

Technical Specifications:

• Power: 3000W / 4.02HP
• Max Head: 51m
• Max Flow: 24.0 m³/h
• Controller: External (MPPT Efficiency: Max. 98%, Enclosure Class: IP65)
• Motor: Water-Filled, PMSM / BLDC motor
• Material: SS304 / AISI 304 (316 Optional)
• Impeller Material: Stainless Steel 304
• Impeller Type: Centrifugal
• DC Voltage Range: 60-450V
• AC Voltage Range: 90-240V
• Optimal Voltage (Vmp): 40-90V
• Max Voltage (VOC): DC Max. 100V
• Insulation Class: F
• Enclosure Class (Motor): IPX8
• Max Submersion: 150m
• Water Temperature Max: 40°C
• Efficiency: Motor Max. 85%, System Max. 98%
• Pump Discharge: Rp 1.25 (Outlet Size: 2 inches)
• Minimum Well Diameter: 3 inch
• Gross Weight (Pump+Controller): 10.5 KG
• Net Weight (Pump+Controller): 8.5 KG
• Dimension (Pump+Controller): 61*36*16 MM
• Certificates: CE, TUV, SJD, UL, ISO9001, ISO14001

What’s Included:

• 1* 3-inch DC solar centrifugal pump with 1* 1.5m cable
• 1* Pump controller with MPPT function
• 1* Electric float switch for water tank
• 1* Waterproof adhesive tape
• 1* PVC electrical adhesive tape
• 1* PTFE tape

Not Included (Self-Prepare):

• Suitable solar panels (recommend using 550W solar panels in series)
• A stainless steel wire (safety cable) to hold pump in bore
• Poly pipe from pump to water tank
• Pump outlet joint connector
• Wire power cable (2 wires plus earth)
