Thin Body Window Glass Ventilation Fan

Thin Body Window Glass Ventilation Fan

The Thin Body Window Glass Ventilation Fan is an innovative and highly efficient solution for maintaining fresh air in various indoor spaces. Designed with a sleek, thin profile, this fan is ideal for discreet and easy integration into window glass. It offers excellent performance with low noise levels, making it perfect for both residential and commercial applications. Its screw-on installation ensures a secure fit, and optional mosquito nets and wind shields are available for enhanced functionality and adaptability.

Key Features:

• Thin body design for discreet and aesthetic integration.
• Easy screw-on installation for quick setup.
• Low noise operation (40-44 dB(A)) ensures minimal disturbance.
• Optional mosquito net and wind shield for added protection and versatility.
• Energy-efficient with ratings of 1 or 2, reducing power consumption.
• CE certified for quality and safety standards.

Technical Specifications:

• Models: ARL-APC10-2-30(B1), ARL-APC15-2-30(B1), ARL-APC10-2-30(B2), ARL-APC15-2-30(B2)
• Sizes: 100 mm (4″) and 150 mm (6″)
• Power: 10 W (4″) / 16 W (6″)
• Air Volume: 66 m³/h (4″) / 180 m³/h (6″)
• Speed: 1800 r/min (4″) / 1350 r/min (6″)
• Opening Size: Ø104-116 mm (4″) / Ø151-165 mm (6″)
• Applicable Area: 4-7 m² (4″) / 7-10 m² (6″)
• Gross Weight: 11.5 Kg (4″) / 14.5 Kg (6″)
• Packing Size (L x W x H): 490x320x345 mm (4″) / 645x295x445 mm (6″)

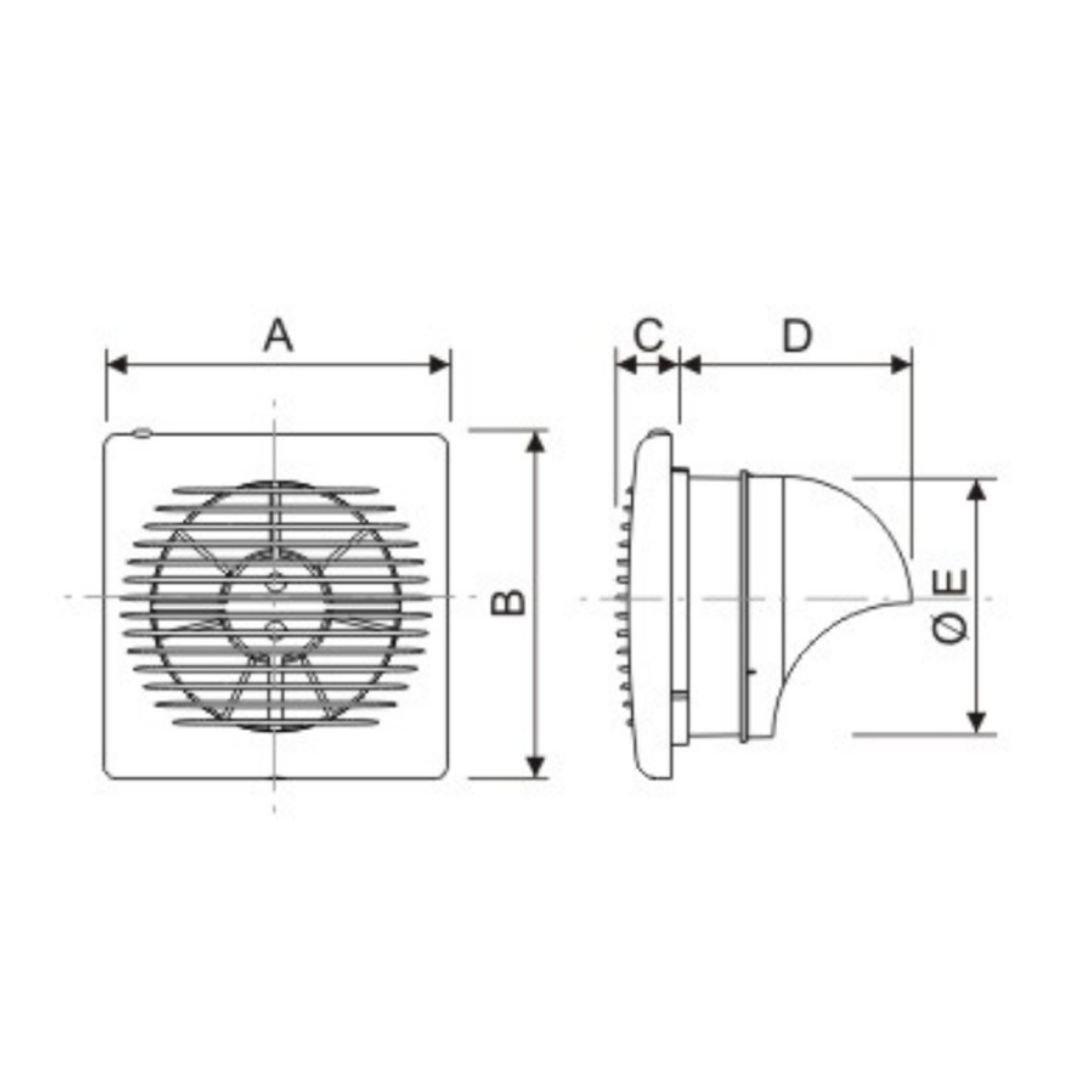

• Dimensions (mm):
  • A (Width): 150 mm (4″) / 200 mm (6″)
  • B (Height): 150 mm (4″) / 200 mm (6″)
  • C (Depth): 30 mm (4″) / 32 mm (6″)
  • D (Mounting Length): 117 mm (ARL-APC10-2-30(B1)), 140 mm (ARL-APC15-2-30(B1)), 56 mm (ARL-APC10-2-30(B2)), 57 mm (ARL-APC15-2-30(B2))
  • E (Mounting Diameter): Ø111 mm (ARL-APC10-2-30(B1)), Ø157 mm (ARL-APC15-2-30(B1)), Ø105 mm (ARL-APC10-2-30(B2)), Ø150 mm (ARL-APC15-2-30(B2))
