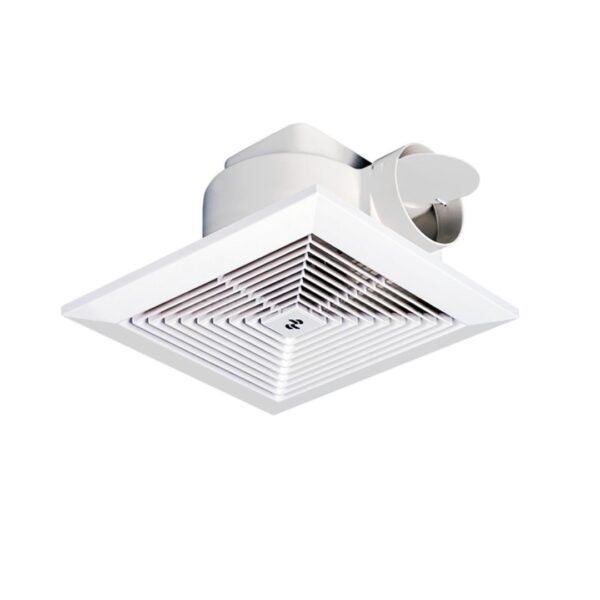

Thin High Air Volume Silent Duct Ventilation Fan ARL-BPT15/20-12-30 Series

Thin High Air Volume Silent Duct Ventilation Fan ARL-BPT15/20-12-30 Series

Introducing the Thin High Air Volume Silent Duct Ventilation Fan, ARL-BPT15/20-12-30 Series. Engineered as robust, all-plastic body solutions for demanding environments, these duct ventilation fans deliver exceptional airflow with remarkably quiet operation. Designed for versatile integration into engineering projects, the series offers reliable performance across different models to meet diverse ventilation needs. Their slim profile ensures efficient space utilization while maintaining optimal air circulation.

Key Features:

• High air volume output for effective ventilation
• Quiet operation, minimizing acoustic disturbance
• Durable all-plastic body construction, suitable for engineering applications
• Thin design for seamless integration into ducting systems
• Certified for reliable and consistent performance

Technical Specifications:

• Models Covered: ARL-BPT15-12-30(P8A/P8B) and ARL-BPT20-12-30(P8A/P8B)
• Power:
  • ARL-BPT15 Series: 28 W
  • ARL-BPT20 Series: 32 W
• Air Volume:
  • ARL-BPT15 Series: 168 m³/h
  • ARL-BPT20 Series: 192 m³/h
• Pressure:
  • ARL-BPT15 Series: 98 Pa
  • ARL-BPT20 Series: 110 Pa
• Speed:
  • ARL-BPT15 Series: 820 r/min
  • ARL-BPT20 Series: 1000 r/min
• Noise Level:
  • ARL-BPT15 Series: 42 dB(A)
  • ARL-BPT20 Series: 48 dB(A)
• Opening Size:
  • ARL-BPT15 Series: 235×235 mm
  • ARL-BPT20 Series: 272×272 mm
• Applicable Area:
  • ARL-BPT15 Series: 15-20 m²
  • ARL-BPT20 Series: 25-30 m²
• Quantity (per package): 6 Pc (All models)
• Gross Weight (per package):
  • ARL-BPT15 Series: 10.5 Kg
  • ARL-BPT20 Series: 13 Kg
• Packaging Dimensions (L x W x H):
  • ARL-BPT15 Series: 495x315x625 mm
  • ARL-BPT20 Series: 555x350x690 mm
• 3C Certification: Yes (All models)
• Energy Efficiency Rating: 2 (All models)
• Overall Fan Dimensions (by Series):
  • ARL-BPT15 Series:
    • A: 288 mm
    • B: 20 mm
    • C: 270 mm
    • D: 226 mm
    • E: 140 mm
    • F: 27 mm
  • ARL-BPT20 Series:
    • A: 324 mm
    • B: 20 mm
    • C: 316 mm
    • D: 270 mm
    • E: 158 mm
    • F: 28 mm
• Pipe Diameter (G): Ø100 mm (All models)
