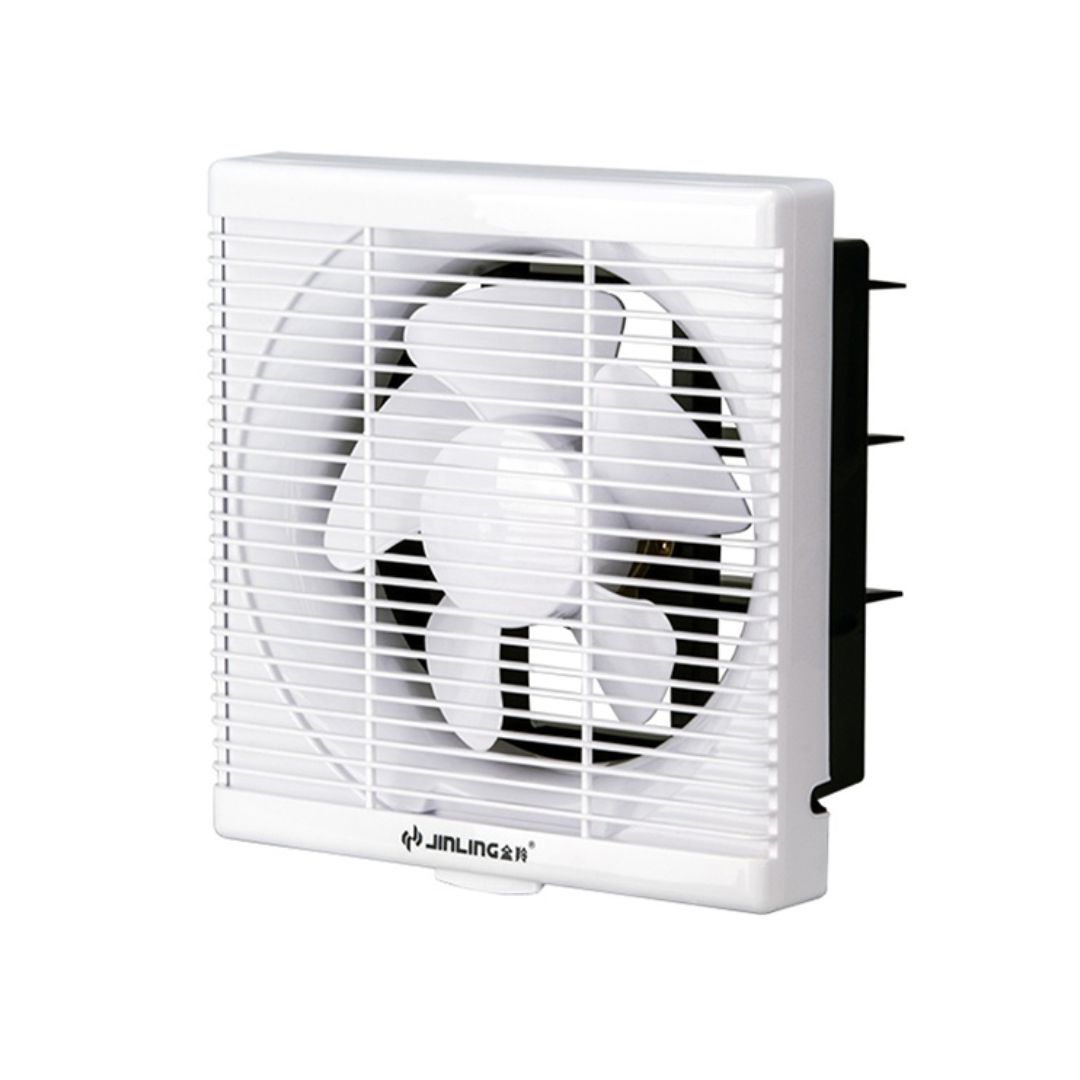

Ventilation Fan with Front Grille Shutter (All Plastic Frame) ARL-APB Series

Ventilation Fan with Front Grille Shutter (All Plastic Frame) ARL-APB Series

The Ventilation Fan with Front Grille Shutter (All Plastic Frame) ARL-APB Series are designed with a lightweight and corrosion-resistant all-plastic frame. These fans feature a front grille shutter mechanism for both protection and controlled airflow. They are ideal for various applications requiring efficient and reliable ventilation with the added benefit of a durable all-plastic construction.

Key Features:

• Lightweight and corrosion-resistant all-plastic frame
• Front grille shutter for protection and airflow control
• Efficient air extraction
• Suitable for various ventilation applications

Technical Specifications:

• Model- ARL-APB15-3-30(HSJ):
  • Specification: 150 mm (6″)
  • Rated Power: 26 W
  • Nominal Air Volume: 240 m³/h
  • Speed: 1350 r/min
  • Noise: 41 dB(A)
  • Opening Size: 200×200 mm
  • Applicable Area: 16-20 m²
  • Quantity: 5 Pc
  • Gross Weight: 8.2 kg
  • Packing size (length, width and height): 680x265x270 mm
  • Energy Efficiency Rating: 3

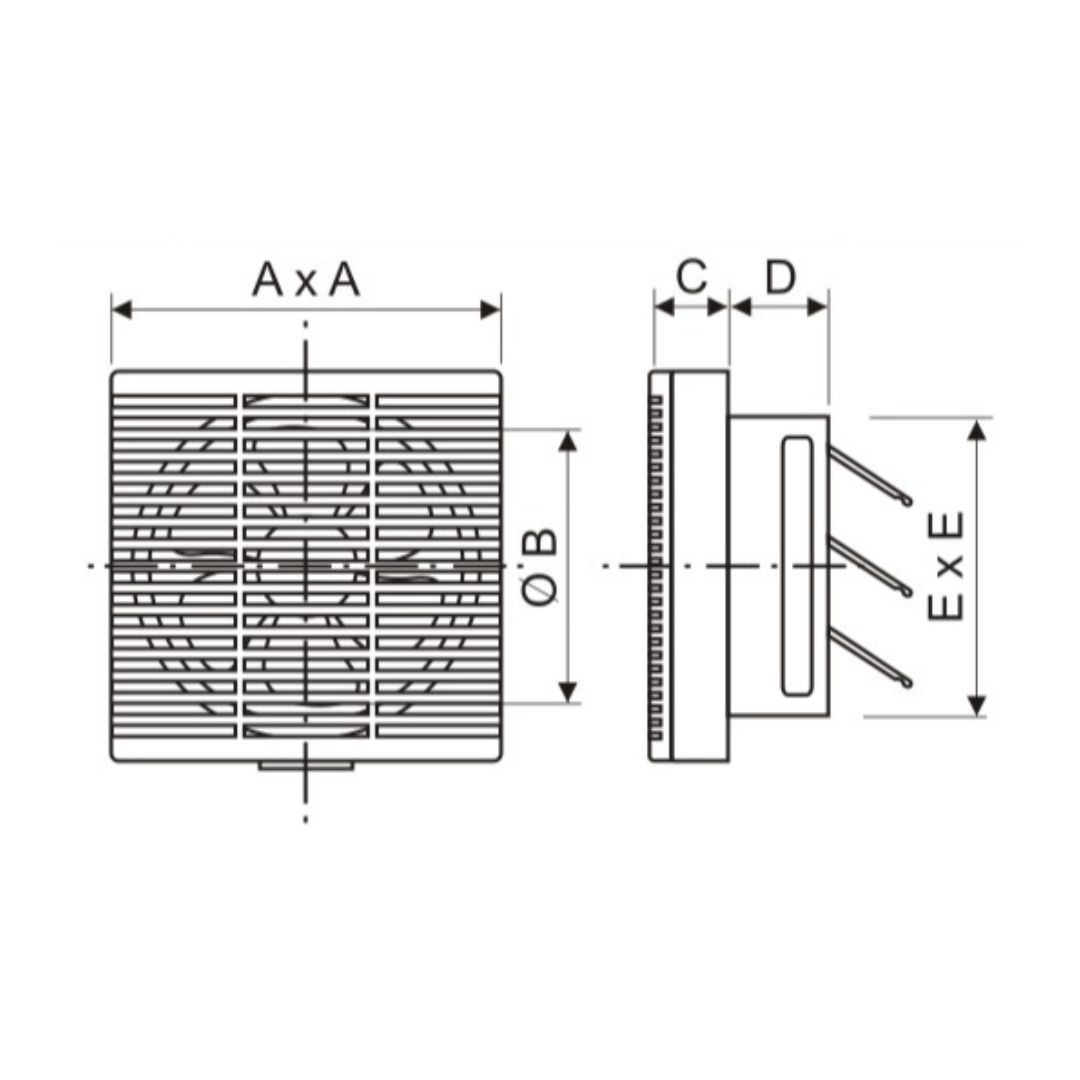

  • Dimensions (A x B x C x D x E): 234 x 160 x 52 x 78 x 195 mm
• ARL-APB20-4-30(HSJ):
  • Specification: 200 mm (8″)
  • Rated Power: 28 W
  • Nominal Air Volume: 486 m³/h
  • Speed: 1250 r/min
  • Noise: 43 dB(A)
  • Opening Size: 250×250 mm
  • Applicable Area: 20-25 m²
  • Quantity: 5 Pc
  • Gross Weight: 10.3 kg
  • Packing size (length, width and height): 700x325x330 mm
  • Energy Efficiency Rating: 3
  • Dimensions (A x B x C x D x E): 296 x 200 x 57 x 86 x 240 mm
• ARL-APB25-5-30(HSJ):
  • Specification: 250 mm (10″)
  • Rated Power: 36 W
  • Nominal Air Volume: 750 m³/h
  • Speed: 1250 r/min
  • Noise: 46 dB(A)
  • Opening Size: 300×300 mm
  • Applicable Area: 30-37 m²
  • Quantity: 5 Pc
  • Gross Weight: 12.5 kg
  • Packing size (length, width and height): 700x365x375 mm
  • Energy Efficiency Rating: 3
  • Dimensions (A x B x C x D x E): 338 x 240 x 60 x 86 x 280 mm
• ARL-APB30-6-30(HSJ):
  • Specification: 300 mm (12″)
  • Rated Power: 48 W
  • Nominal Air Volume: 1200 m³/h
  • Nominal Pressure: – Pa
  • Speed: 1000 r/min
  • Noise: 51 dB(A)
  • Opening Size: 350×350 mm
  • Applicable Area: 45-55 m²
  • Quantity: 5 Pc
  • Gross Weight: 13.5 kg
  • Packing size (length, width and height): 730x425x425 mm
  • Energy Efficiency Rating: 2
  • Dimensions (A x B x C x D x E): 388 x 290 x 60 x 89 x 340 mm
