Ventilation Fan with Front Grille Shutter Metal Frame ARL-APB Series
Ventilation Fan with Front Grille Shutter Metal Frame ARL-APB Series
The Ventilation Fan with Front Grille Shutter Metal Frame ARL-APB Series are designed with a durable metal frame, providing robust and efficient air extraction. These fans are equipped with a front grille shutter mechanism, offering both protection and controlled airflow. They are ideal for various applications requiring reliable ventilation with the added benefit of a metal frame for enhanced durability and aesthetics.
Key Features:
- Durable metal frame construction
- Front grille shutter for protection and airflow control
- Efficient air extraction
- Suitable for various ventilation applications
Technical Specifications:
- MODEL -ARL-APB15-3-30(HJ1):
- Specification: 150 mm (6″)
- Rated Power: 26 W
- Nominal Air Volume: 240 m³/h
- Speed: 1350 r/min
- Noise: 41 dB(A)
- Opening Size: 200×200 mm
- Applicable Area: 16-20 m²
- Quantity: 5 Pc
- Gross Weight: 8.8 kg
- Packing size (length, width and height): 665x265x270 mm
- Energy Efficiency Rating: 3

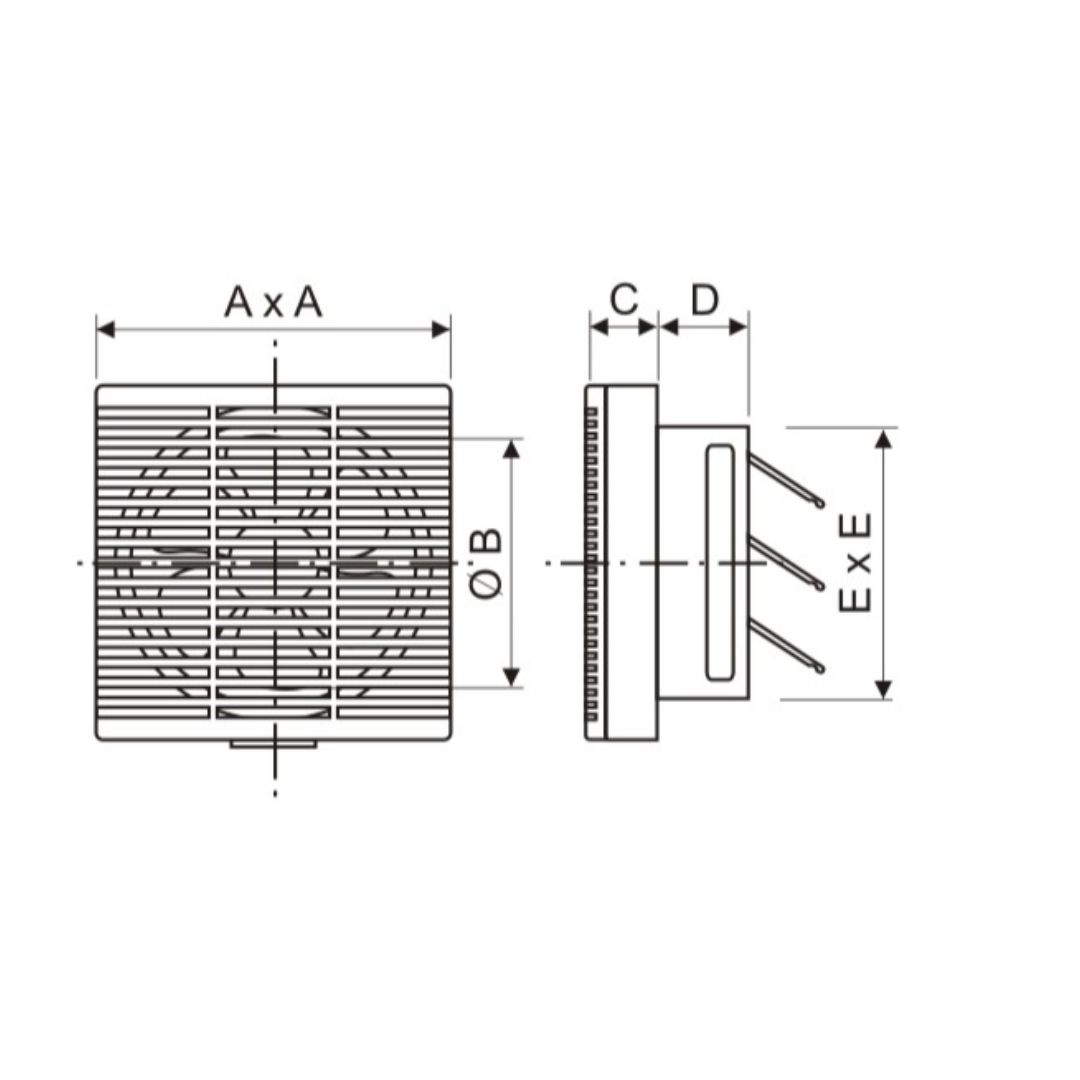

- Dimensions (A x B x C x D x E): 234 x 160 x 52 x 82 x 192 mm
- APB20-4-30(HJ1):
- Specification: 200 mm (8″)
- Rated Power: 28 W
- Nominal Air Volume: 486 m³/h
- Speed: 1250 r/min
- Noise: 43 dB(A)
- Opening Size: 250×250 mm
- Applicable Area: 20-25 m²
- Quantity: 5 Pc
- Gross Weight: 10.5 kg
- Packing size (length, width and height): 600x325x333 mm
- Energy Efficiency Rating: 3
- Dimensions (A x B x C x D x E): 296 x 200 x 57 x 67 x 242 mm
- APB25-5-30(HJ1):
- Specification: 250 mm (10″)
- Rated Power: 36 W
- Nominal Air Volume: 750 m³/h
- Speed: 1250 r/min
- Noise: 46 dB(A)
- Opening Size: 300×300 mm
- Applicable Area: 30-37 m²
- Quantity: 5 Pc
- Gross Weight: 12.7 kg
- Packing size (length, width and height): 665x360x380 mm
- Energy Efficiency Rating: 3
- Dimensions (A x B x C x D x E): 338 x 240 x 60 x 74 x 292 mm
- APB30-6-30(HJ1):
- Specification: 300 mm (12″)
- Rated Power: 48 W
- Nominal Air Volume: 1200 m³/h
- Speed: 1000 r/min
- Noise: 48 dB(A)
- Opening Size: 350×350 mm
- Applicable Area: 45-55 m²
- Quantity: 5 Pc
- Gross Weight: 14.5 kg
- Packing size (length, width and height): 690x420x430 mm
- Energy Efficiency Rating: 2
- Dimensions (A x B x C x D x E): 388 x 290 x 60 x 85 x 343 mm
