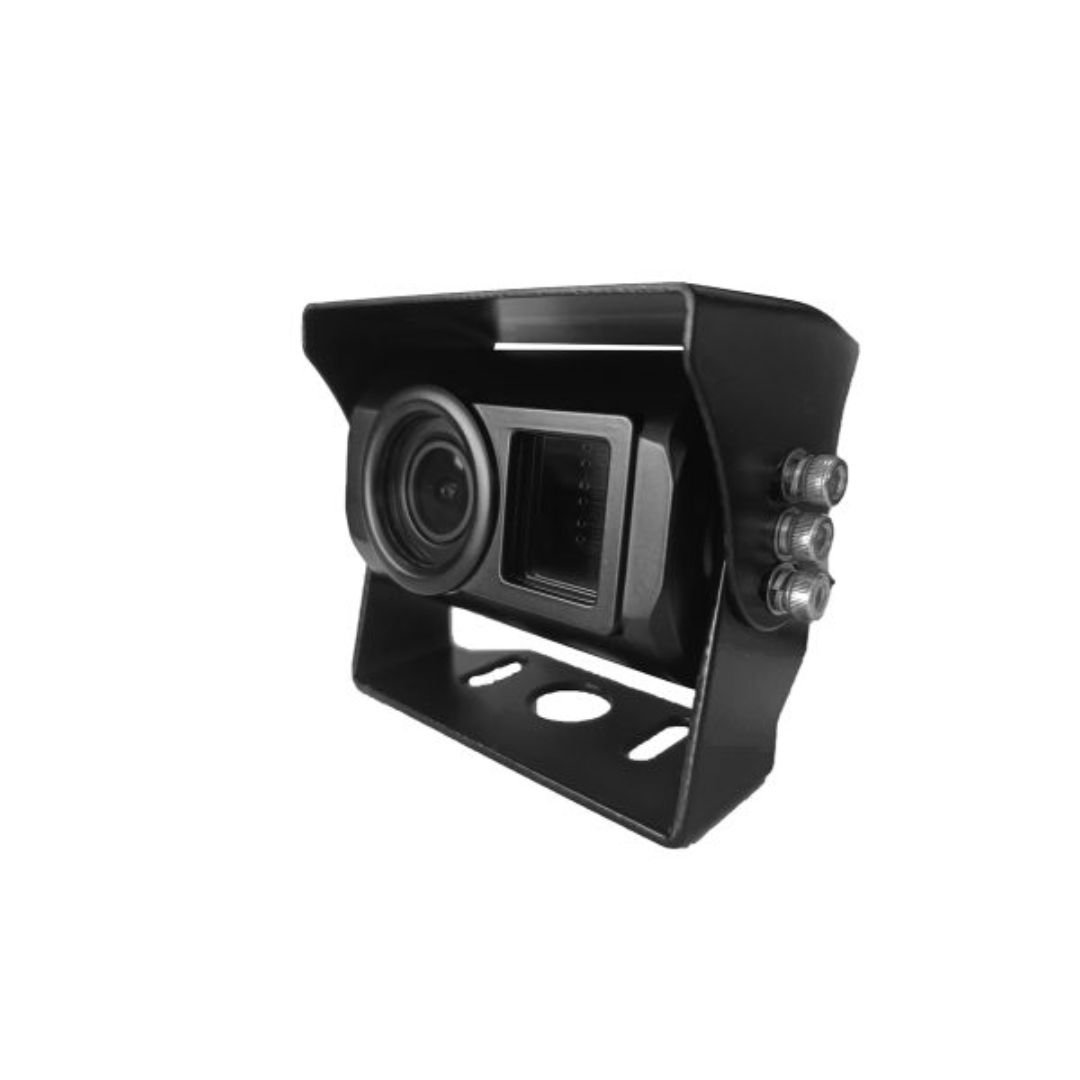

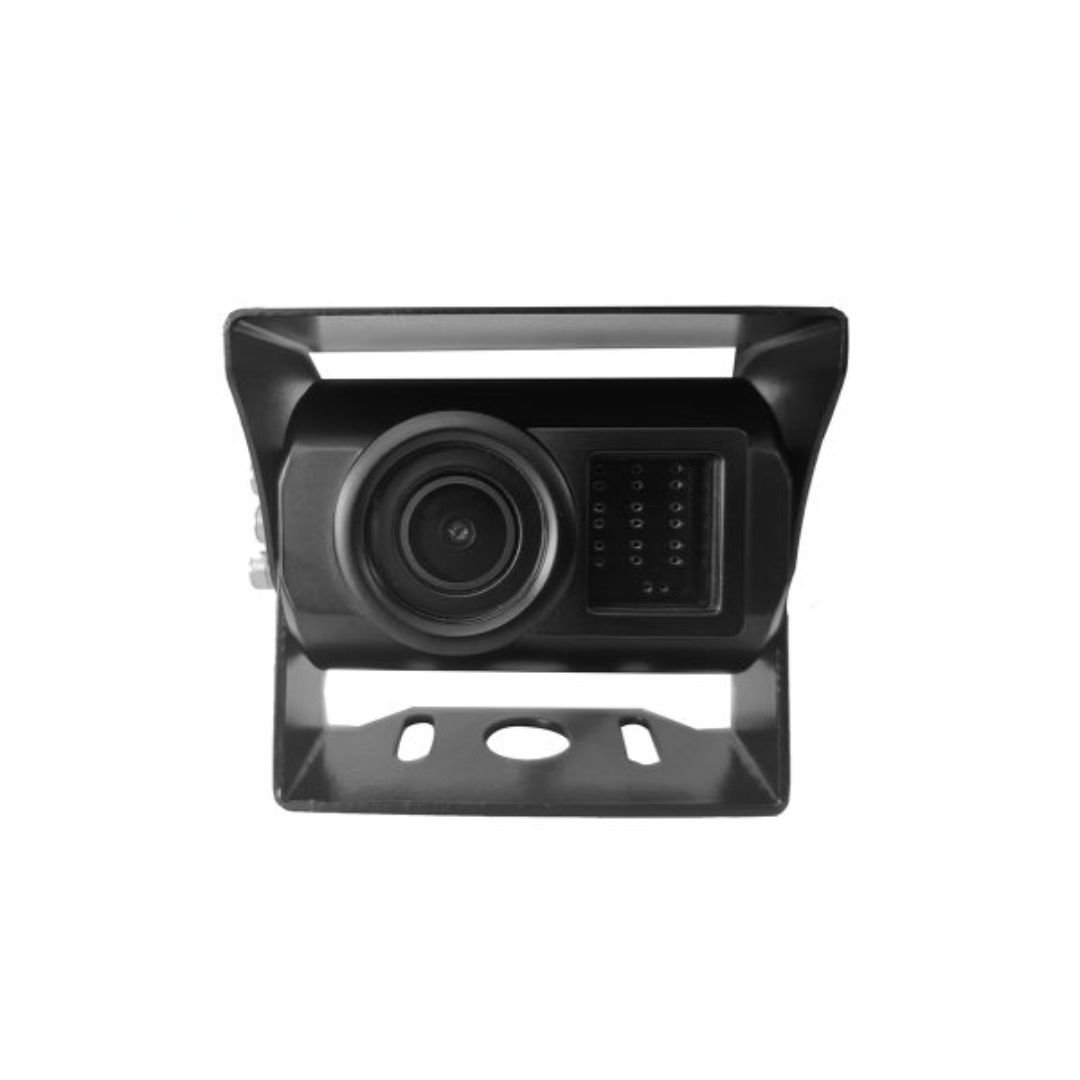

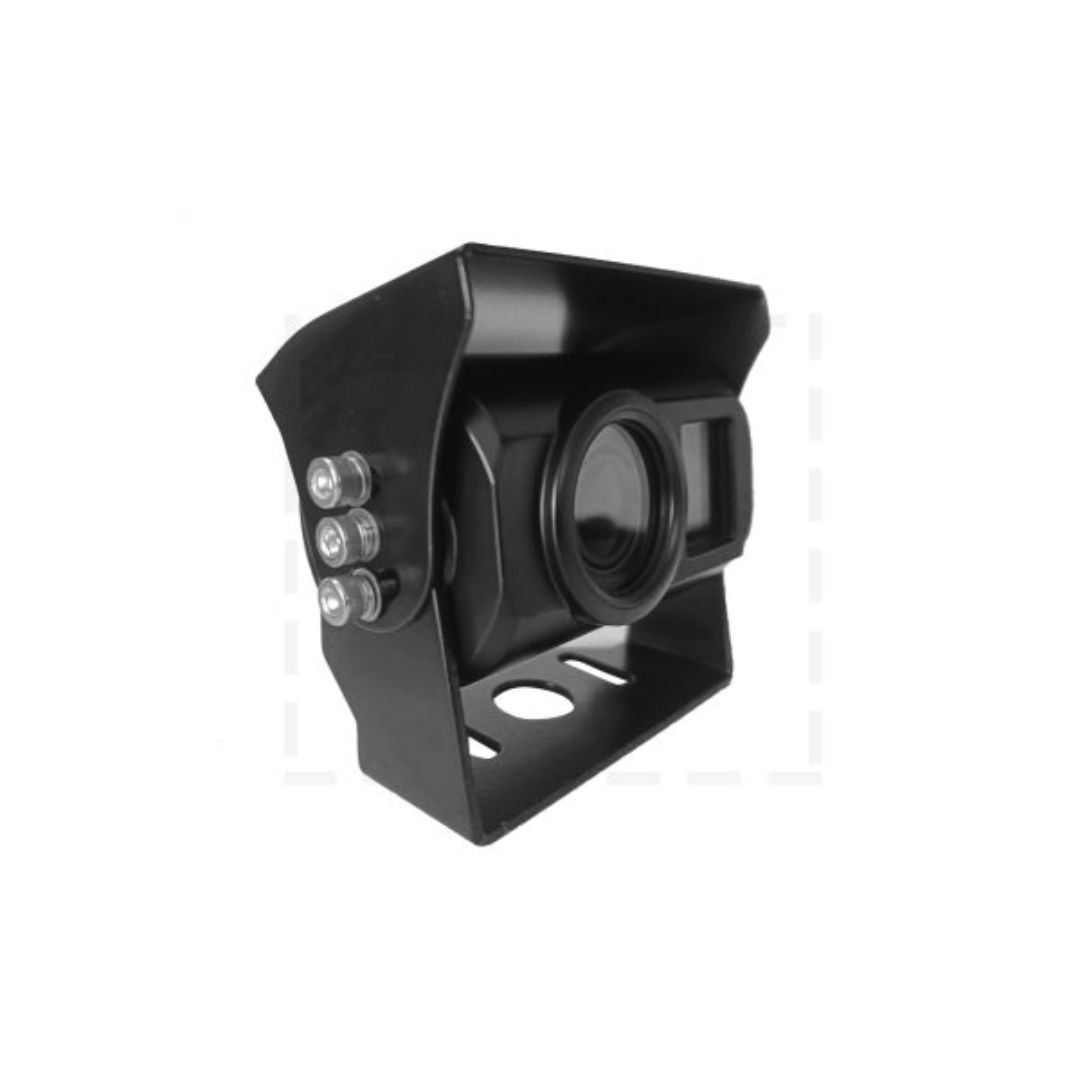

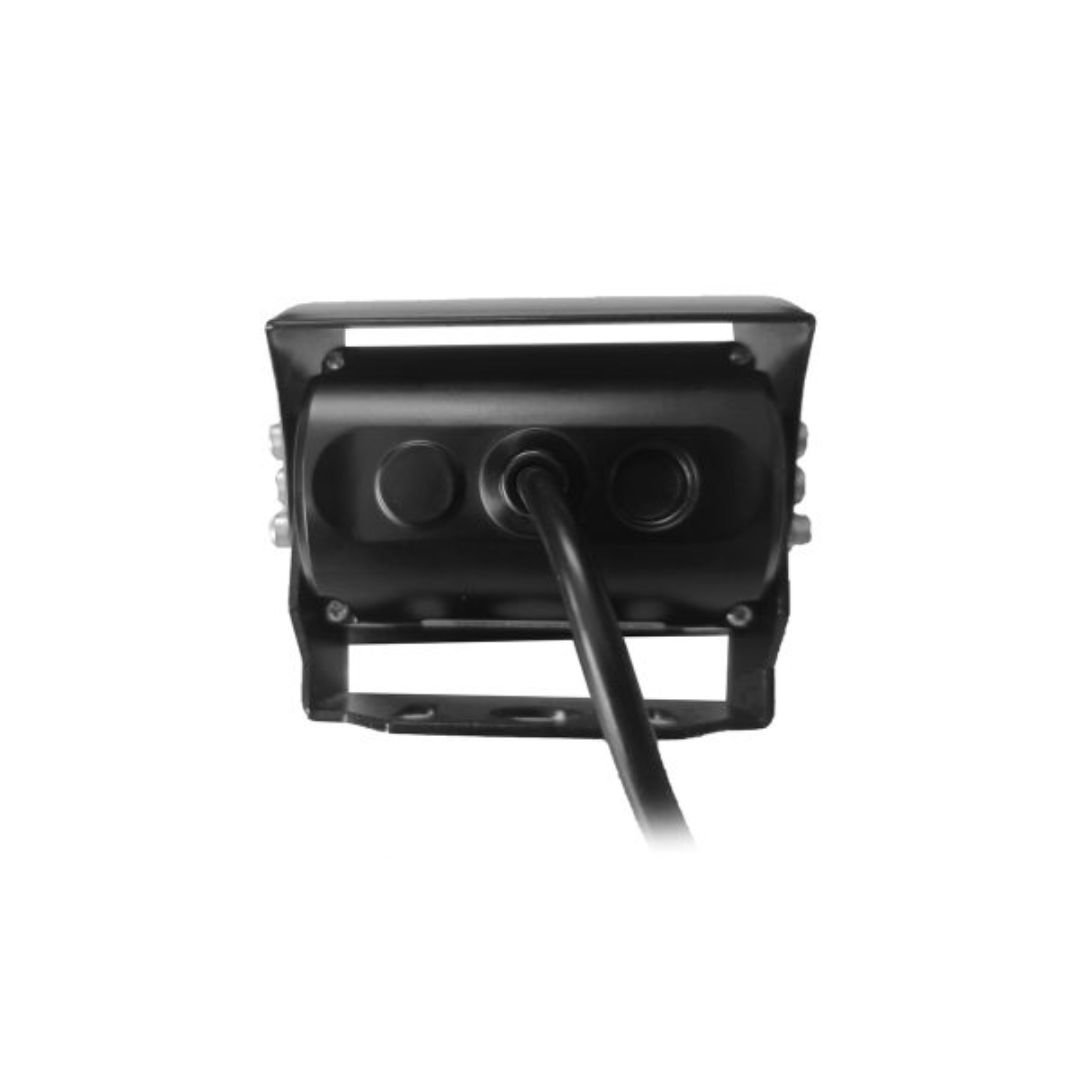

VNIR Camera ARL-MS-757S

The ARL-MS-757S is a high-definition 1080P camera designed to capture clear and vibrant color images even in extremely low light conditions (0.001Lux). VNIR Camera ARL-MS-757S features a 2.47-megapixel sensor and outputs video in 1920×1080 AHD format. Built for demanding environments, it boasts an IP69K waterproof rating. It utilizes internal synchronization and operates on a DC 12V power source. The signal-to-noise ratio is greater than 48dB, ensuring a clean video signal. The electronic iris has a speed range of 1/50, 1/60 to 1/100,000 seconds. It offers a dynamic range of 76dB for balanced exposure in varying light. The camera is designed to withstand significant impact with a rating of 20G for vibration and 100G for shock. The image output is a normal, non-mirrored view. It can operate in a wide temperature range of -30°C to +70°C and can be stored in temperatures from -40°C to +85°C.

Key Features:

• 1080P High Definition: Captures clear and detailed images.
• Ultra-Low Light Sensitivity: 0.001Lux for colorful images in near darkness.
• AHD Video Output: High-definition analog video format.
• IP69K Waterproof: Exceptional protection against water and dust.
• Wide 120° Viewing Angle: Provides broad coverage.
• High S/N Ratio: Clean video signal with minimal noise.
• Wide Dynamic Range: Balanced exposure in challenging lighting.
• Robust Design: High impact resistance to vibration and shock.
• Wide Operating Temperature: Reliable performance in extreme conditions.
• Additional Image Enhancement: LTM and 3D NR features.

Technical Specifications:
