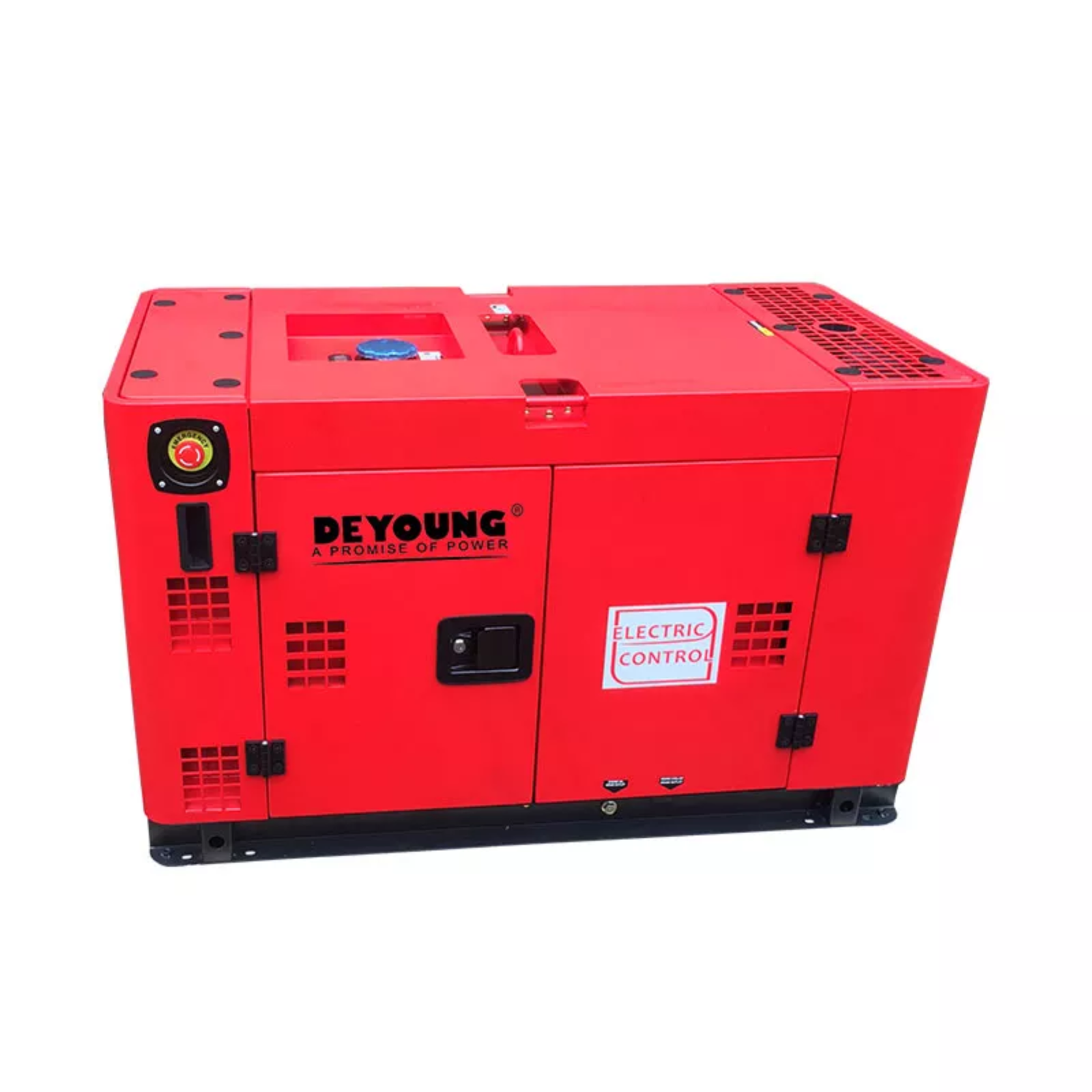

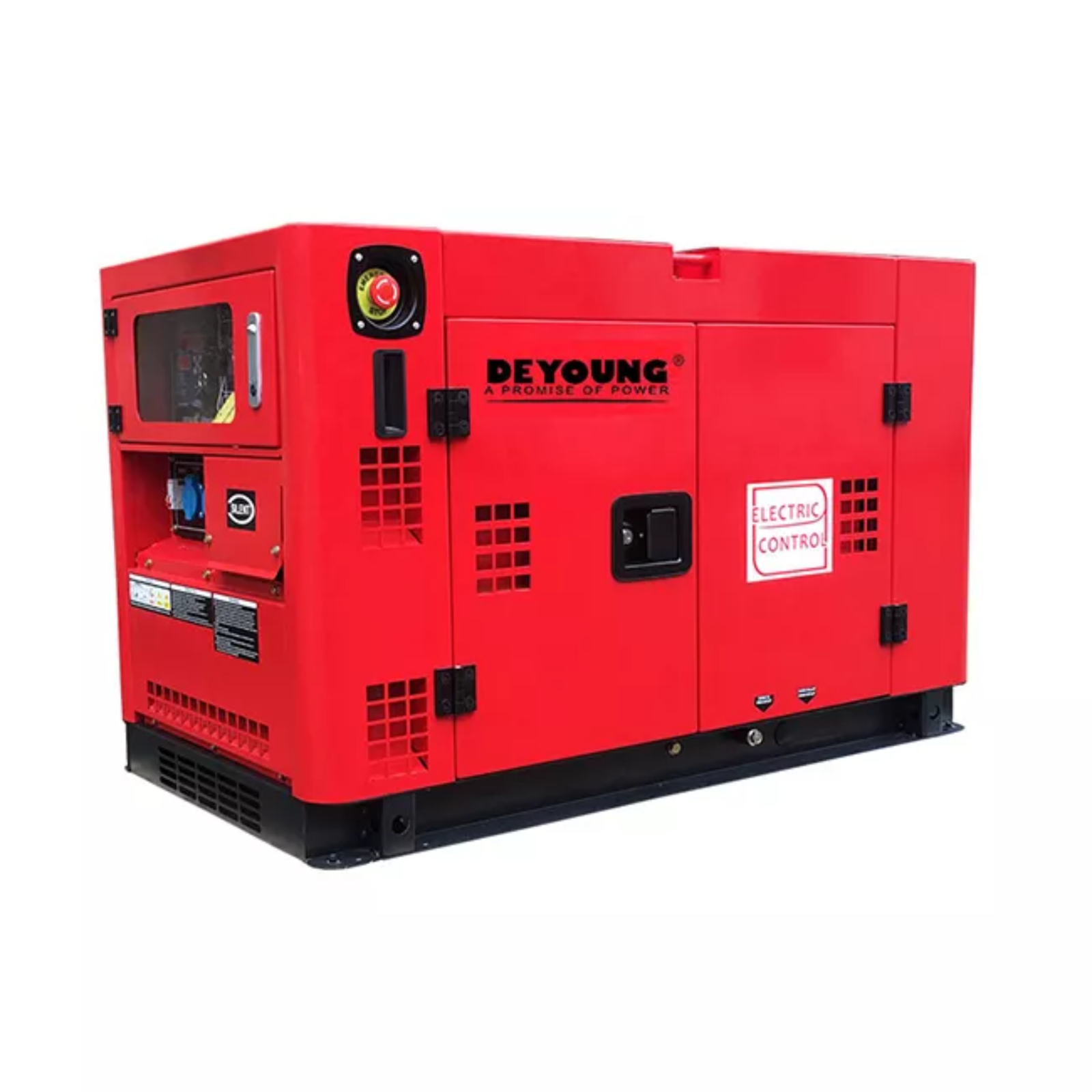

Water Cooled Diesel Generator ARL-DY12000LN
-
24/7 Support -
Quality guaranteed
-
worldwide delivery
-
Free Pick Up
24/7 Support
Quality guaranteed
worldwide delivery
Free Pick Up Product Description: The ARL-DY12000LN water-cooled diesel generator is designed for reliable power and efficient performance in demanding applications. This model features an electric start system and offers a range of voltage options, making it versatile for various uses. The water-cooled engine ensures optimal performance even under heavy loads and in high-temperature environments.
Model Specifications:
| Feature | ARL-DY12000LN |
|---|---|
| Rated Frequency (Hz) | 50 |
| Rated Power (kW) | 10 |
| Maximum Power (kW) | 11 |
| Rated Voltage (V) | 220V, 230V, 240V, 220/380V, 230/400V, 240/415V |
| Rated Current (A) | 45A (Single Phase), 13.6/19A (Three Phase) |
| Rated Speed (r/min) | 3000 |
| Starting Way | Electric start |
| Cooling Way | Water cooled |
| Ways of Excitation | Self-excited constant voltage (AVR) |
| Total Mass (kg) | 358 |
| Overall Dimension (mm) | 1260 x 750 x 890 |
| Engine Model | EV80 |
| Engine Types | 2-Cylinder, 4-Stroke, Water-cooled, V Type |
| Displacement (ml) | 997 |
| Bore*Stroke (mm) | 2-80 x 79 |
| Fuel Type | Diesel fuel: 0#(summer); -10#(winter); -35#(cold) |
| Fuel Consumption g/kw.h | ≤288 |
| Compression Ratio | 19:01 |
| Lube | CD or SAE10W-30 or 15W-40 |
| Fuel Tank Capacity (L) | 34 |
