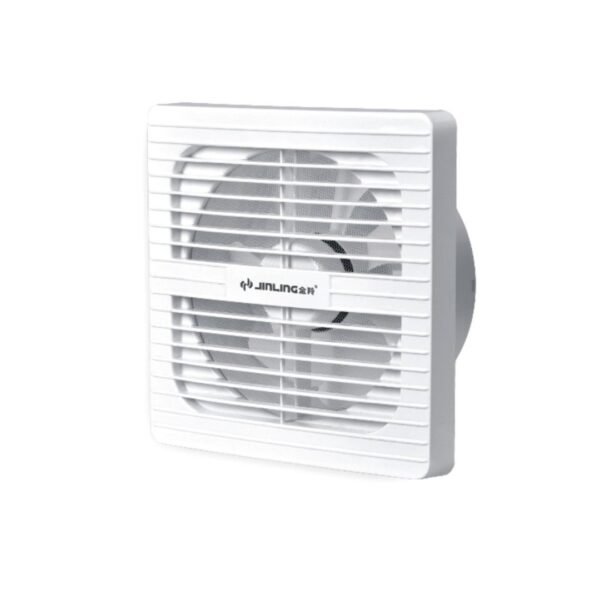

Window Glass Ventilation Fans Electric Shutter Type ARL-APC-10/15-2-30 D1 Series

Window Glass Ventilation Fans Electric Shutter Type ARL-APC-10/15-2-30 D1 Series

The Window Glass Ventilation Fans Electric Shutter Type ARL-APC-10/15-2-30 D1 Series provides an advanced and highly effective ventilation solution, particularly suited for environments with high wind pressure, such as high-rise buildings. These intelligent fans feature an automatic electric shutter that opens when the power is turned on and the fan starts, and closes securely when the power is turned off and the fan stops. This ensures optimal airflow during operation and reliable protection against external elements and backdraft when not in use. Ideal for seamlessly integrating into window glass, the ARL electric shutter fans efficiently remove stale air, control humidity, and eliminate odors, contributing to a consistently fresh and comfortable indoor atmosphere.

Key Features:

• Electric Shutter: Automatically opens and closes with power activation, ensuring protection and efficient operation.
• Ideal for High Wind Pressure: Suitable for installations in high-rise buildings and exposed locations.
• Efficiently extracts stale air, reduces humidity, and eliminates odors.
• Designed for easy and secure installation into window glass.
• Provides reliable backdraft prevention.

Technical Specifications by Model:

Model: ARL-APC10-2-30(D1)

• Size: 100 mm (4 inch)
• Rated Power: 10 W
• Nominal Air Volume: 66 m³/h
• Speed: 1800 r/min
• Noise: 40 dB(A)
• Opening Size: φ112-116 mm
• Applicable Area: 4-7 m²
• Quantity per package: 20 Pc
• Gross Weight: 15 kg
• Packing Size (L x W x H): 545 x 340 x 365 mm
• 3C Certificate: Yes
• Energy Efficiency Rating: 1
• Dimensions (mm): A: 161, B: 161, C: 41, D: 56, E: φ102

Model: ARL-APC15-2-30(D1)

• Size: 150 mm (6 inch)
• Rated Power: 16 W
• Nominal Air Volume: 180 m³/h
• Speed: 1350 r/min
• Noise: 44 dB(A)
• Opening Size: φ161-165 mm
• Applicable Area: 7-10 m²
• Quantity per package: 18 Pc
• Gross Weight: 18.5 kg
• Packing Size (L x W x H): 660 x 325 x 465 mm
• Energy Efficiency Rating: 2
• 3C Certificate: Yes
• Dimensions (mm): A: 206, B: 206, C: 41, D: 59, E: φ148
