Wireless Backup Camera System With 7 Inch HD Monitor ARL-MS-708RSW-3-C

SKU: ARL-MS-708RSW-3-C Categories: 7 Inch Wireless system, Driving Control Systems, Wireless Rear View System

Wireless Backup Camera System With 7 Inch HD Monitor (ARL-MS-708RSW-3-C)

The ARL-MS-708RSW-3-C is a specialized 3-channel camera system designed for RVs, trailers, coaches, and trucks, integrating both wireless and wired camera technology. Wireless Backup Camera System With 7 Inch HD Monitor features two wired side-view cameras and a wireless rear-view camera, allowing for comprehensive monitoring around the vehicle. The wireless vision enables seamless transmission from a camera installed on a trailer to the monitor in the cab, delivering image clarity comparable to wired systems. The system offers intelligent automatic switching: when a turn signal is activated, the display automatically switches to the corresponding side camera’s full-screen view, and when reversing, it automatically switches to the full-screen view of the wireless rear camera. The wireless transmission boasts a range of up to 500 meters and utilizes HD, interference-free technology for reliable performance.

Key Features:

Hybrid Wireless & Wired System: Combines the benefits of both technologies.
Ideal for Large Vehicles: Specifically designed for RVs, trailers, coaches, and trucks.
Two Wired Side Cameras: Provide clear side visibility.
Wireless Rear Camera: Offers convenient installation on trailers.
Clear Wireless Image: Image quality comparable to wired connections.
Automatic Side View Switching: Activates full-screen side view with turn signals.
Automatic Rear View Switching: Activates full-screen rear view when reversing.
Long Wireless Range: Up to 500 meters transmission distance.
HD & Interference-Free: Ensures clear and stable video.

Technical Specifications:

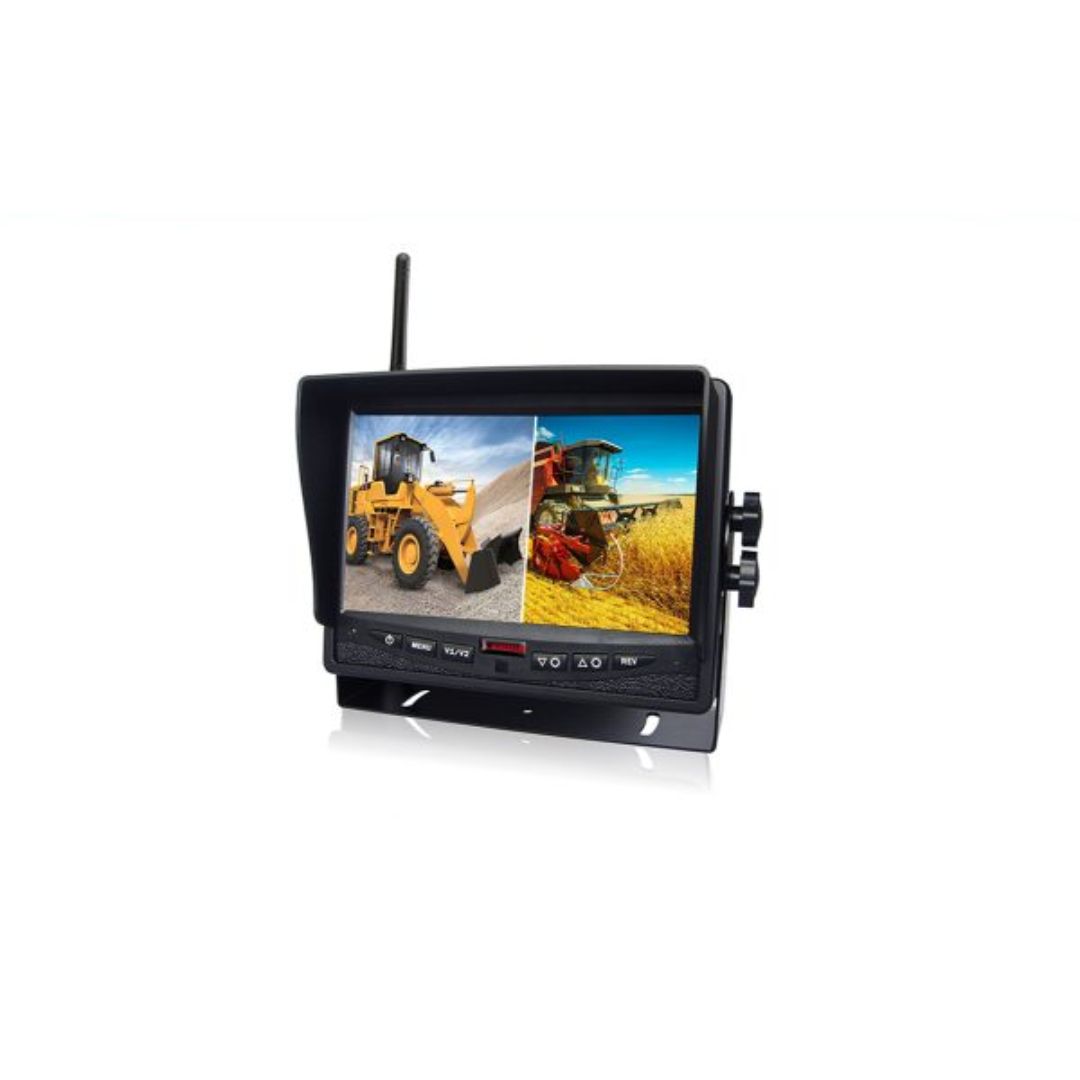

Wireless HD Monitor:

Feature	Specification
Panel Size	7” Digital HD Panel
Screen Ratio	16:9
Resolution	1024 * 3(RGB) * 600
Back Light / Luminance	LED / 350cd/m2
Contrast	1000:1
Viewing Angle (U/D/L/R)	UP–50º, DOWN–70º, LEFT–70º, RIGHT–70º
Transmitting Distance	1500M in Open Area (System range: 500M)
Power Supply	DC 10-36V
Power Consumption	<5W
Maximum Current	<550mA
Working Temperature	-20 to 60 ºC
Storage Temperature	-20 to 70 ºC

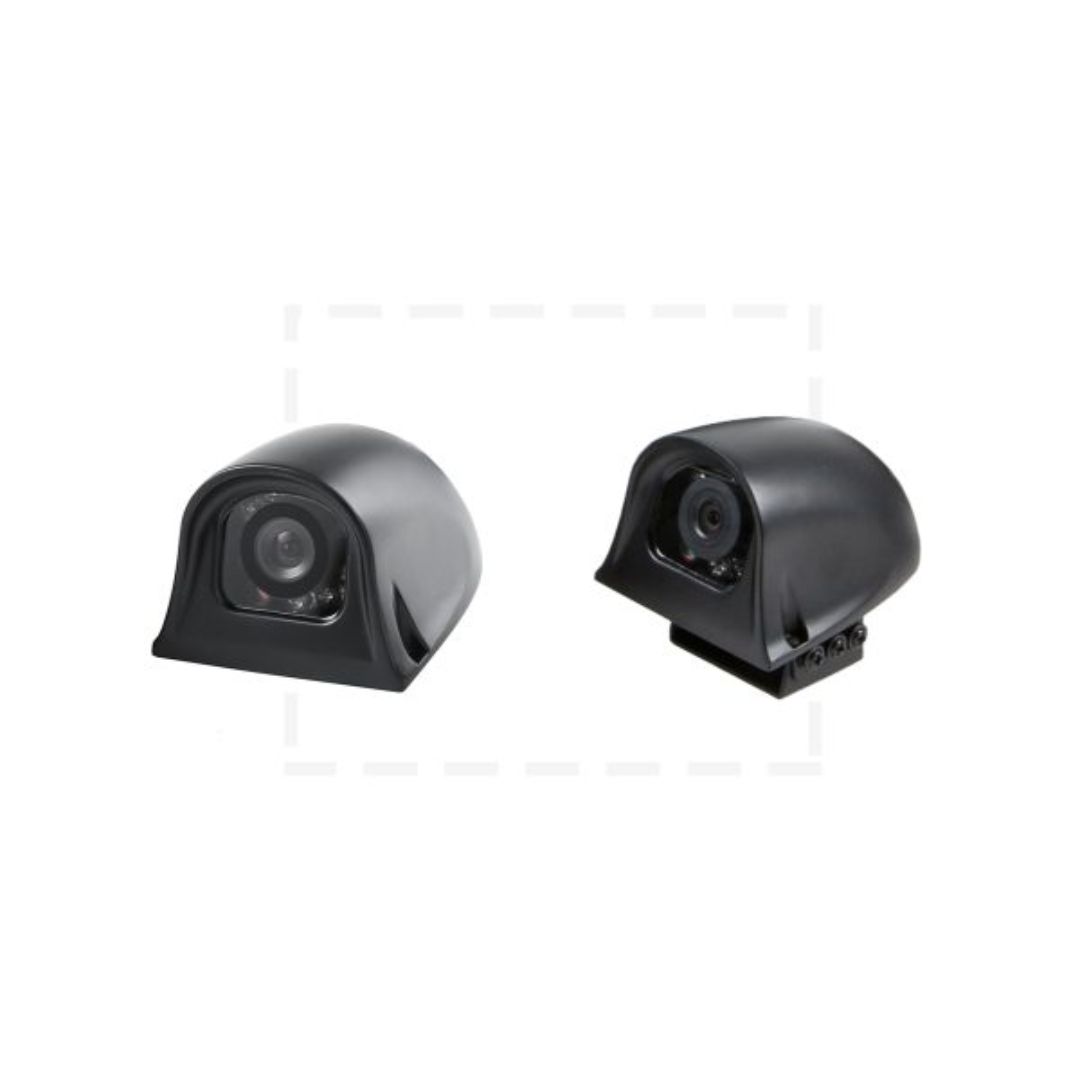

Wired HD Side-View Camera:

Feature	Specification
Pixels	1280(H) X 720(V)
Resolution	720P
Minimum Light	0 Lux (LED ON)
S/N Ratio	More than 48 Db
Video Output	1Vp-p 75Ω
Voltage	DC12V(+/-15%)
View Angle	90 Degree
Night Vision	9pcs IR LED
Waterproof	IP69K

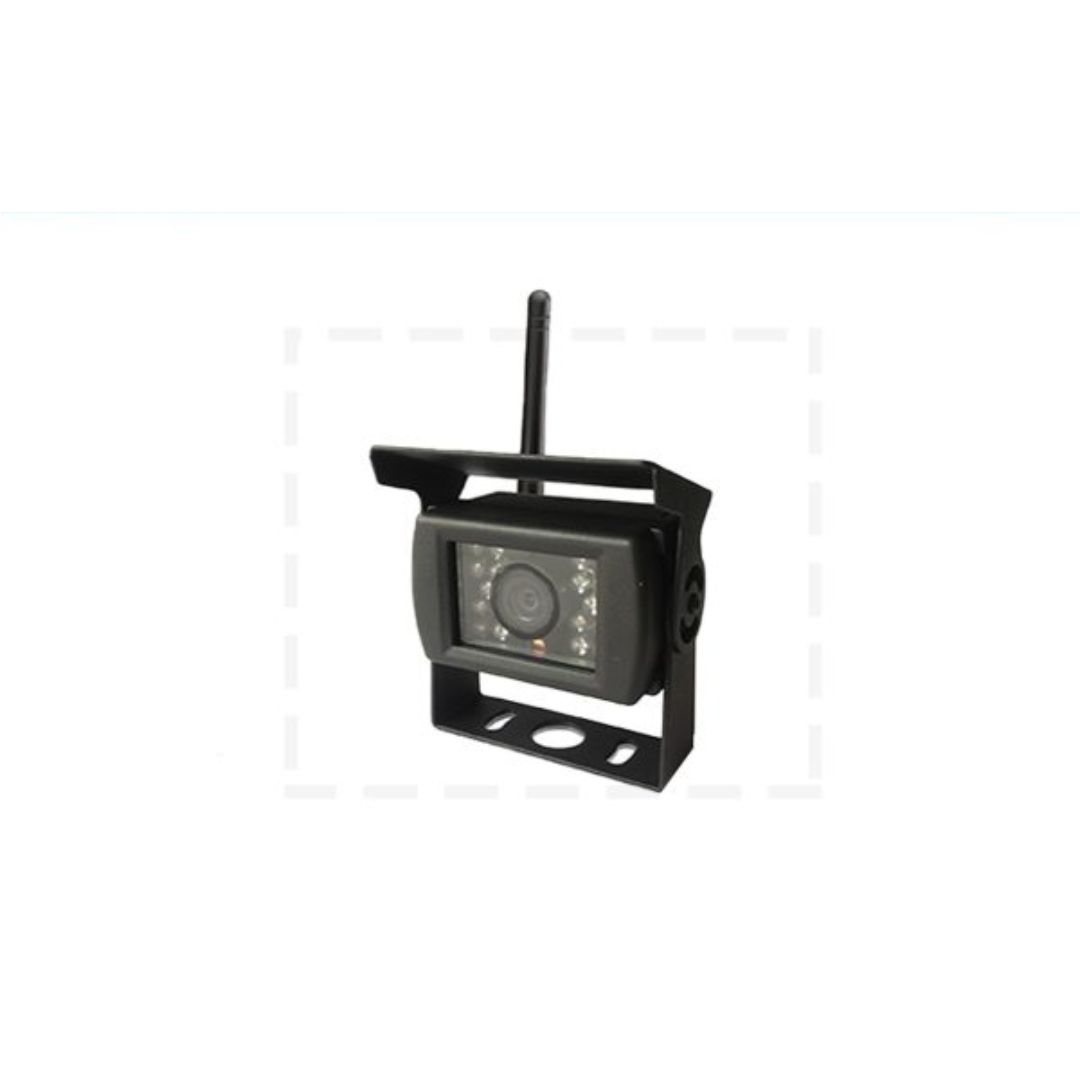

Wireless HD Rear-View Camera:

Feature	Specification
Image Sensor	1/3” Color
Active Pixels	1292 * 968V
Chief Ray Angle	9 Degrees Linear
Night Vision Range	About 5M
Audio Input	High Sensitivity, -36DB Microphone
Waterproof Level	IP69K
Wireless Trans. Dist.	1500M in Open Area (System range: 500M)
Power Supply	DC 10-36V
Power Consumption	<5W
Viewing Angle	120 Degree
S/N Ratio	More than 48 Db
Electron Shutter	1/100,000(s), ON/OFF
Video Output	1Vp-p 75Ω
Maximum Current	<250mA
Working Temperature	-20 to 60 ºC
Storage Temperature	-20 to 70 ºC

This Wireless Backup Camera System offers a smart and convenient solution for enhancing safety and maneuverability for large vehicles, combining the reliability of wired side cameras with the installation flexibility of a wireless rear camera and intelligent automatic switching.
