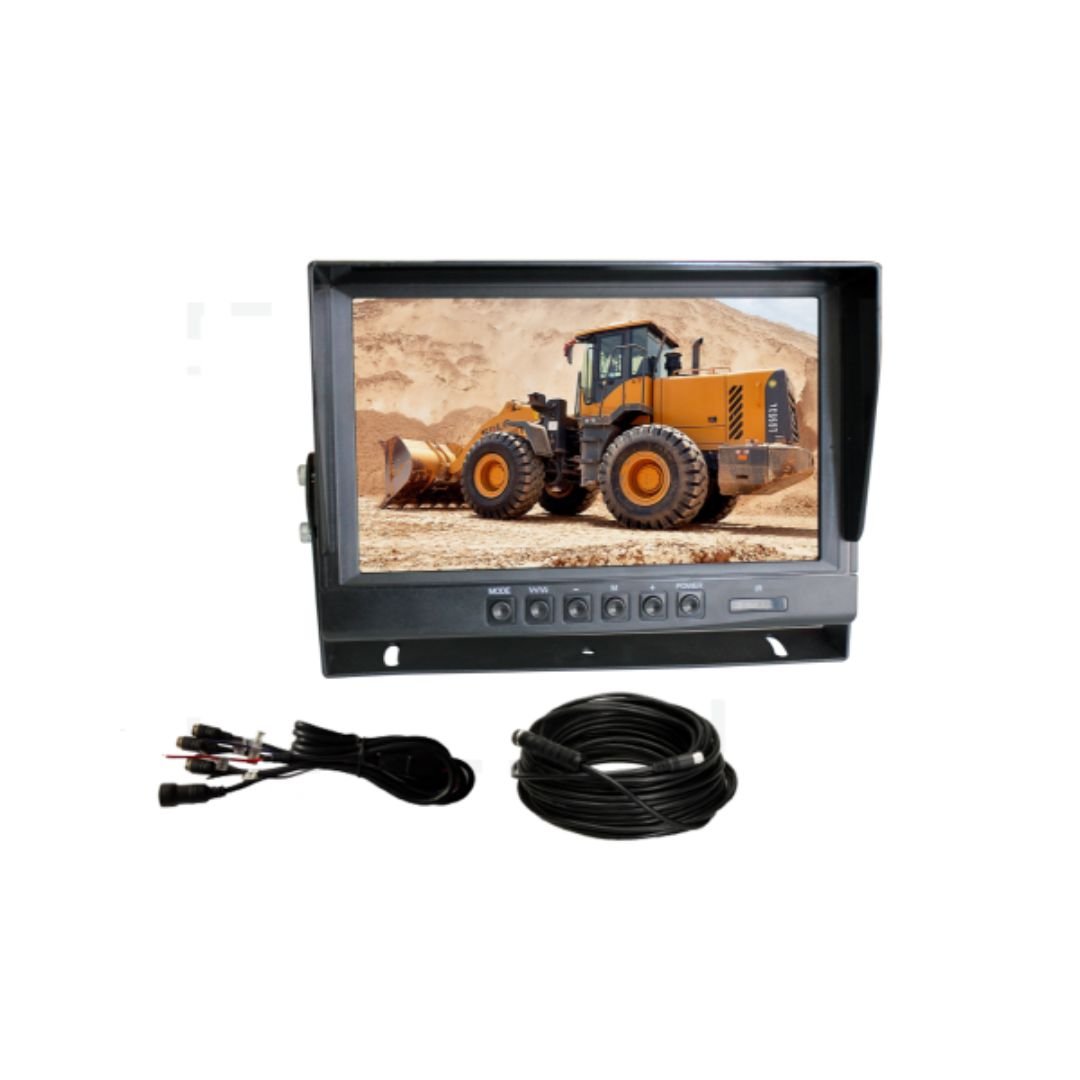

10.1″ HD Monitor with Auto Dimming & Multi-Channel Input ARL-MS-711

The ARL-MS-711 is a high-definition 10.1-inch LED digital panel monitor designed for versatile vehicle applications. 10.1″ HD Monitor with Auto Dimming & Multi-Channel Input (ARL-MS-711) supports a wide input voltage range from 10VDC to 36VDC and features integrated audio. The high-resolution display of 1024 x 600 pixels ensures clear and detailed visuals. Equipped with a CDS sensor, the monitor offers automatic brightness adjustment for optimal viewing in varying lighting conditions, with an option for manual adjustment as well. It supports 1, 2, or 3 channel camera inputs with corresponding trigger inputs, offering flexibility for different surveillance setups. The monitor automatically detects NTSC/PAL video systems and presents a 16:9 widescreen aspect ratio with a contrast ratio of 500:1 and wide viewing angles. Additional features include a built-in 0.5W speaker, 6G impact rating, image rotation capabilities, and automatic power on/off via ACC. It operates reliably in temperatures ranging from -20°C to 70°C.

Key Features:

• Wide Voltage Input: Compatible with 10VDC to 36VDC power systems.
• High-Resolution Display: 10.1″ LED panel with 1024 x 600 pixels.
• Automatic Dimming: Adjusts brightness automatically via CDS sensor.
• Multi-Channel Input: Supports 1, 2, or 3 camera inputs with trigger functionality.
• Automatic Video System Detection: Compatible with NTSC and PAL.
• Widescreen Format: 16:9 aspect ratio for optimal viewing.
• Built-in Speaker: Features a 0.5W speaker for audio output.
• High Impact Rating: Robust design with a 6G impact rating.
• Image Rotation: Supports left, right, up, and down image flipping.
• Automatic Power Control: Powers on and off automatically with the vehicle’s ACC.
• Wide Operating Temperature: Suitable for use in -20°C to 70°C environments.

Monitor Specifications:

• Panel Size: 10.1” LED Digital Panel
• Video System: NTSC / PAL Automatic detection
• Resolution: 1,024 x 3(RGB) x 600 Pixels
• Brightness: 400 cd/㎡
• Screen Mode: 16 : 9 Wide Screen
• Contrast: 500:1
• Field of View: U:70/D:80 L/R:80
• Camera Input: 1CH, 2CH, 3CH optional
• Dimmer: Automatic by CDS sensor or Manual Adjustment
• Audio Output: 0.5W speaker
• Impact Rating: 6G
• Image Rotation: Left/right/up/down
• Power Input: DC10-36V / Automatic Power On/Off by ACC
• Operating Temperature: -20°C ~ 70°C

Optional Camera Specifications:

• Excellent Night View: 0Lux with IR LED
• D-WDR: Wide Dynamic Range for improved image quality in varying light.
• High-Resolution: Delivers clear images.
• LED Auto On/Off: CDS sensor for automatic IR LED control.
• True Day & Night: IR filter changeable for optimal day and night vision.
• Full Waterproof: IP68 rating for reliable operation in harsh conditions.
• Infrared LED: For enhanced night vision.
• Microphone: Optional audio recording.
• Effective Pixels: 1288(H) x 728(V)
• Video Signal System: AHD
• Max. Frame Rate: 1280X720@30fps
• S/N Ratio: 50dB or more (AGC OFF)
• Minimum Illumination: 0Lux (With IR LED)
• Lens: (F2.5), 120° viewing angle
• Mechanical Day & Night: Optional IR filter switching.
• Power Input: 12V(±20%)
• Power Consumption: IR ON Max (180mA), IR OFF Max (90mA)
• Operating Temperature: -20°C ~ 70°C
• Ambient Humidity: RH 85% max.
• Weight: 0.5kg
