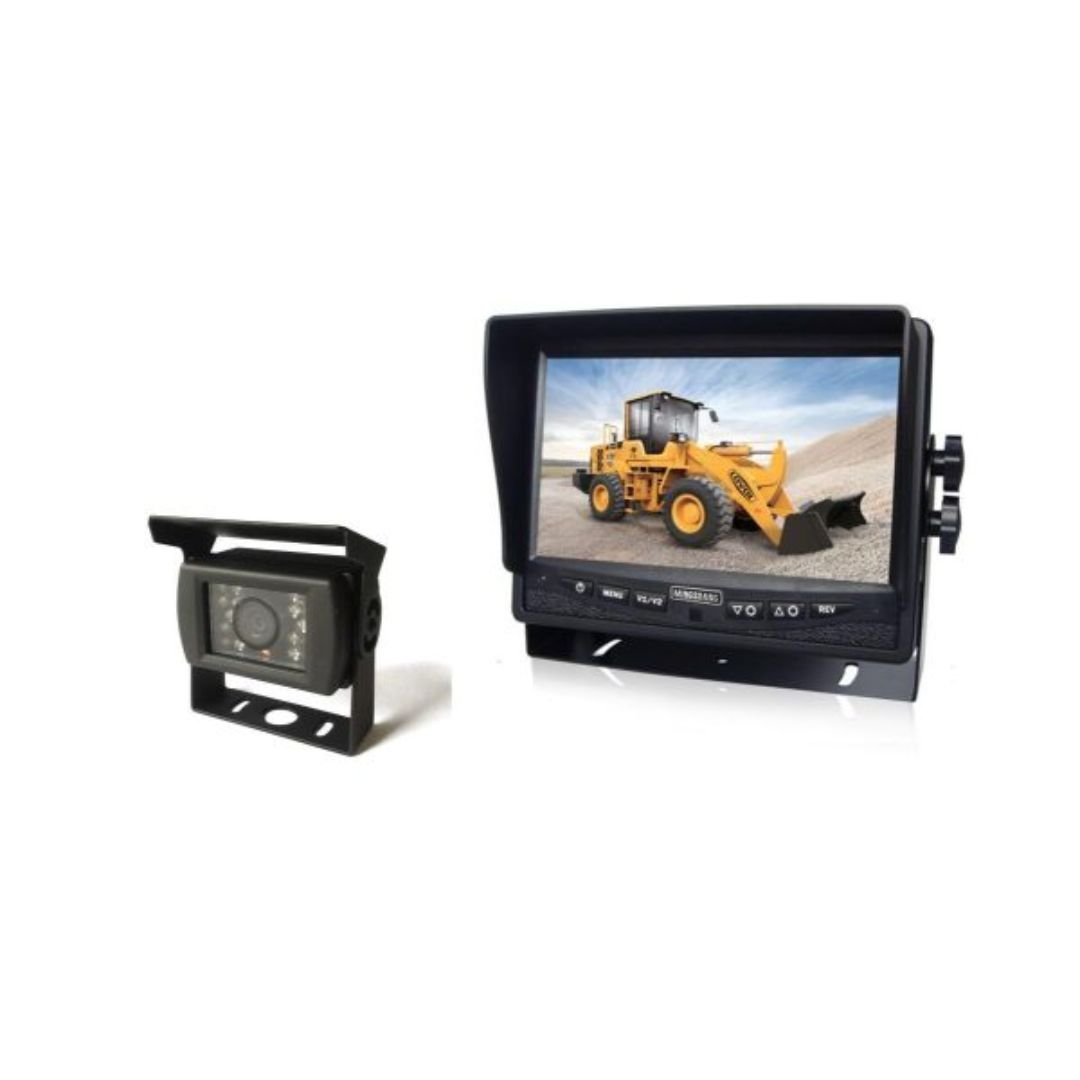

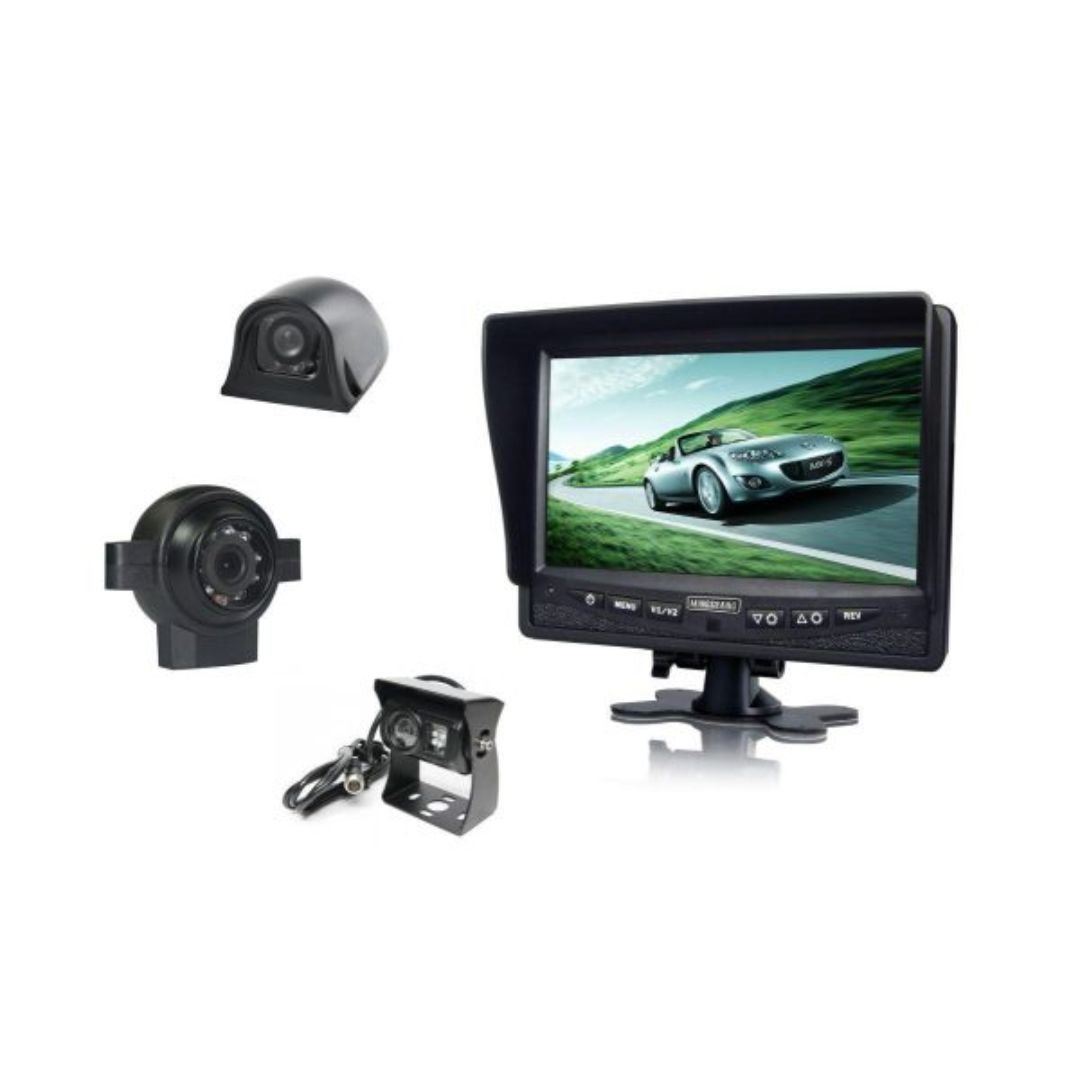

7 Inch HD Rear View Camera System (ARL-MS-708RSCHD)

The ARL-MS-708RSCHD is a high-definition rear view camera system featuring a bright 7-inch TFT LCD monitor and an optional high-performance HD CMOS camera. The monitor offers a sharp resolution of 1024 x 600 and supports automatic PAL/NTSC video system detection. It features a wide field of view (85° in all directions) for comprehensive coverage and can accommodate up to 4 camera inputs with 720P resolution. Designed for versatility, the system supports a wide DC10-36V power input with automatic power on/off via ACC. A sunshade is included, and various bracket options are available for flexible installation. The monitor also offers automatic or manual dimming via a CDS sensor and supports image rotation. The optional HD CMOS camera delivers 720 TV Lines resolution, excellent night vision with 18 IR LEDs, and a wide 120-degree viewing angle. Its IP69K waterproof rating ensures reliable performance in demanding conditions.

Key Features:

High-Resolution 7 Inch HD Monitor: Delivers crisp and clear visuals (1024 x 600).
Wide Field of View: 85° viewing angle in all directions for the monitor.
Multi-Camera Support: 4CH 720P video inputs for versatile setups.
Wide Voltage Input: Compatible with DC10-36V power systems.
Automatic Power Control: Powers on/off with the vehicle’s ACC.
Included Sunshade: Reduces glare for better visibility.
Flexible Installation: Optional brackets available.
Automatic/Manual Dimming: Adjusts screen brightness as needed.
Image Rotation: Supports up/down image flipping.
Optional HD Camera: 720 TV Lines resolution with excellent night vision.
Waterproof Camera: IP69K rating for reliable performance.

Technical Specifications:

7” HD TFT LCD Monitor (ARL-MS-708):

Feature	Specification
Picture Display Format	16:9
Resolution	1024 * 3(RGB) * 600
Video System	PAL / NTSC Automatically
Contrast	450:1
Brightness	400cd/m2
Field of View (U/D/L/R)	Top 85°/ Bottom 85° / Left 85° / Right 85°
Dimmer	Automatic by CDS Sensor or Manual Adjust
Video Input	4CH 720P
Audio Input	0.5W Speaker
Impact Rating	6G
Image Rotation	Up/Down
Power Input	DC10-36V, Automatic Power On/Off by ACC
Mounting	With Sunshade & Optional Bracket
Operation Temperature	– 30℃~+70℃
Storage Temperature	– 40℃~+ 80℃
Weight	450g / 0.99lbs

Optional HD CMOS Camera (ARL-MS-750):

Feature	Specification
Sensor	LED Auto On/Off CDS Sensor
Video Signal System	AHD
Waterproof Rating	IP69K
Effective Pixels	1288 ( H ) X 494 ( V)
Max. Frame Rate	1280*720@60 fps
Resolution	720 TV Lines
Minimum Light	0 Lux (LED ON)
S/N Ratio	More than 50 Db
Dynamic Range	D-WDR (Wide Dynamic Range)
Day & Night	Mechanical Day&Night
Video Output	1Vp-p 75Ω
Voltage	DC12V (+/-15%)
Power Consumption	IR On Max (180mA)
View Angle	F2.5, 120 Degree
Ambient Humidity	RH 85% max
Night Vision	18pcs IR LED
Material	Zinc-alloy

This 7 Inch HD Rear View Camera System offers a high-quality and versatile solution for enhancing vehicle safety and visibility with its sharp display and optional robust camera.
