Ducted Ventilation Fan All Plastic Body/Engineering Type ARL-BPT10/15/20-12/30-(P7A/B) Series

Ducted Ventilation Fan All Plastic Body/Engineering Type ARL-BPT10/15/20-12/30-(P7A/B) Series

The Ducted Ventilation Fan All Plastic Body/Engineering Type ARL-BPT10/15/20-12/30-(P7A/B) Series are designed as an “engineering type” solution, featuring a robust, all-plastic body that ensures durability and a lightweight profile. These fans boast a low-profile housing design, guaranteeing a proper and seamless fit within any ceiling, maintaining a clean and unobtrusive aesthetic. Engineered for efficient and discreet air circulation, they are also incredibly easy to install and clean. This versatile series is an ideal ventilation solution for a wide range of spaces, including bathrooms, laundry rooms, sunrooms, basements, and garages.

Key Features:

• All-Plastic Body: Durable and lightweight “engineering type” construction.
• Low-Profile Housing Design: Ensures a proper and discreet fit in any ceiling.
• Easy to Install and Clean: Designed for user convenience and straightforward maintenance.
• Versatile Application: Ideal for use in bathrooms, laundry rooms, sunrooms, basements, or garages.

Technical Specifications:

Models: ARL-BPT10-12-30(P7A) & ARL-BPT10-12-30(P7B)

• Duct Diameter: Ø100 mm
• Rated Power: 26 W
• Nominal Air Volume: 132 m³/h
• Nominal Pressure: 65 Pa
• Speed: 1200 r/min
• Noise Level: 45 dB(A)
• Opening Size: 200×200 mm
• Applicable Area: 8-12 m²
• Quantity (per packaging): 6 Pcs
• Gross Weight: 10 kg
• Packing Size (LWH): 520x270x575 mm
• 3C Certification: Yes
• Energy Efficiency Rating: 2

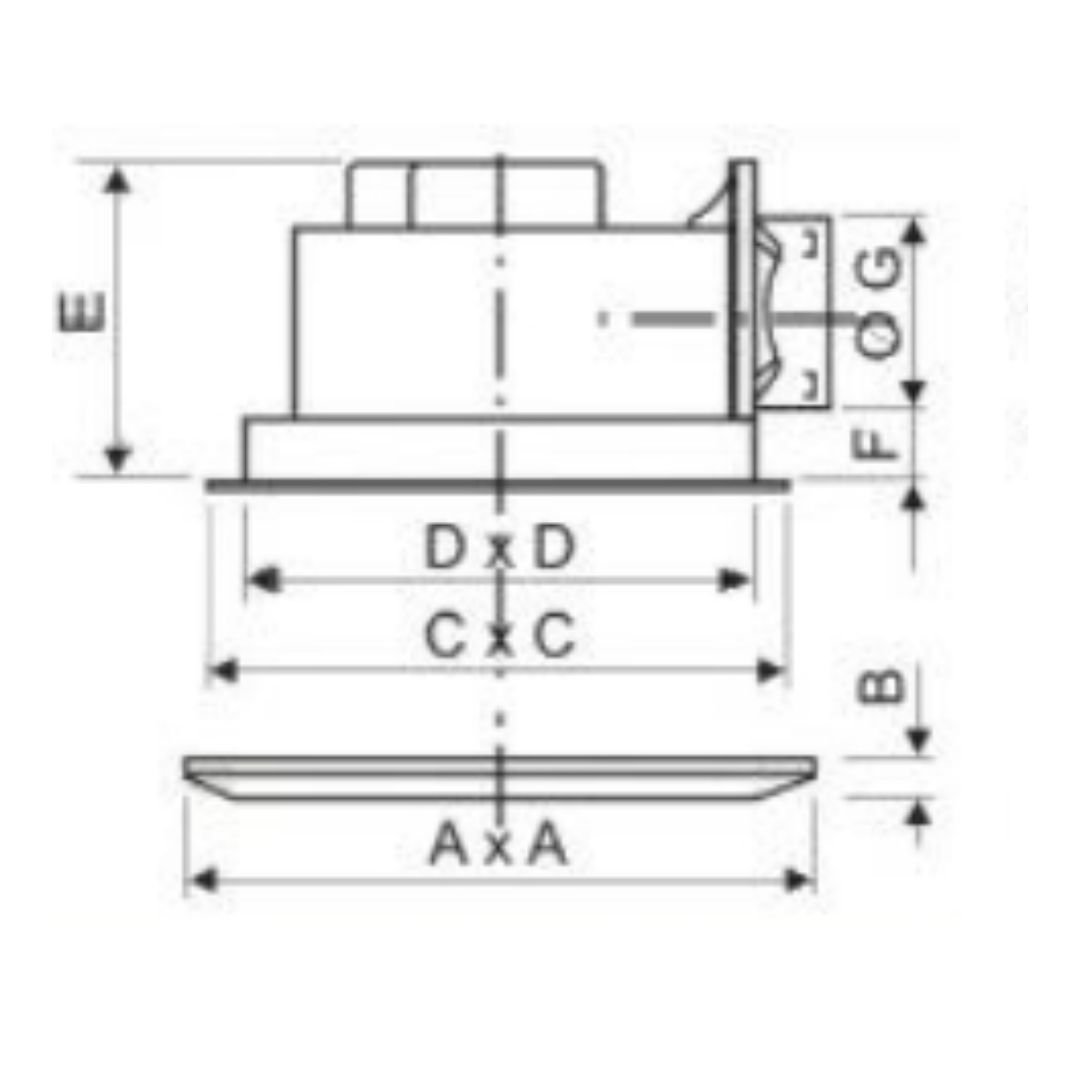

• Dimensions (mm): A: 246, B: 20, C: 239, D: 195, E: 150, F: 29, G: Ø100

ARL-BPT15-12-30(P7A) & ARL-BPT15-12-30(P7B)

• Duct Diameter: Ø100 mm
• Rated Power: 28 W
• Nominal Air Volume: 168 m³/h
• Nominal Pressure: 98 Pa
• Speed: 1000 r/min
• Noise Level: 46 dB(A)
• Opening Size: 240×240 mm
• Applicable Area: 15-20 m²
• Quantity (per packaging): 6 Pcs
• Gross Weight: 11.5 kg
• Packing Size (LWH): 535x310x660 mm
• 3C Certification: Yes
• Energy Efficiency Rating: 3
• Dimensions (mm): A: 288, B: 20, C: 280, D: 231, E: 156, F: 29, G: Ø100

Models: ARL-BPT20-12-30(P7A) & ARL-BPT20-12-30(P7B)

• Duct Diameter: Ø100 mm
• Rated Power: 32 W
• Nominal Air Volume: 186 m³/h
• Nominal Pressure: 110 Pa
• Speed: 1000 r/min
• Noise Level: 47 dB(A)
• Opening Size: 290×290 mm
• Applicable Area: 25-30 m²
• Quantity (per packaging): 6 Pcs
• Gross Weight: 13.5 kg
• Packing Size (LWH): 550x370x765 mm
• 3C Certification: Yes
• Energy Efficiency Rating: 3
• Dimensions (mm): A: 345, B: 20, C: 337, D: 289, E: 158, F: 29, G: Ø100
