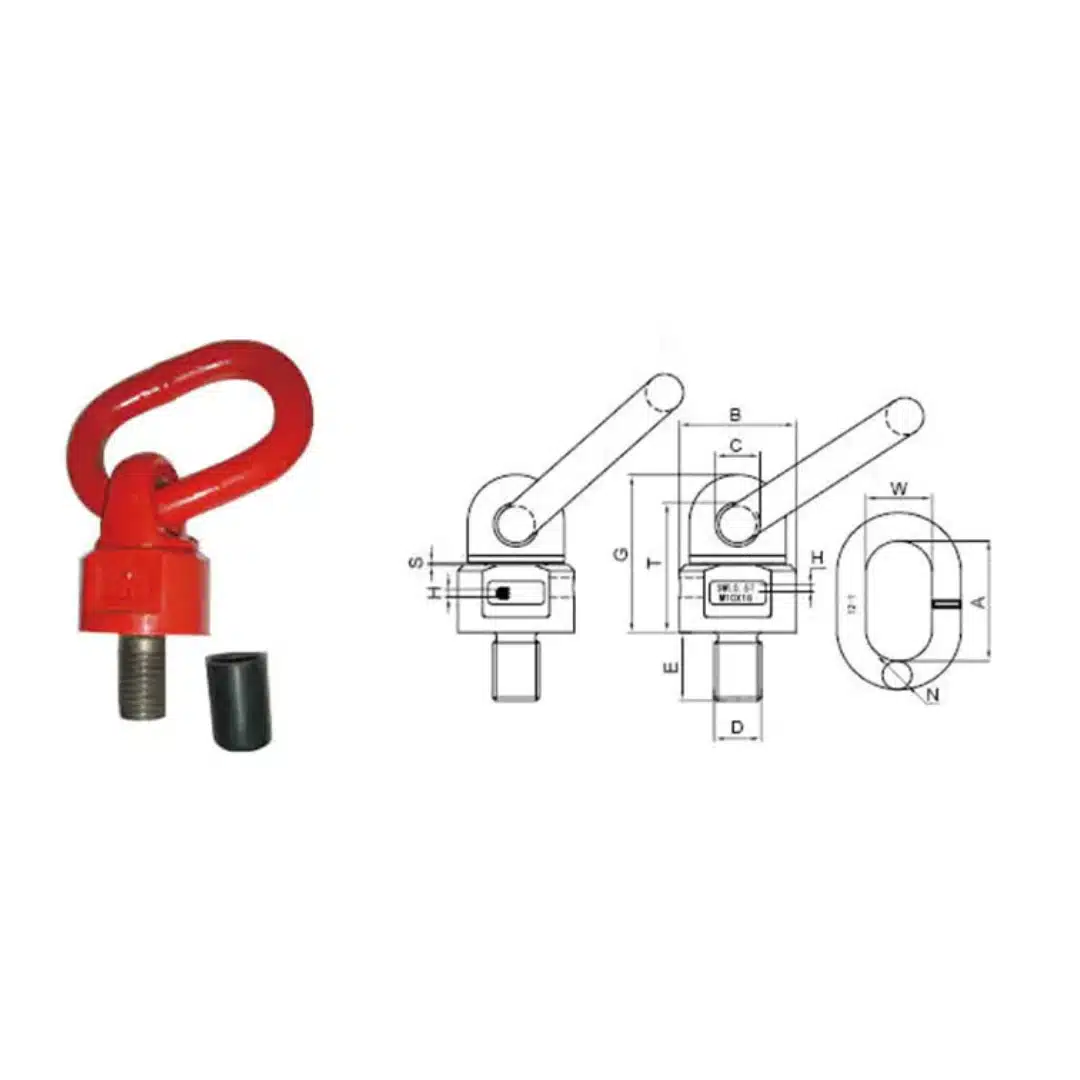

    G80 Lifting Screw Point

    The G80 lifting point thread is made of forged super alloy steel-quenched and tempered.Individually proof test at 2.5times Working Load Limit.

    G80 Lifting Screw Point with ring has been powder coated,suit for multi-directional lifting applications.

    Item No. Size WLL (tons) DxE B C G T A W N H S N.W.
    mm 90° 0° mm mm mm mm mm mm mm mm mm kg
    ARL-TY022291 M8 0.3 0.6 M8x13 36 16.5 51 41 55 30 14 3 1 0.41
    ARL-TY022292 M10 0.45 0.9 M10x18 36 16.5 51 41 55 30 14 3 1 0.43
    ARL-TY022293 M10x90 0.5 1 M10x90 36 16.5 51 41 55 30 14 3 1 0.38
    ARL-TY022294 M12 0.5 1 M12x18 36 16.5 51 41 55 30 14 3 1 0.44
    ARL-TY022295 M12x40 0.45 1 M12x40 36 16.5 51 41 55 30 14 3 1 0.52
    ARL-TY022296 M12x45 0.5 1 M12x45 36 16.5 51 41 55 30 14 3 1 0.47
    ARL-TY022297 M12x110 0.5 1 M12x110 36 16.5 51 41 55 30 14 3 1 0.53
    ARL-TY022298 M14 1.12 2 M14x20 36 16.5 51 41 55 30 14 3 1 0.45
    ARL-TY022299 M16 1.12 2 M16x40 36 16.5 52 42 55 30 14 3 1 0.46
    ARL-TY022300 M16x40 1.12 2 M16x100 36 16.5 52 42 55 30 14 3 1 0.48
    ARL-TY022301 M16x100 1.12 2 M16x100 36 16.5 52 42 55 30 14 3 1 0.54
    ARL-TY022302 M16x120 1.12 2 M16x120 36 16.5 52 42 55 30 14 3 1 0.6
    ARL-TY022303 M20 2 4 M20x30 49.5 19 68 56 70 35 16 3.5 1 0.96
    ARL-TY022304 M20x120 2 4 M20x120 49.5 19 68 56 70 35 16 3.5 1 1.17
    ARL-TY022305 M24 3.15 6.3 M24x40 57 22 78 65.5 85 40 18 3.5 1.5 1.45
    ARL-TY022306 M24x40 3.15 6.3 M24x90 57 22 78 65.5 85 40 18 3.5 1.5 1.42
    ARL-TY022307 M24x90 3.15 6.3 M24x90 57 22 78 65.5 85 40 18 3.5 1.5 1.66
    ARL-TY022308 M24x120 3.15 6.3 M24x120 57 22 78 65.5 85 40 20 3.5 1.5 1.74
    ARL-TY022309 M27 3.15 6.3 M27x35 57 22 78 65.5 85 40 20 4 1.5 1.47
    ARL-TY022310 M30(5T) 5.3 10.6 M30x35 66 23.5 96.5 80.5 85 40 20 4 1.5 2.17
    ARL-TY022311 M30x38 5.3 10.6 M30x38 66 23.5 96.5 80.5 85 40 20 4 1.5 2.18
    ARL-TY022312 M30x120 5.3 10.6 M30x120 66 23.5 96.5 80.5 85 40 22 6 2 2.65
    ARL-TY022313 M30(8T) 8 11.8 M30x35 80 28 112 92 115 50 22 6 2 3.57
    ARL-TY022314 M30x38 8 11.8 M30x38 80 28 112 92 115 50 22 6 2 3.58
    ARL-TY022315 M30x120 8 11.8 M30x120 80 28 112 92 115 50 22 6 2 4.01
    ARL-TY022316 M36x90 8 11.8 M36x90 80 27 109 89.5 115 50 22 6 2 4.17
    ARL-TY022317 M36x400 8 11.8 M36x400 80 27 109 89.5 115 50 22 6 2 6.41
    ARL-TY022318 M39 8 11.8 M39x50 80 27 109 89.5 115 50 22 6 2 3.65
    ARL-TY022319 M39x90 8 11.8 M39x90 80 27 109 89.5 115 50 25 6 2.5 3.71
    ARL-TY022320 M42 10 15 M42x50 80 27 109 89.5 115 50 25 6 2.5 3.62
    ARL-TY022321 M42x60 10 15 M42x60 80 27 109 89.5 115 50 25 6 2.5 3.72
    ARL-TY022322 M42x130 10 15 M42x130 80 27 109 89.5 115 50 25 6 2.5 4.46
    ARL-TY022323 M42x180 10 15 M42x180 80 27 109 89.5 115 50 25 6 2.5 5
    ARL-TY022324 M45x60 10 15 M45x60 80 27 109 89.5 115 50 25 6 2.5 4.17
    ARL-TY022325 M48 10 15 M48x50 80 27 109 89.5 115 50 25 6 2.5 4.02
    ARL-TY022326 M48x110 10 15 M48x110 80 27 109 89.5 115 50 25 6 2.5 4.8
    ARL-TY022327 M56x84 15 25 M56x84 117 42 310 280 152 70 32 7 2.5 11.6
    ARL-TY022328 M64x95 15 25 M64x95 117 42 310 280 152 70 32 7 2.5 12.4
