Motorized Butterfly Valve

Motorized Butterfly Valve

The Motorized Butterfly Valve is a versatile industrial solution designed for automated flow control of gas, water, oil, and other similar mediums. This valve is available with various body materials, including Cast Iron, Ductile Iron, Aluminum, and Stainless Steel grades such as CF8, CF8M, and CF3M. It utilizes an electric actuator available in ON-OFF or adjustable types to manage system flow precisely. Engineered for compatibility with multiple international standards, the Motorized Butterfly Valve features a size range from 1″ to 40″ (DN50–DN1000) and can accommodate pressure ratings between 1.0 and 1.6Mpa.

Key Features:

• Automated Actuation: Features an electric actuator with ON-OFF and adjustable type options.
• Material Versatility: Disc options include Stainless Steel (CF3M, CF3, CF8M), Nylon Coated Ductile Iron, Aluminum Bronze, and Double Stainless Steel.
• Hazardous Environment Ready: Optional explosion-proof actuators are available in Exd II CT5 and Exd II BT5 ratings.
• Wide Control Support: Compatible with control signals including 4-20 mADC, 0-5 VDC, and 0-10 VDC.
• Flexible Installation: Available in Wafer and Lug end configurations to suit different piping requirements.

Technical Specifications:

• Body: Cast Iron, Ductile Iron, Aluminum, Stainless Steel (CF8, CF8M, CF3M).
• Disc: Stainless Steel CF3M, CF3, CF8M, Nylon Coated Ductile Iron, Aluminum Bronze, Double Stainless Steel (2507, 1.4529).
• Stem: Stainless Steel.
• Seats: NBR, EPDM, PTFE, VITON, FKM*, Polyurethane.
• Size: 1″ – 40″ (DN50 – DN1000).
• Pressure: 1.0 – 1.6Mpa.
• End Connections: Wafer, Lug.
• Flange Accommodation: EN 1092 PN 6/PN10/PN16, ASME Class 150, AS 4087 PN 10/ PN 16, JIS 5K/10K.
• Power: 12 VDC, 24 VAC, 24 VDC, 220 VAC, 120 VAC, 380 VAC 50/60 Hz ±10%.

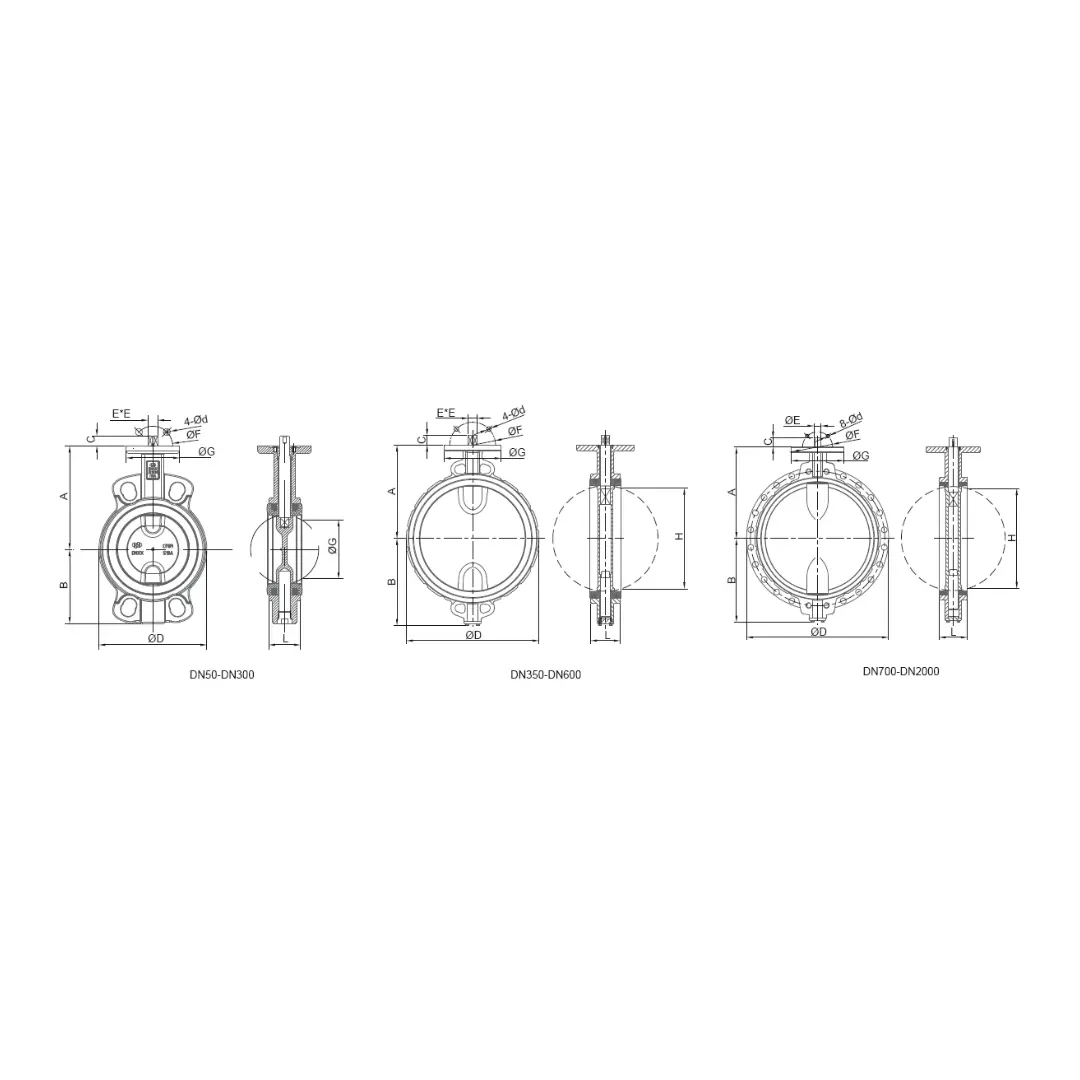

Dimensions and Weights Table

The following table details the dimensions and weight parameters for the valve sizes ranging from DN50 to DN2000
