Pneumatic Solenoid Valve

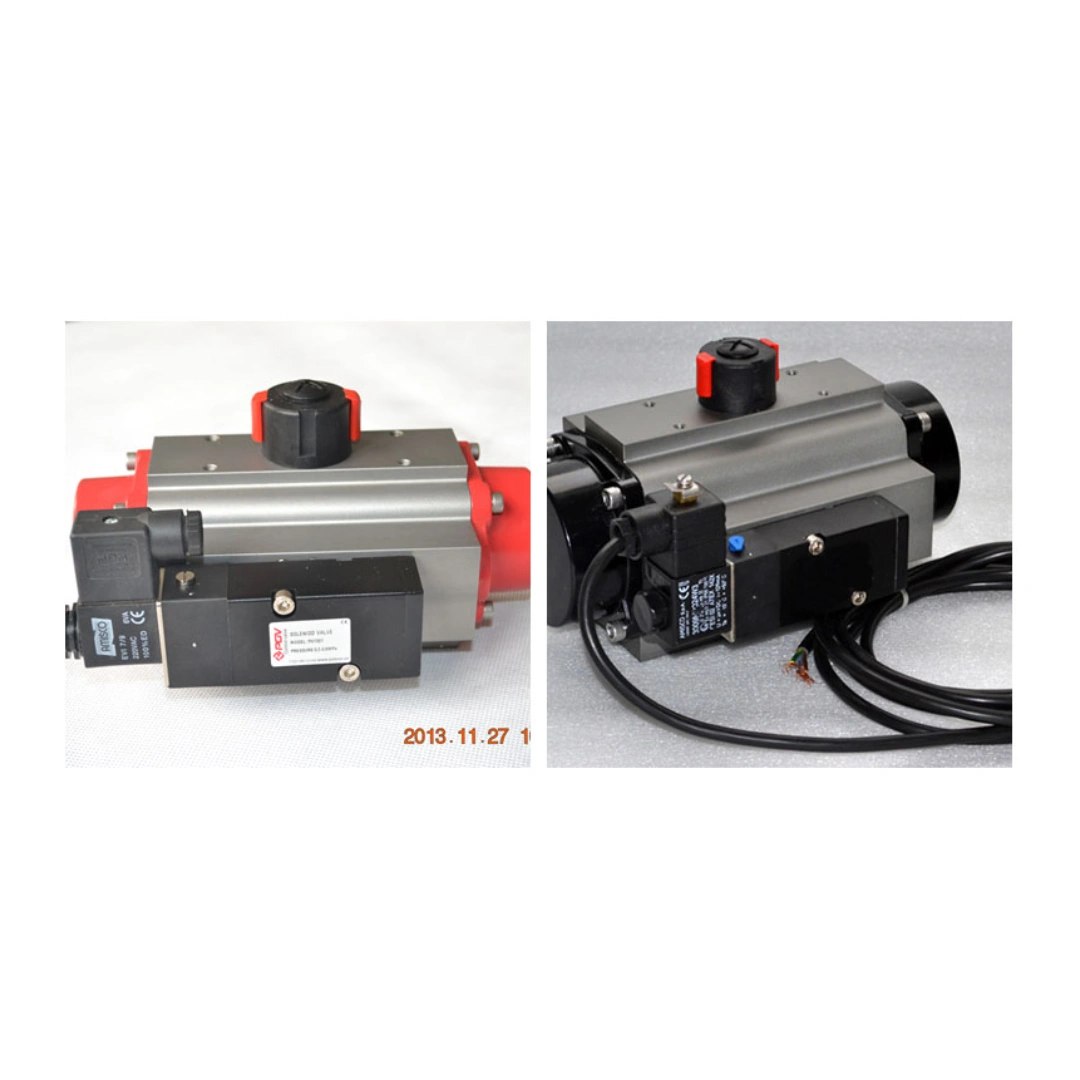

The Pneumatic Solenoid Valve ARL-RT is designed to efficiently open or close pneumatic valves by installing directly at the actuator’s air supply interface. Fully conforming to the NAMUR connection standard, this versatile component offers options such as two-position three-way, five-way, and two-five electric control or double electric control products. Integrating the Pneumatic Solenoid Valve ARL-RT into your system ensures easy installation matching ISO228/1 standards and specialized O-rings that remove the need for secondary lubrication. With reliable features like a manual switch for in-situ testing during blackouts and customizable voltages, it provides an optimized control solution for demanding environments.

Key Features:

Standardized Installation: Complies with ISO228/1 standards to guarantee an easy and straightforward installation process.
Maintenance-Free O-Ring: Features a specialized O-ring design that eliminates the need for a second lubrication.

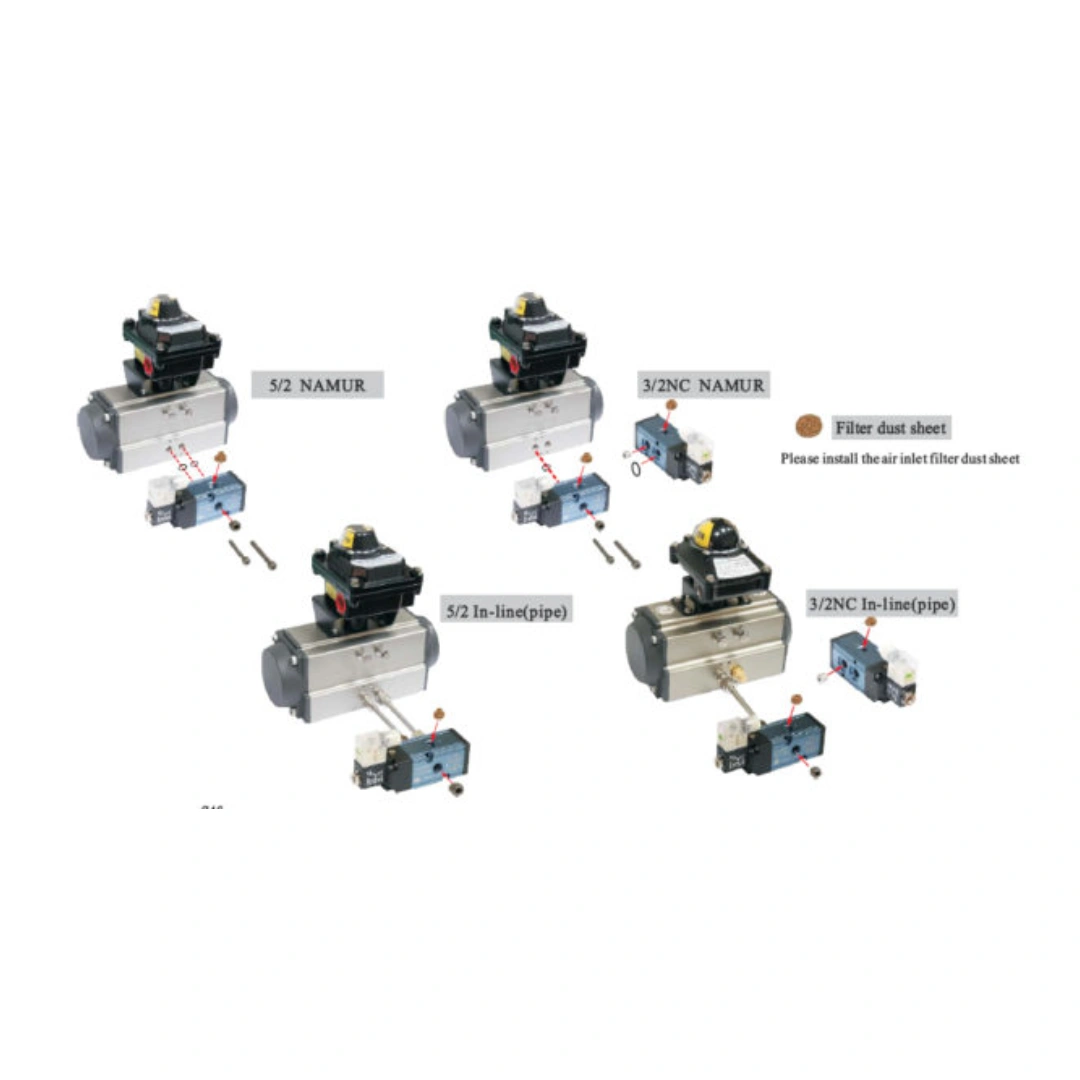

Flexible Conversion: The two-position five-way configuration can be directly converted into a two-position three-way setup.
Manual Testing Switch: Equipped with a manual switch allowing for convenient, in-situ testing when a blackout occurs.
Customizable Voltage: Voltage configurations can be fully customized to meet specific system electrical requirements.
Direct Actuator Mounting: Designed to install directly at the actuator’s air supply interface, conforming perfectly to the NAMUR connection standard.

Technical Specifications:

Interface: ISO228/1 standard G41/4
Environmental Temperature: -20°C to +50°C
Media: Filtration (50mm lubrication or compressed air, -20°C dew point)
Reversing Time: About 40ms
Installation: NAMUR standard, DI/VDE3845 double holes
Standard Voltage: 24VDC, 24VAC 50Hz, 110VAC 50Hz, and 220VAC 50Hz
Voltage Deviation: ±10% standard
Power Consumption: Standard coil: AC Pneumatic power 6VA, stable power 4.3VA / DC 2.6W (hot), 3W (cold)
Type of Operation: 100% ED(DB) continuous operation
Level of Protection: IP65 with DIN40050 proper installation adapter
Electrical Connection: Pg9 connection
