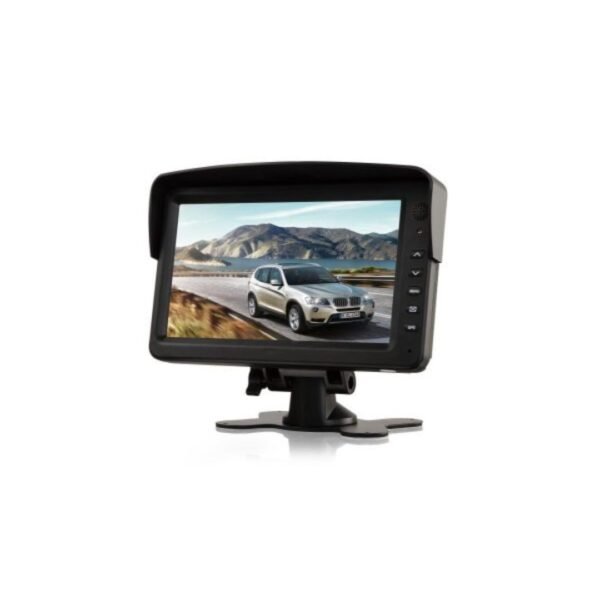

7″ Versatile TFT LCD Monitor with Auto Triggers & Dimming (ARL-MS-705)

The ARL-MS-705 is a highly adaptable 7-inch TFT LCD monitor, designed to enhance safety and convenience for various vehicle applications in India. 7″ Versatile TFT LCD Monitor with Auto Triggers & Dimming (ARL-MS-705) supports a broad input voltage range of DC10V to 36V and features integrated audio capabilities. This monitor provides flexible viewing options, allowing independent configuration of mirror or non-mirror views for each channel, accommodating diverse camera setups commonly found in vehicles across India. The inclusion of a dimming function ensures optimal screen visibility during both bright daylight and nighttime driving conditions prevalent on Indian roads.

Connectivity and Advanced Features:

This monitor can connect with up to three cameras, making it an excellent choice for comprehensive side and rear-view monitoring, significantly improving safety when navigating India’s often-congested traffic. Equipped with three automatic triggers, the display can seamlessly switch between camera views based on specific vehicle actions, such as indicating turns or reversing, enhancing driver awareness in typical Indian driving scenarios. The monitor’s buttons are equipped with automatic blue backlighting, ensuring ease of use during nighttime driving, a common occurrence on India’s highways and city streets. Adjustable grid lines offer valuable assistance for parking and maneuvering, particularly helpful in the tight spaces frequently encountered in Indian urban areas.

Robust Design and Installation Flexibility:

Built to withstand the shocks and vibrations typical of industrial and mobile applications, this monitor ensures reliable performance on India’s varied road surfaces. Furthermore, it offers a variety of installation options to suit the diverse interiors of vehicles found in India, including headrest mounting, bracket mounting, and flush mounting. The monitor also comes with an easy-to-install and remove sunshade cover, crucial for mitigating the intense sunlight often experienced while driving in India.

Display Specifications:

The 7-inch screen boasts a clear resolution of 800 x 3(RGB) x 480 and a contrast ratio of 500:1, ensuring good image quality for clear visibility of surroundings. It has a dot pitch of 0.192 (H) x 0.1790 (V) and provides comfortable viewing angles of U:50/D:60, L/R:70. The monitor supports the common input power range of DC10-36V and has a brightness of 400cd/m2. It automatically detects both PAL and NTSC video systems and is designed to be shock-resistant for mobile use. The 16:9 picture display format offers a modern viewing experience, and the monitor is engineered to operate reliably in a wide temperature range of – 30°C to +70°C, accommodating India’s diverse climate.

Key Features:

• 7 inch TFT LCD Monitor with Audio Support
• Wide Input Voltage (DC10V-36V)
• Independent Mirror/Non-Mirror Setting per Channel
• Automatic Dimming Function (Day/Night Mode)
• Supports up to 3 Camera Inputs
• 3 Automatic Triggers for Camera Switching
• Versatile Mounting Options (Headrest, Bracket, Flush)
• Automatic Blue Backlit Buttons
• Adjustable Grid Lines
• Industrial-Grade Shock and Vibration Resistance
• Wide Operating Temperature Range
• Easy-to-Install/Remove Sunshade

Technical Specifications:
