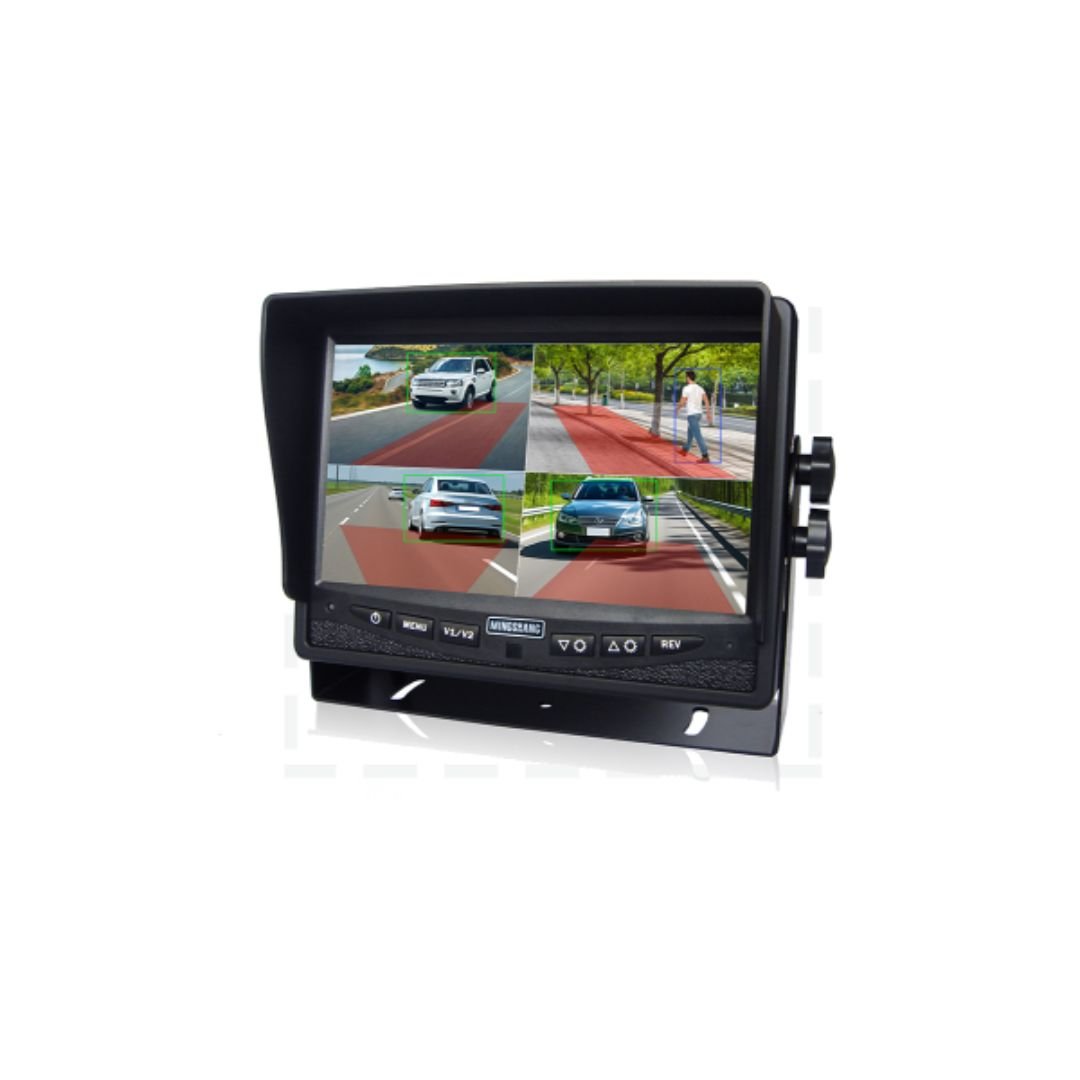

7 inch HD Quad View Monitor – Multi-Input, Wide Voltage ARL-MS-788KY

SKU: ARL-MS-788KY Categories: Driving Control Systems, Monitors, Quad view Monitors

7 inch HD Quad View Monitor – Multi-Input, Wide Voltage (ARL-MS-788KY)

The ARL-MS-788KY is a high-definition 7-inch monitor designed for comprehensive vehicle monitoring. 7 inch HD Quad View Monitor – Multi-Input, Wide Voltage (ARL-MS-788KY) supports four video channels and offers a 16:9 picture display format, providing a clear and wide view. The versatile quad system allows users to select between single, dual, triple, and quad image displays, catering to various monitoring needs. The monitor automatically detects both PAL and NTSC video systems, ensuring broad compatibility with different camera types.

Display and Operation:

Featuring a contrast ratio of 500:1 and a brightness of 400cd/m2, the display delivers good image quality. An included IR remote control offers convenient operation. The monitor supports a wide power supply range of DC10-36V and incorporates one channel of audio. It is designed to function reliably in a wide operating temperature range of -30℃ to +70℃ and can be stored in temperatures from – 40℃ to + 80℃.

Advanced Features:

Operating efficiently with a working voltage of DC 9V ~ 32V and a current of 290 mA (at DC 24V), the 7-inch display boasts a sharp resolution of 1024 (RGB) x 600 and a high contrast ratio of 800:1. It provides wide viewing angles of 85 degrees in all directions. The monitor supports an adjustable mirror function and offers multiple video display options, including full, double, triple, and quad screen. It includes 3CH trigger inputs for rear, left, and right views and a multi-language OSD menu.

Compliance and Durability:

The monitor supports AHD/1080P, AHD/720P, and CVBS video inputs (including mixed formats) and is built to meet stringent automotive standards, including ISO7637, ISO 16750-4, and ISO 16750-2. Its compact dimensions are 175 x 130 x 32mm (excluding sunshade), and it weighs approximately 0.4kg.

Key Features:

7 inch HD Quad View Monitor
Supports 4 Video Channels (AHD/1080P, AHD/720P, CVBS)
Wide Input Voltage (DC10-36V, Working 9-32V)
Quad Display System (Single, Dual, Triple, Quad)
Automatic PAL/NTSC Detection
High Brightness and Contrast
Wide Viewing Angles (85° in all directions)
Adjustable Mirror Function
3CH Trigger Inputs
Multi-Language OSD Menu
Meets ISO Standards for Automotive Use

Technical Specifications:

Feature	Specification
Model	ARL-MS-788KY
Screen Size	7 inch
Video Input	4 Channels (AHD/1080, AHD/720P, CVBS)
Power Supply	DC10-36V (Working DC 9V ~ 32V)
Picture Display Format	16:9
Display Modes	Single, Dual, Triple, Quad
Video System	PAL, NTSC Automatically
Contrast Ratio	500:1 (Listed as 800:1)
Brightness	400cd/m2
IR Remote Control	Yes
Audio Input	1 Channel
Operation Temperature	-30℃ ~ +70℃
Storage Temperature	– 40℃ ~ + 80℃ (Listed as -30℃ ~ +85℃)
Resolution	1024 (RGB) * 600
Dot Pitch	0.1506 (H) × 0.1432 (V) mm
Refresh Frequency	50Hz (P) / 60Hz (N)
Color Display	R.G.B.
Visual Angle (L/R/U/D)	L:85, R:85, U:85, D:85
Video Impedance	1VP-P / 75Ω
Frame Rate	25 / 30 FPS
Mirror Function	Support adjustable
Trigger	3CH trigger (Rear, Left, Right)
Language	OSD 7 languages optional (CN, EN)
Working Humidity	45% ～ 75%
Size (WxHxD)	175 * 130 * 32mm (excluding sunshade)
Net Weight	About 0.4kg
ISO Standards	ISO7637, ISO 16750-4, ISO 16750-2
