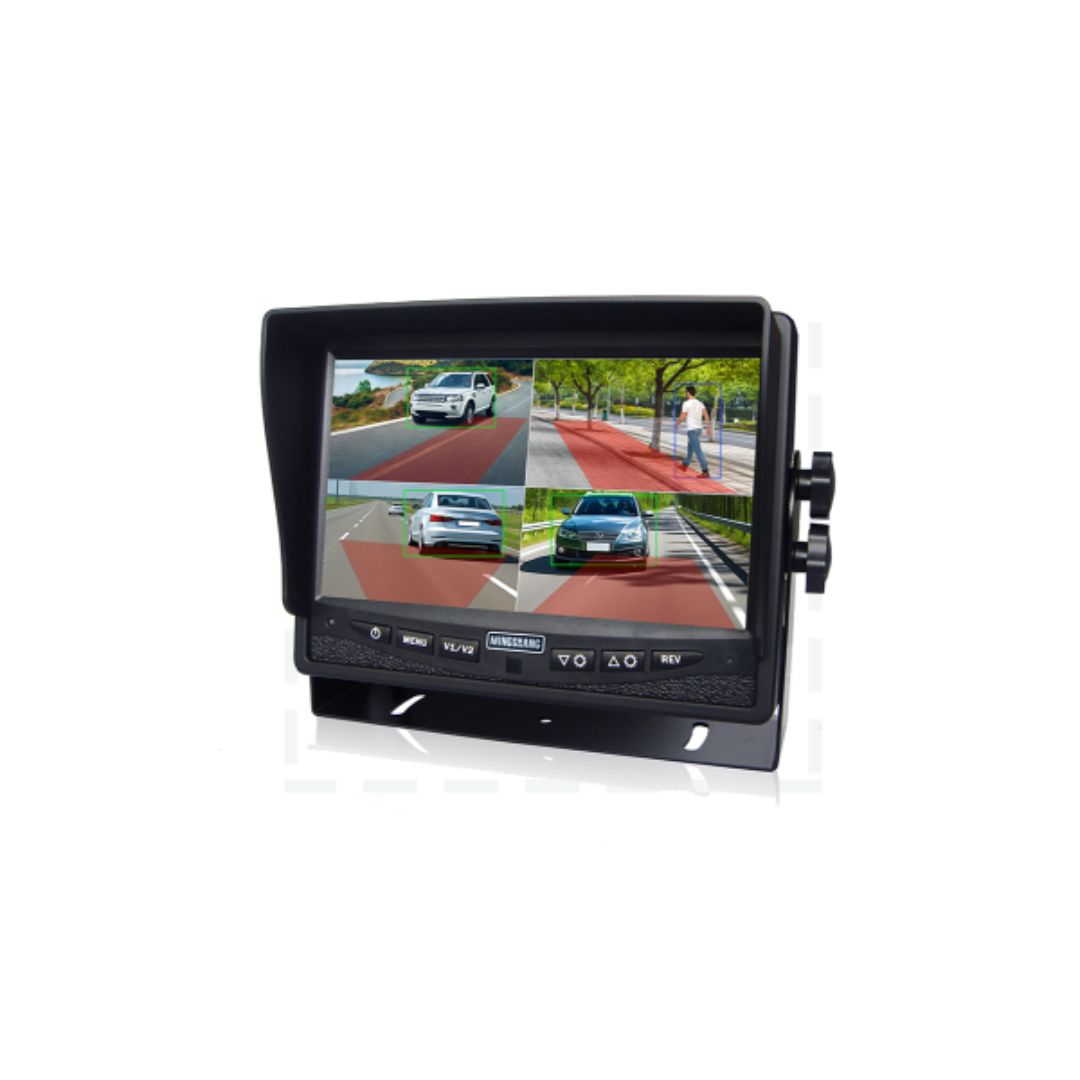

7-Inch Quad-View HD Monitor with Intelligent 4-Channel BSD ARL-MS-788BSD

7-Inch Quad-View HD Monitor with Intelligent 4-Channel BSD (ARL-MS-788BSD)

The ARL-MS-788BSD is a robust 7-inch high-definition monitor designed for comprehensive vehicle blind spot detection (BSD) and enhanced situational awareness. 7-Inch Quad-View HD Monitor with Intelligent 4-Channel BSD (ARL-MS-788BSD) main structure is built with durable ABS fireproof material and a sturdy metal bracket, ensuring reliable performance in demanding environments. The power input and output are equipped with overcurrent, reverse connection, and short circuit protection for added safety. Featuring a high-resolution 1024(RGB)*600 display with a 16:9 aspect ratio and 400cd/m² brightness, it provides clear and vibrant imagery from up to four connected cameras. The monitor supports both PAL and NTSC color systems and offers adjustable frame rates of 25/30 FPS. Drivers can customize their view with 1/2/3/4 image display options and utilize 3-channel trigger functionality for specific viewing scenarios. Image adjustments, including mirroring, are also supported.

This intelligent system supports AHD (720P) and CVBS video inputs, offering flexibility in camera selection. It enables quad-view display of front, left, right, and rear images, with the ability to adjust each image for optimal viewing. The advanced BSD functionality supports four distinct alarm areas, which can be adjusted based on camera installation. The integrated algorithm boasts a vehicle detection distance of over 25 meters and a pedestrian detection distance of 10 meters. The alarm areas can be precisely configured to match the specific blind spot zones as determined by the camera positioning.

Key Features:

• 7-Inch High-Definition Display: Clear and vibrant 1024(RGB)*600 resolution.
• Durable Construction: ABS fireproof material and metal bracket for robust performance.
• Comprehensive Power Protection: Overcurrent, reverse connection, and short circuit protection.
• Quad-View Display: Supports simultaneous viewing of up to 4 camera feeds.
• Adjustable Image Display: 1/2/3/4 image display options.
• 3-Channel Trigger Mode: Customizable viewing based on trigger events.
• Multi-Language Support: User-friendly menu in multiple languages.
• AHD/720P & CVBS Video Input: Compatible with various camera types.
• Image Adjustment: Supports image mirroring.
• Intelligent 4-Channel BSD: Detects vehicles up to 25m and pedestrians up to 10m.
• Adjustable BSD Alarm Areas: Four configurable alarm zones based on camera placement.
• Wide Operating Voltage: 9V to 32V compatibility.
• Wide Operating Temperature: -20℃ to +70℃ for reliable operation in various climates.
• Compact and Lightweight: Easy to install with dimensions of 182×122×29mm and a weight of 0.5kg.
• High Seismic Rate: Withstands vibrations up to 3G.

Technical Specifications:

• Product Model: ARL-MS-788BSD
• Operating Voltage: 9V ～ 32V
• Operating Current: <220mA/24V
• Screen Size: 7 inch
• Display Ratio: 16: 9
• Resolution: 1024（RGB）*600
• Contrast: 800
• Refresh Rate: 50Hz(P) / 60Hz(N)
• Color Display: R.G.B. stripe
• Brightness: 400cd/m2
• View Angle: L:85° R:85° U:85° D:85°
• Video Input Resistance: 1VP-P 75Ω
• Color System: PAL/NTSC
• Frame Rate: 25/30FPS
• Image Turn: Yes
• Mirror Image: Yes
• Screen Display: 1/2/3/4 image display adjustable
• Trigger Mode: 3CH trigger
• Language: Chinese, English, French, German, Spanish, Portuguese, Russian, Arabic
• Video Input: AHD/720P，CVBS
• Operating Temperature: -20℃ ～ +70℃
• Storage Temperature: -30℃ ～ +85℃
• Operating Humidity: 45% ～ 75%
• Size: 182×122×29mm
• Weight: 0.5kg
• Seismic Rate: 3G
• BSD Vehicle Detection Distance: >25m
• BSD Pedestrian Detection Distance: 10m
• BSD Alarm Areas: 4 adjustable areas

This intelligent monitor with integrated BSD provides a significant enhancement to vehicle safety by effectively addressing blind spots and alerting drivers to potential hazards.
