7 Inch Waterproof Rear View System with Quad View (ARL-MS-716RSCHD)

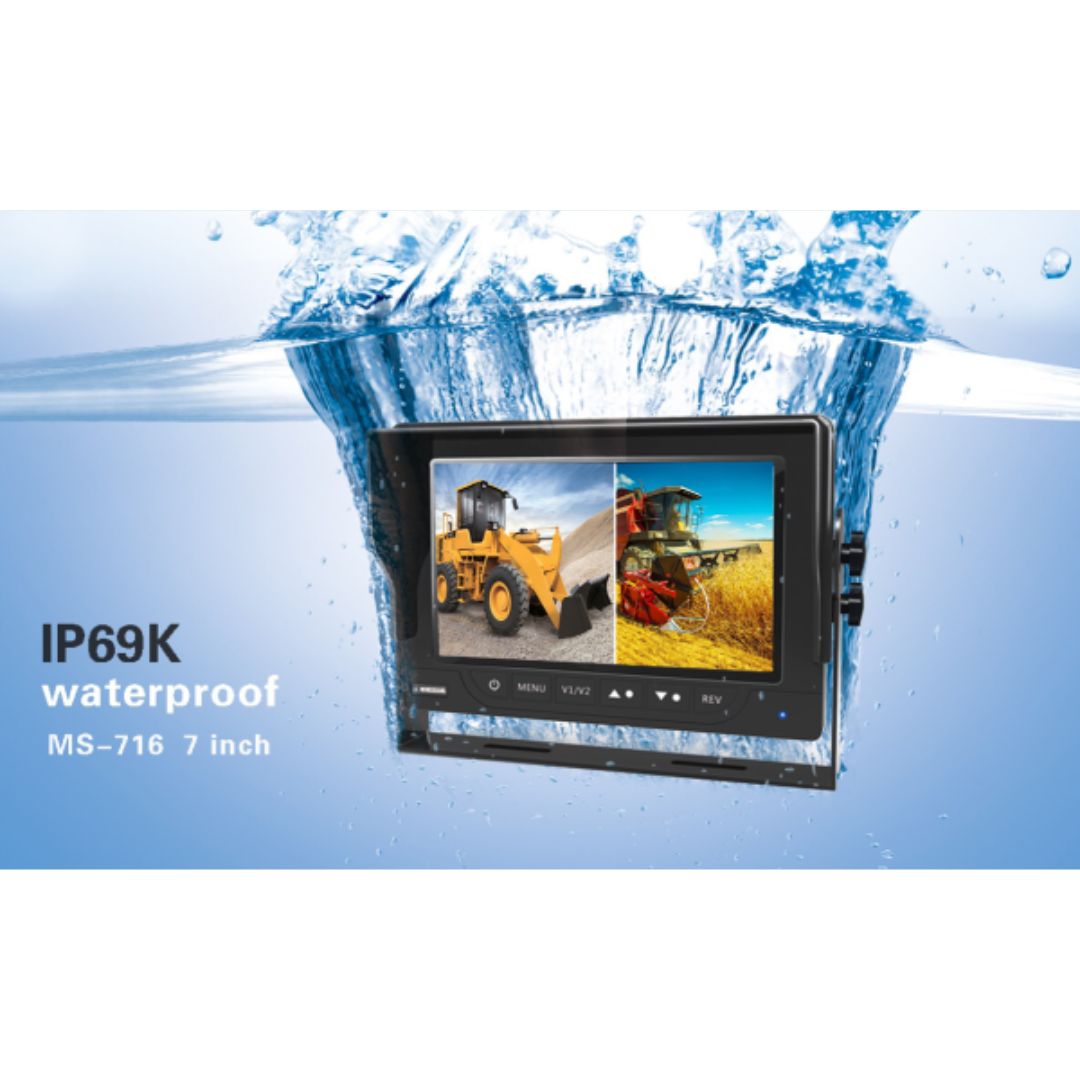

The ARL-MS-716RSCHD is a robust and versatile waterproof rear view system designed for demanding applications. It features a 7-inch HD LCD monitor with a high resolution of 1024 x 600 and supports quad view, allowing simultaneous display from up to 4 cameras. The monitor and optional cameras boast an IP69K waterproof rating, ensuring reliable performance in harsh outdoor conditions. Accommodate 1 to 4 camera inputs with corresponding trigger inputs for rear, front, left, and right views. The monitor offers a selectable display mode (mirror/normal) for each camera and includes a sun visor attachment for enhanced visibility. Installation is flexible with included U bracket and sun visor, and an optional fan bracket. Built to withstand industrial use, the system is highly resistant to shock and vibration, meeting stringent requirements for hot and cold weather. All connectors are also waterproof for added durability.

Key Features:

7 Inch HD Waterproof Monitor: High resolution (1024 x 600) with IP69K rating.

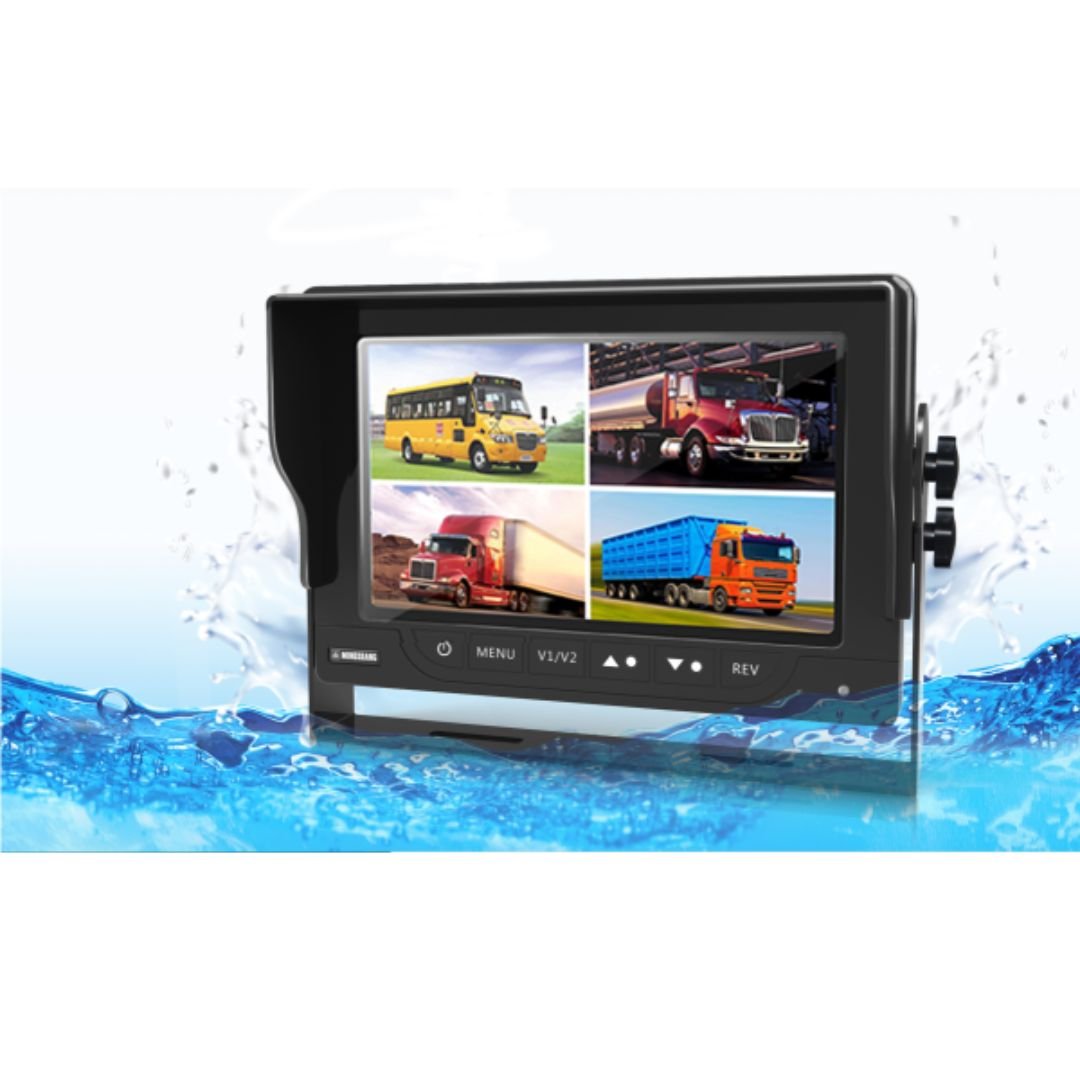

Quad View Support: Displays up to 4 camera feeds simultaneously.
Wide Voltage Input: Compatible with 10VDC to 36VDC power systems.
Multi-Camera Input: Supports 1 to 4 AHD camera inputs with triggers.
Selectable Display Mode: Mirror or normal view for each camera.
Robust Design: Withstands shock and vibration (20G vibration, 100G shock).
Waterproof Connectors: Ensures reliable connections in all weather.
Included Sun Visor & U Bracket: Enhances visibility and installation options.
Optional Fan Bracket: Provides additional mounting flexibility.
Wide Operating Temperature: Suitable for hot and cold environments.

Technical Specifications:

7” HD Waterproof TFT LCD Monitor (ARL-MS-716HD):

Feature	Specification
Pixel	1024(H) * 3(RGB) * 600(V)
Power Input	4CH
Video Input	4CH AHD Signal Input
Triggers	4 Triggers (Rear/Front/Left/Right)
Video System	Auto PAL/NTSC
Voltage Supply	DC10V~36V Wide Voltage
Mirror Function	Settable Separately for Each Camera
Shock & Vibration	Built to Withstand Industrial Applications
Dust & Waterproof	IP69K Rating, Waterproof Connectors
Display Mode	Mirror/Normal (Selectable)
Mounting	U Bracket & Sun Visor Included, Fan Bracket Optional

Optional HD CMOS Camera (ARL-MS-750):

Feature	Specification
Sensor	LED Auto On/Off CDS Sensor
Video Signal System	AHD
Waterproof Rating	IP69K
Effective Pixels	1288 ( H ) X 494 ( V)
Max. Frame Rate	1280*720@60 fps
Resolution	720 TV Lines
Minimum Light	0 Lux (LED ON)
S/N Ratio	More than 50 Db
Dynamic Range	D-WDR (Wide Dynamic Range)
Day & Night	Mechanical Day&Night (IR Fitter Changeable)
Video Output	1Vp-p 75Ω
Voltage	DC12V (+/-15%)
Power Consumption	IR On Max (180mA), IR Off Max (90mA)
View Angle	F2.5, 120 Degree
Ambient Humidity	RH 85% max
Night Vision	18pcs IR LED
Material	Zinc-alloy

This 7 Inch Waterproof Rear View System with Quad View offers a robust, high-performance, and versatile solution for comprehensive vehicle monitoring in demanding environments.
