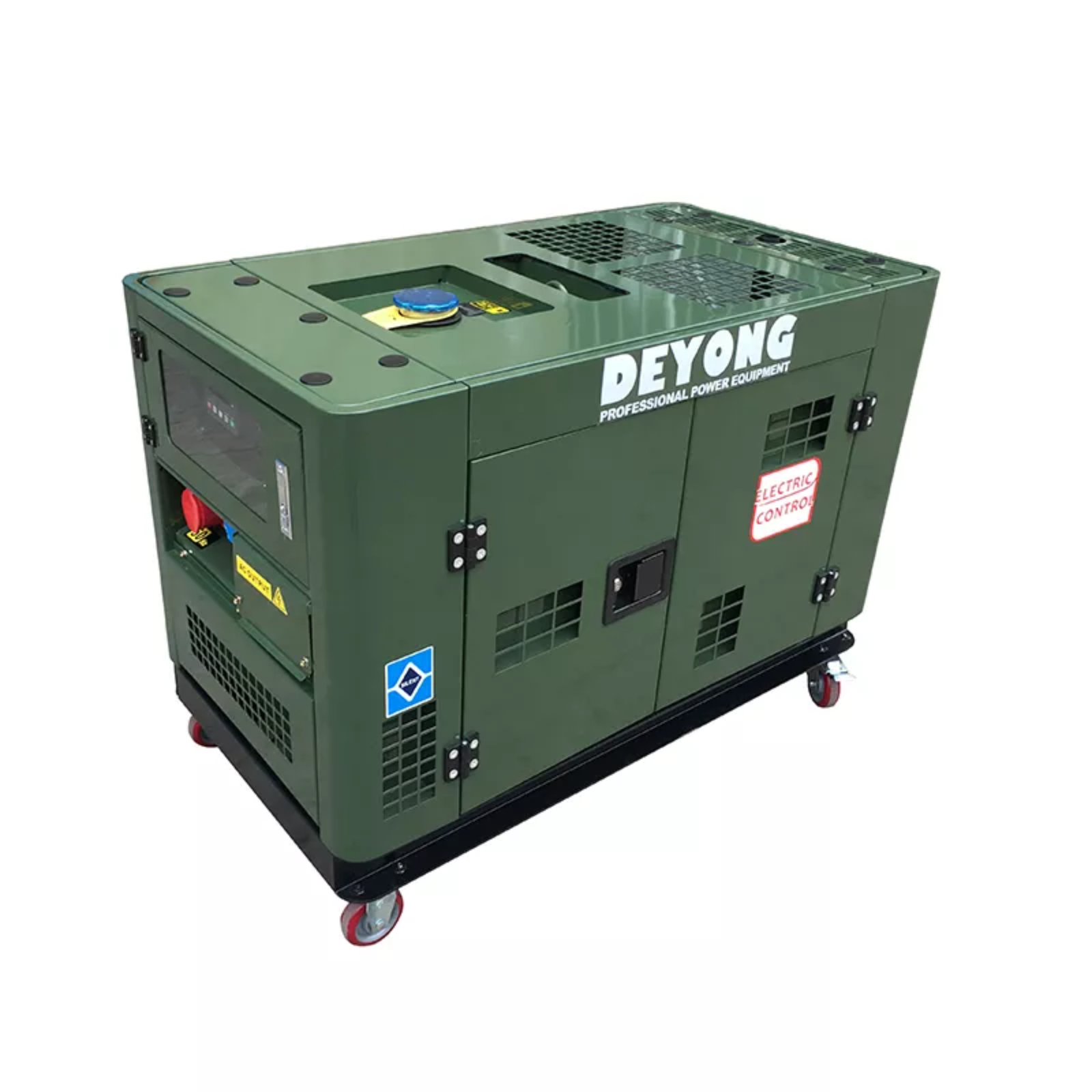

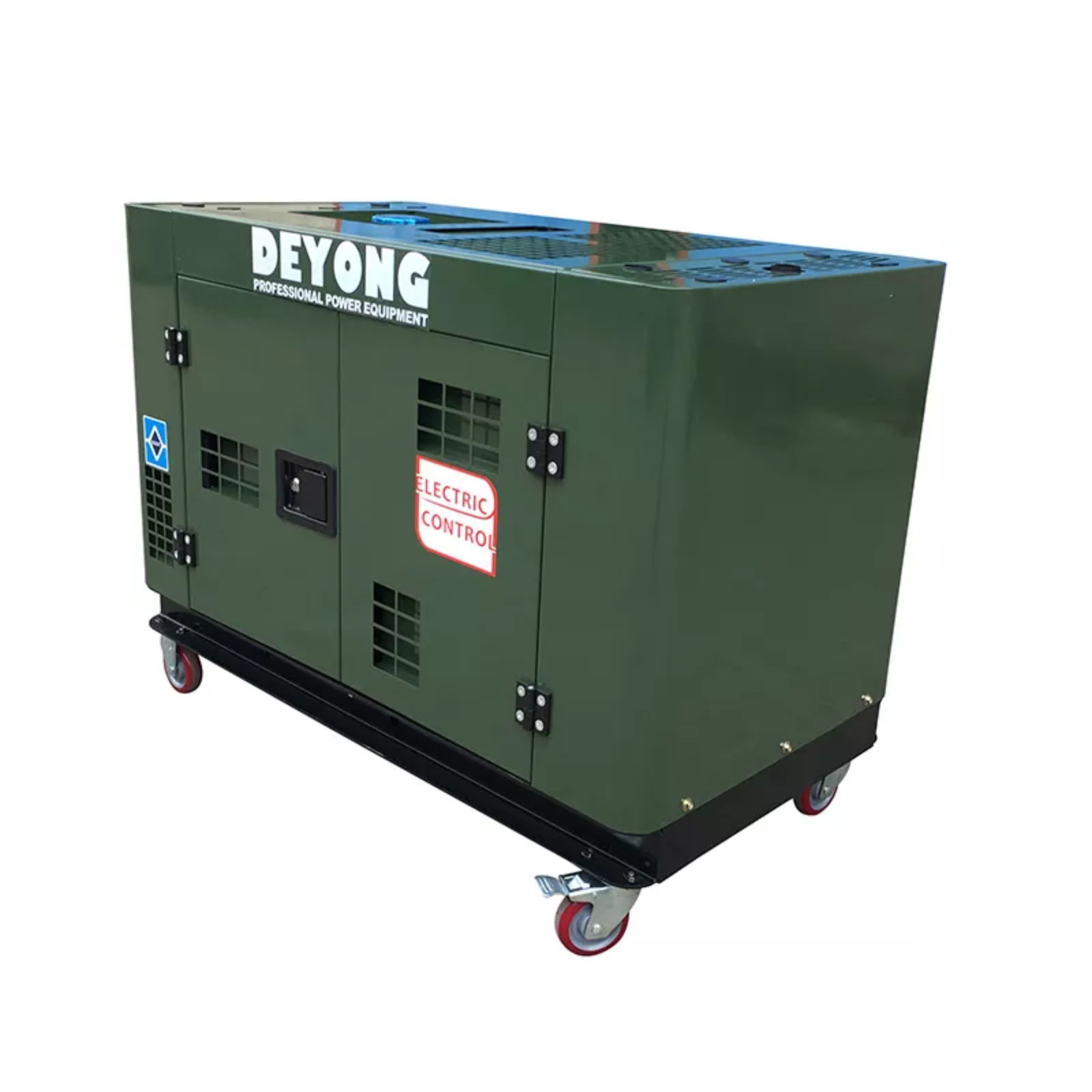

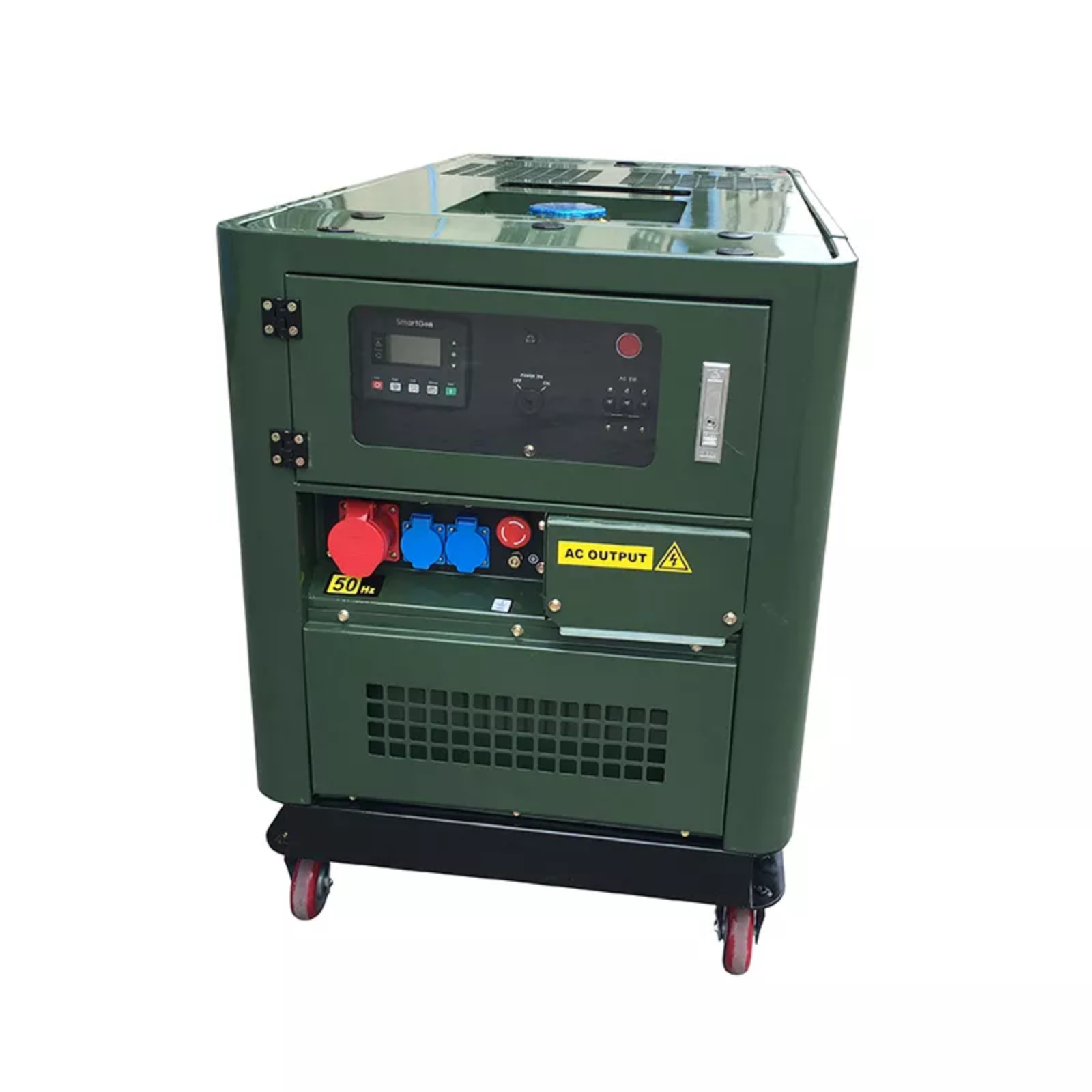

    Air Cooled Diesel Generator ARL-DY16000LN

    Product Description: The ARL-DY16000LN air-cooled diesel generator is designed for reliable power and efficient performance in a variety of applications. This model features an electric start system and offers a range of voltage options, making it versatile for various uses. The air-cooled engine ensures reliable performance.

    Model Specifications:

    Feature ARL-DY16000LN
    Rated Frequency (Hz) 50
    Rated Power (kVA) 13.8
    Maximum Power (kVA) 15
    Rated Voltage (V) 220V, 230V, 240V, 220/380V, 230/400V, 240/415V
    Rated Current (A) 54A (Single Phase), 18/22.8A (Three Phase)
    Rated Speed (r/min) 3000
    Phase Number Three-phase
    Power Factor 0.8
    Starting Way Electric start
    Cooling Way Air-cooled
    Ways of Excitation Self-excited constant voltage (AVR)
    Total Mass (kg) 360
    Overall Dimension (mm) 1350 x 750 x 890
    Engine Model DY292F
    Engine Types 2-Cylinder, 4-Stroke, Air-cooled
    Displacement (ml) 997
    Bore*Stroke (mm) 2-92 x 75
    Fuel Type Diesel fuel: 0#(summer); -10#(winter); -35#(cold)
    Fuel Consumption g/kw.h ≤317
    Compression Ratio 23:01
    Lube CD or SAE10W-30 or 15W-40
    Fuel Tank Capacity (L) 34

    Key Points:

    • Air-Cooled Engine: Reliable and efficient.
    • Versatile Voltage Options: Supports a wide range of single-phase and three-phase voltages.
    • Electric Start: Easy and convenient starting.
    • High Power Output: Suitable for demanding applications.
    • Large Fuel Tank: Provides extended runtime.

    ARAB LAND SOLUTIONS is a pioneer in sustainable solutions, offering a comprehensive range of products and services to help businesses achieve their environmental goals. Our innovative offerings include:

    • Renewable Energy Systems: Our solar panels and wind turbines harness the sun’s and wind’s power, providing clean energy.
    • Water Conservation Strategies: Conserve precious water resources with our advanced water treatment plants, rainwater harvesting systems, and efficient irrigation technologies.
    • Sustainable Building Technologies: Create eco-friendly and energy-efficient buildings with our sustainable construction materials, green roofs, and innovative building practices.

    Our expertise and commitment to environmental stewardship make us your trusted partner in achieving a greener tomorrow. Store

    ARAB LAND Solutions, Musaffah – Mussafah 32/1 – Abu Dhabi, UAE.

    info@arablandsolutions.com

    0 reviews
    0
    0
    0
    0
    0

    Reviews

    Clear filters

    There are no reviews yet.

    Be the first to review “Air Cooled Diesel Generator ARL-DY16000LN”

    Your email address will not be published. Required fields are marked *

    You have to be logged in to be able to add photos to your review.

    ARL Solutions – Shipping & Delivery Information

    ARL Solutions – Shipping & Delivery

    Delivery within the UAE:

    • ARL Solutions provides delivery services throughout the United Arab Emirates.

    International Orders (Outside UAE):

    • For customers located outside the UAE, orders are available for collection at:
      • Warhorse, Musaffah, Abu Dhabi.
    • For international delivery options, please contact ARL Solutions directly.

    Shipping Costs:

    • Shipping costs are variable and depend on:
      • Customer’s location
      • Specific product ordered
    • Some products offer free shipping, while others incur charges based on location and product.
    • For precise shipping costs, please contact ARL Solutions.

    Estimated Delivery Time:

    • Delivery times can range from 1 day to 2 months after an order is placed.
    • This extended timeframe is due to some products requiring production after an order is received.
    • For an estimated delivery time for your specific order, please contact ARL Solutions.

    Contact ARL Solutions:



    Custom and Branded Products Looking for a custom product or items with your branding? ARL Solutions can help! Once you place an inquiry for a custom or branded product, they'll reach out to you within 24 hours to discuss your needs. How to Get in Touch You can contact ARL Solutions using any of the following: Whatsapp / Call: +971 50 688 1270 Email: sales@arablandsolutions.com Contact Page: https://store.arablandsolutions.com/contact-us/

    RELATED PRODUCTS

    Diesel Generators Square frame with handle and 2pcs 9" wheels ARL-DY-B
    Add to wishlist

    Diesel Generators Square frame with handle and 2pcs 9″ wheels ARL-DY-B

    SKU: ARL-DY-B
    Read more
    Quick view
    Model C Canopy Silent Diesel Generator ARL-DY-LN-C (2)
    Add to wishlist

    Model C Canopy Silent Diesel Generator ARL-DY-LN-C

    Read more
    Quick view
    Model E Canopy Silent Diesel Generator ARL-DY-LN-E
    Add to wishlist

    Model E Canopy Silent Diesel Generator ARL-DY-LN-E

    Read more
    Quick view
    Model E Canopy Silent Diesel Generator ARL-DY-LN-E+ATS
    Add to wishlist

    Model E Canopy Silent Diesel Generator ARL-DY-LN-E+ATS

    Read more
    Quick view

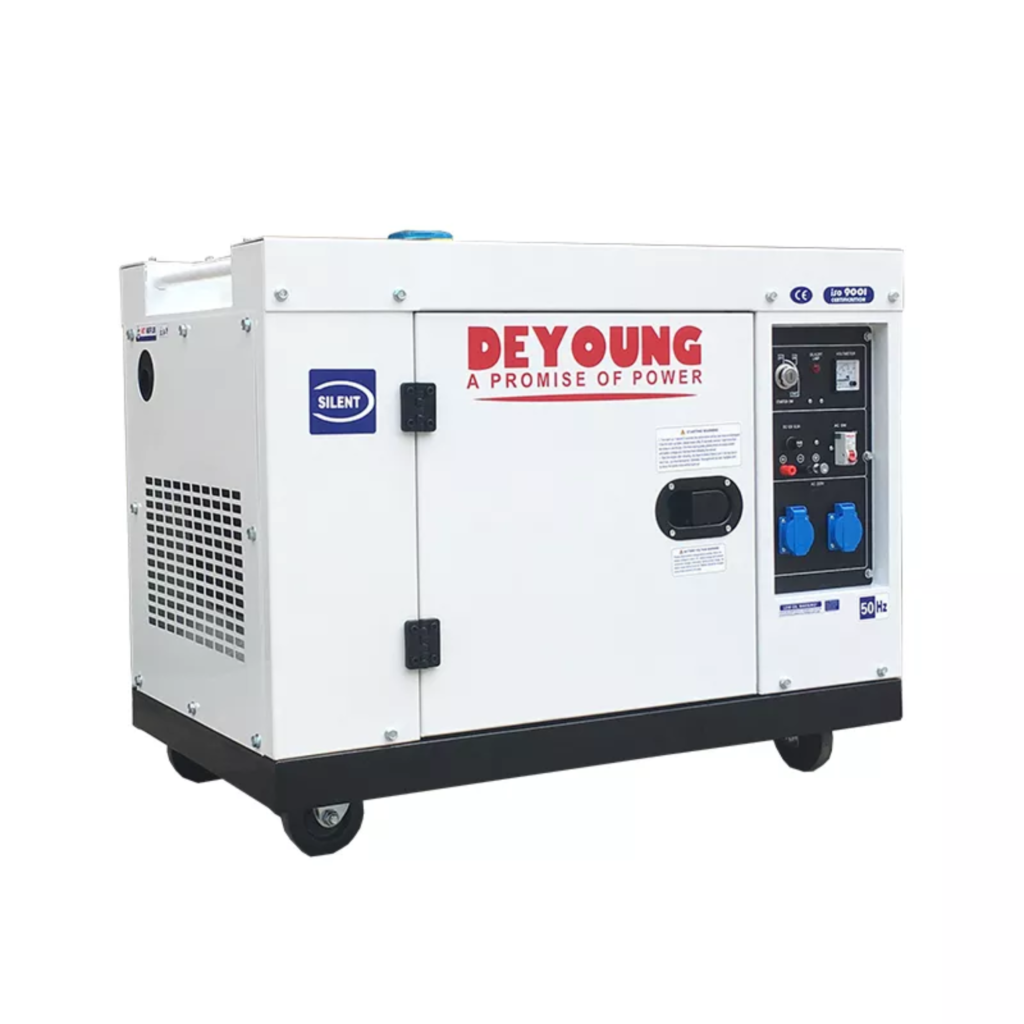

    Silent Diesel Generator ARL-DY9500LN-C
