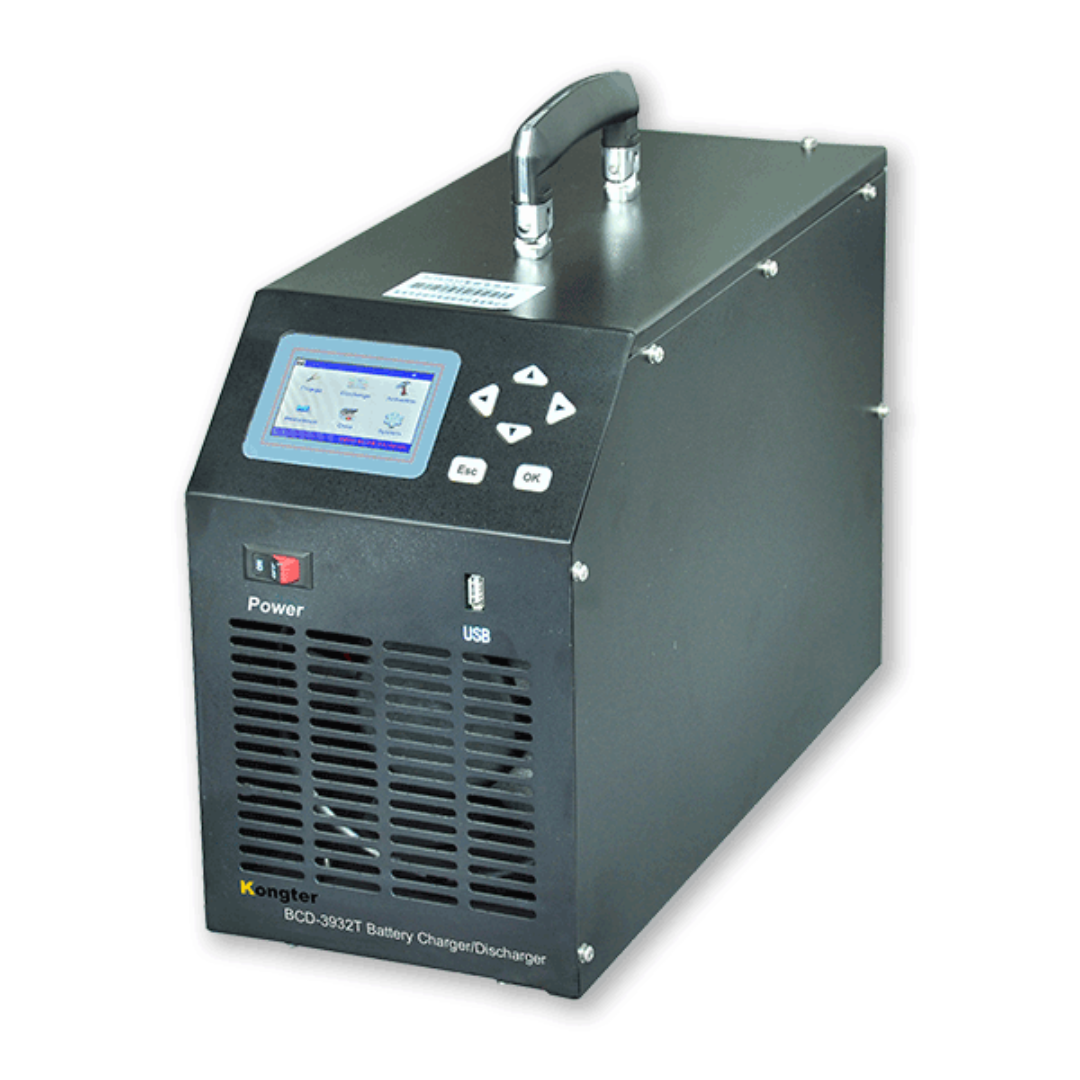

Battery Activator ARL-BCD-3932T

The Battery Activator ARL-BCD-3932T is a compact unit serving as three units in one: a Charger, Discharger, and Activator. It is designed for the regular maintenance of single cells, especially old ones. By using its functions individually or comprehensively, it facilitates maintenance. Comprehensive use allows lag-out batteries to undergo low-volt constant current charging and discharging in single or multi-circles (1-99), boosting the capacity of old batteries by activating disabled Active-Material.

Key Features:

Three Functions in One: Serves as a charger, discharger, and activator.
Flexible Use: Functions can be used separately or comprehensively.
Activation Process: When used comprehensively, it uses low-volt constant current charging and discharging in single or multi-circles (1-99) to activate disabled Active-Material.
Application: Applicable to single cells of $1.2\text{V}$ , $2\text{V}$ , $4\text{V}$ , $6\text{V}$ , $8\text{V}$ , and $12\text{V}$ .
Testing Results: Provides all-rounded and accurate testing results with vivid waveforms.
Operation: Features touch screen and keypad operation.
Portability: Small size, portable, and user-friendly.
Data Transfer: Direct USB drive for data transfer to a PC.
Software: Includes powerful PC software for testing data analysis and report printing.
Safety: Safety circuits prevent damage to the battery.
Monitoring: Capable of long-time monitoring of battery condition.

Technical Specifications:

Power Supply: $220\text{V}$ AC or $110\text{V}$ AC.
LCD Display: $320\times 240$ pixels.
Com Port: USB.
Internal Memory: $16\text{MB}$ .
External Memory: $4\text{GB}$ (USB).
Operating Temperature: $5^\circ\text{C} \sim 50^\circ\text{C}$ .
Humidity: $5\% \sim 90\%\text{RH}$ .
Charging Current Range: $1-50\text{A}$ (cell: $1.2\text{V}$ ); $1-100\text{A}$ (cell: $2\text{V}$ ); $1-30\text{A}$ (cell: $4\text{V}$ , $6\text{V}$ , $8\text{V} \text{ \& } 12\text{V}$ ).
Discharge Current Range: $1-25\text{A}$ (cell: $1.2\text{V}$ ); $1-100\text{A}$ (cell: $2\text{V}$ ); $1-30\text{A}$ (cell: $4\text{V}$ , $6\text{V}$ , $8\text{V} \text{ \& } 12\text{V}$ ).
Current Resolution: $1\text{A}$ .
Current Accuracy: $1\%$ .
Voltage Measurement Resolution: $0.1\text{V}$ .
Voltage Measurement Accuracy: $0.25\%$ .
Dimension (L x W x H): $395 \times 370 \times 200\text{ mm}$ .
Weight: $10\text{kg}$ (main unit).
Standard: CE marking, EMC standard, LVD EN60335.
