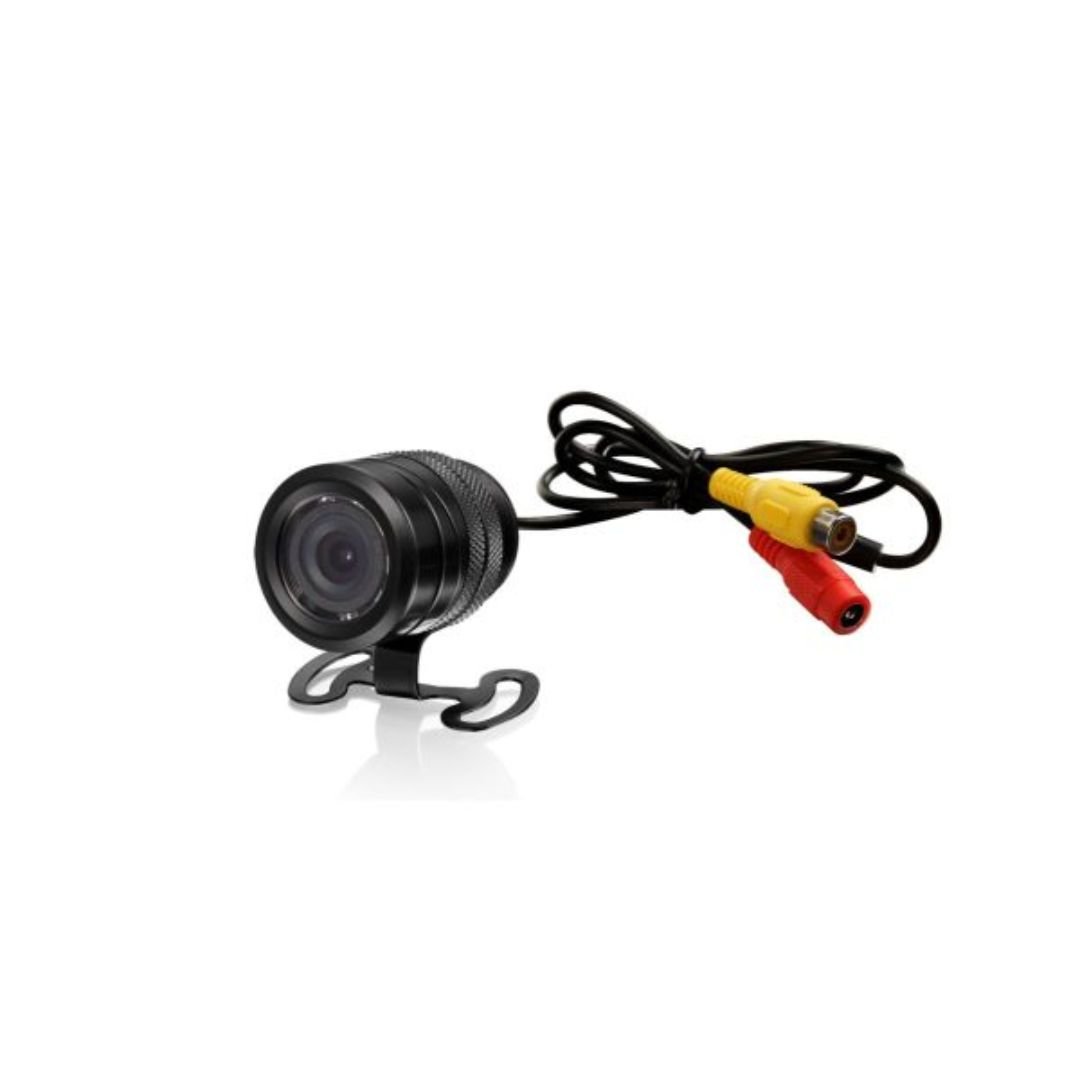

HD Wide Viewing Camera ARL-MS-309HD

SKU: ARL-MS-309HD Categories: AHD Cameras, Cameras, Driving Control System

HD Wide Viewing Camera (ARL-MS-309HD)

The ARL-MS-309HD is a high-definition camera designed to provide an exceptionally wide field of view. Utilizing a 1/2.9″ CMOS sensor, it captures detailed 1080P video with a resolution of 1920 horizontal and 1080 vertical pixels at a smooth frame rate of 25 or 30 frames per second. HD Wide Viewing Camera (ARL-MS-309HD) employs progressive scan technology for optimal image clarity and features automatic backlight compensation and white balance. Even in very low light conditions (0.01Lux at F1.2, AGC ON), it delivers usable images, and it can operate in complete darkness with the integrated IR LEDs (0 Lux). The electronic shutter ranges from 1/30 (or 1/25) to 1/50,000 seconds. It outputs a standard 1Vp-p video signal at 75 ohms with a signal-to-noise ratio of ≥38dB and supports Wide Dynamic Range (81dB) for balanced exposure. It also features a mirror function.

Key Features:

Full HD 1080P Resolution: Provides clear and detailed images.
Ultra-Wide Viewing Angle: Diagonal 150°, Horizontal 120°, Vertical 60°.
Excellent Low Light Performance: Operates down to 0.01 Lux and 0 Lux with IR.
Wide Voltage Input: Compatible with 9-24V DC power systems.
Robust and Durable: IP68 waterproof and 8G seismic rating.
Mirror Function: Offers flexible viewing options.

Technical Specifications:

Feature	Specification
Sensor	1/2.9″ CMOS
Pixel Dimension	2.8um * 2.8um
Frame Rate	25FPS / 30FPS
Effective Pixel	1920(H) x 1080(V)
Scanning System	Progressive Scan
Backlight Compensation	Automatic
Minimum Light	0.01Lux @(F1.2,AGC ON), 0LUX with IR
Shutter	1/30（1/25）～1/50,000s
Resolution	1080P
White Balance	Automatic
AGC	Automatic
Synchronization Method	Internal Synchronization
Video Output	1Vp-p, 75 ohms
S/N Ratio	≥38（dB）
Wide Dynamic Range	81db
Viewing Angle (Diagonal)	150° ± 5°
Viewing Angle (Horizontal)	120° ± 5°
Viewing Angle (Vertical)	60° ± 5°
Voltage	DC 9-24V
Working Current	≤100mA
Waterproof Level	IP 68
Audio Frequency	No
Mirror Function	Mirror
Reversing Line	None
Operating Temperature	-20℃ – +70℃, humidity max 95%
Storage Temperature	-30℃ – +80℃, humidity max 95%
Seismic Rating	8G
