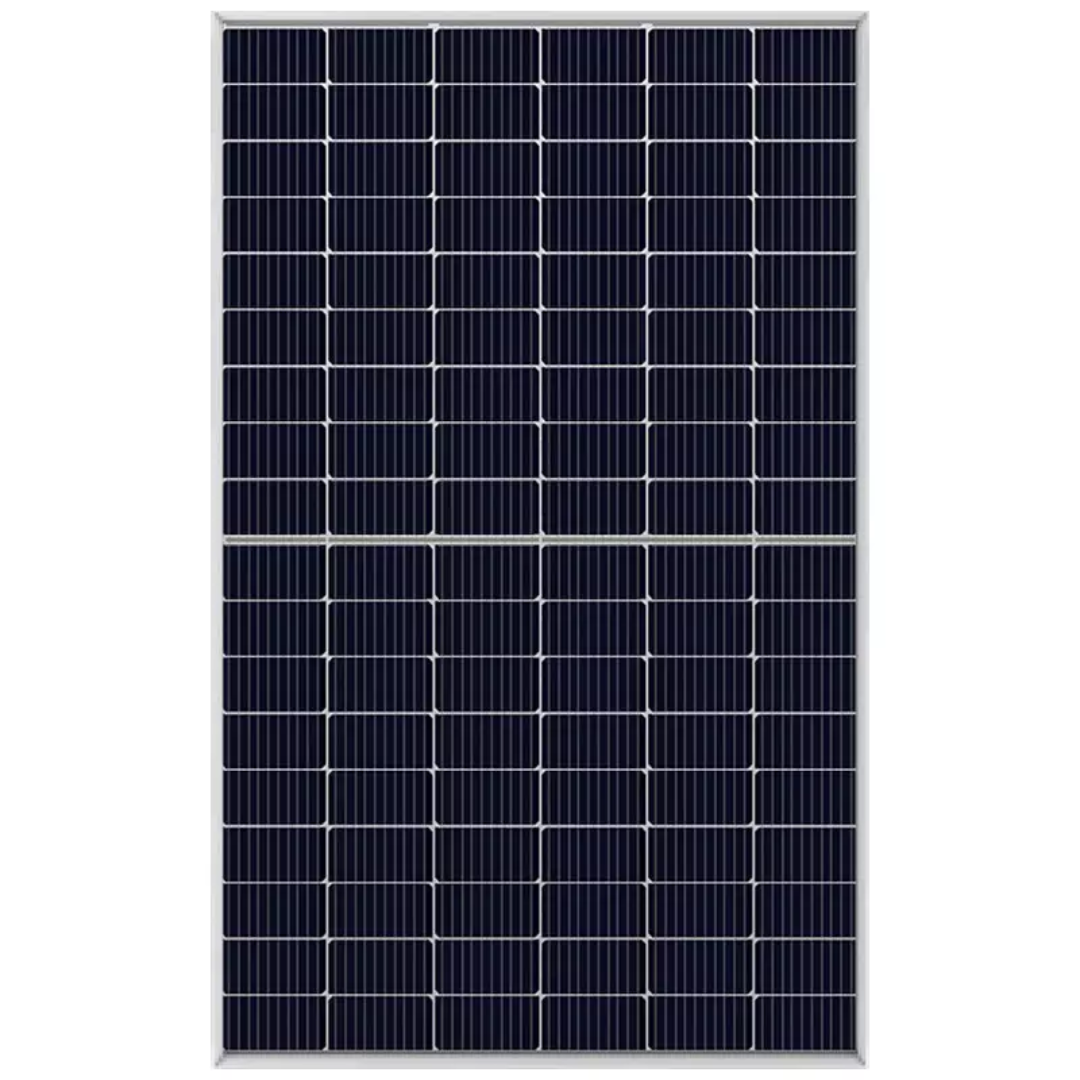

High Efficiency 400W-420W Double Glass Bifacial Mono PERC Solar Module ARL-PNGMH54-DGB8 Series

High Efficiency 400W-420W Double Glass Bifacial Mono PERC Solar Module ARL-PNGMH54-DGB8 Series

High Efficiency 400W-420W Double Glass Bifacial Mono PERC Solar Module ARL-PNGMH54-DGB8 Series. The ARLPNGMH54-DGB8 series offers high-efficiency, double-glass, bifacial monocrystalline PV modules with a power output from 400W to 420W. Featuring 182mm solar cells, these modules harness sunlight from both sides, maximizing overall energy output. This enhanced energy generation makes them especially suitable for a variety of projects, including floating solar systems and installations on grass, where they can capture reflected light.

Key Features:

• Bifacial Technology: These panels capture sunlight from both the front and rear surfaces, significantly increasing energy generation compared to traditional unifacial panels.
• Enhanced Energy Output: By maximizing light absorption, the bifacial design leads to an impressive overall energy yield.
• Double Glass Construction: The durable double-glass design provides superior mechanical strength and resistance to harsh environmental conditions.
• High Efficiency: Module efficiency is up to 21.53% under standard test conditions, with the potential for higher output with bifacial gain.
• PID Resistant: The panels are designed to resist Potential Induced Degradation, ensuring reliable long-term performance.
• Anti-Crack: Features excellent resistance to micro-cracking due to balanced internal stress.
• Low-Light Performance: Provides excellent power generation even in low-light conditions.
• Strength and Durability: Certified to withstand snow loads of 5400Pa and wind loads of 2400Pa.

Electrical Specifications (by Module Type):

Module Type: ARL-PNGMH54-DGB8-400

• Standard Test Condition (STC):
• Max. Power (Pmax/W): 400
• Voltage at Max. Power (Vmp/V): 31.1
• Current at Max. Power (Imp/A): 12.88
• Open Circuit Voltage (Voc/V): 37.1
• Short Circuit Current (Isc/A): 13.77
• Module efficiency (%): 20.50%
• Nominal Module Operating Temperature (NOCT):
• Max. Power (Pmax/W): 301
• Voltage at Max. Power (Vmp/V): 29.2
• Current at Max. Power (Imp/A): 10.31
• Open Circuit Voltage (Voc/V): 34.9
• Short Circuit Current (Isc/A): 11.01

Module: ARL-PNGMH54-DGB8-405

• Standard Test Condition (STC):
• Max. Power (Pmax/W): 405
• Voltage at Max. Power (Vmp/V): 31.2
• Current at Max. Power (Imp/A): 12.97
• Open Circuit Voltage (Voc/V): 37.2
• Short Circuit Current (Isc/A): 13.86
• Module efficiency (%): 20.76%
• Nominal Module Operating Temperature (NOCT):
• Max. Power (Pmax/W): 305
• Voltage at Max. Power (Vmp/V): 29.4
• Current at Max. Power (Imp/A): 10.38
• Open Circuit Voltage (Voc/V): 35.1
• Short Circuit Current (Isc/A): 11.10

Model: ARL-PNGMH54-DGB8-410

• Standard Test Condition (STC):
• Max. Power (Pmax/W): 410
• Voltage at Max. Power (Vmp/V): 31.4
• Current at Max. Power (Imp/A): 13.05
• Open Circuit Voltage (Voc/V): 37.4
• Short Circuit Current (Isc/A): 13.95
• Module efficiency (%): 21.01%
• Nominal Module Operating Temperature (NOCT):
• Max. Power (Pmax/W): 309
• Voltage at Max. Power (Vmp/V): 29.6
• Current at Max. Power (Imp/A): 10.45
• Open Circuit Voltage (Voc/V): 35.3
• Short Circuit Current (Isc/A): 11.17

ARL-PNGMH54-DGB8-415

• Standard Test Condition (STC):
• Max. Power (Pmax/W): 415
• Voltage at Max. Power (Vmp/V): 31.6
• Current at Max. Power (Imp/A): 13.12
• Open Circuit Voltage (Voc/V): 37.6
• Short Circuit Current (Isc/A): 14.04
• Module efficiency (%): 21.27%
• Nominal Module Operating Temperature (NOCT):
• Max. Power (Pmax/W): 313
• Voltage at Max. Power (Vmp/V): 29.8
• Current at Max. Power (Imp/A): 10.52
• Open Circuit Voltage (Voc/V): 35.5
• Short Circuit Current (Isc/A): 11.26

Module Type: ARL-PNGMH54-DGB8-420

• Standard Test Condition (STC):
• Max. Power (Pmax/W): 420
• Voltage at Max. Power (Vmp/V): 31.8
• Current at Max. Power (Imp/A): 13.19
• Open Circuit Voltage (Voc/V): 37.8
• Short Circuit Current (Isc/A): 14.13
• Module efficiency (%): 21.53%
• Nominal Module Operating Temperature (NOCT):
• Max. Power (Pmax/W): 317
• Voltage at Max. Power (Vmp/V): 30.0
• Current at Max. Power (Imp/A): 10.59
• Open Circuit Voltage (Voc/V): 35.7
• Short Circuit Current (Isc/A): 11.34

Electrical Characteristics with Different Power Bins (Reference to 10% Irradiance Ratio):

• Power Bin: 420W
• Module Efficiency STC(%): 21.53%
• Power Bin: 425W
• Module Efficiency STC(%): 21.80%
• Power Bin: 430W
• Module Efficiency STC(%): 22.06%
• Power Bin: 435W
• Module Efficiency STC(%): 22.34%
• Power Bin: 441W
• Module Efficiency STC(%): 22.61%
• Power Bin: 460W
• Module Efficiency STC(%): 23.58%
• Power Bin: 465W
• Module Efficiency STC(%): 23.87%
• Power Bin: 471W
• Module Efficiency STC(%): 24.16%
• Power Bin: 477W
• Module Efficiency STC(%): 24.46%
• Power Bin: 483W
• Module Efficiency STC(%): 24.76%
• Power Bin: 500W
• Module Efficiency STC(%): 25.63%
• Power Bin: 506W
• Module Efficiency STC(%): 25.95%
• Power Bin: 512W
• Module Efficiency STC(%): 26.26%
• Power Bin: 518W
• Module Efficiency STC(%): 26.59%
• Power Bin: 525W
• Module Efficiency STC(%): 26.91%

General Specifications:

• Power Tolerance (W): 0~+5
• Standard Test Condition (STC) Reference: Irradiance 1000W/m², Cell Temperature 25℃, AM1.5
• Nominal Module Operating Temperature (NOCT) Reference: Irradiance 800W/m², Ambient Temperature 20℃, AM1.5, Wind Speed 1m/s

Mechanical Specifications:

• Cell Type: MBB MONO 182x91mm
• No. of Cells: 108 (6×18)
• Dimension: 1722x1134x30mm
• Weight: 25.5kg
• Glass: 3.2mm, Low Iron Tempered Glass
• Frame: Anodized Aluminium Alloy
• Junction Box: IP68, 3 diodes
• Output Cables: 4mm², Length 300mm or customized
• Connector type: MC4 compatible

Temperature Characteristics:

• NOCT Temperature: 44∘C±2∘C
• Temperature Coefficient (Pmax): $-0.36$%/℃
• Temperature Coefficient (Voc): $-0.28$%/℃
• Temperature Coefficient (Isc): $0.05$%/℃

Maximum Ratings:

• Maximum system voltage (IEC): 1500V DC
• Snow / Wind Load: 5400Pa / 2400Pa
• Operating Temperature: −40∘C∼+85∘C
• Maximum series fuse rating: 25A
