Mono PERC Solar Module 440W-460W ARL-PNGMH72-B6 Series

Mono PERC Solar Module 440W-460W ARL-PNGMH72-B6 Series

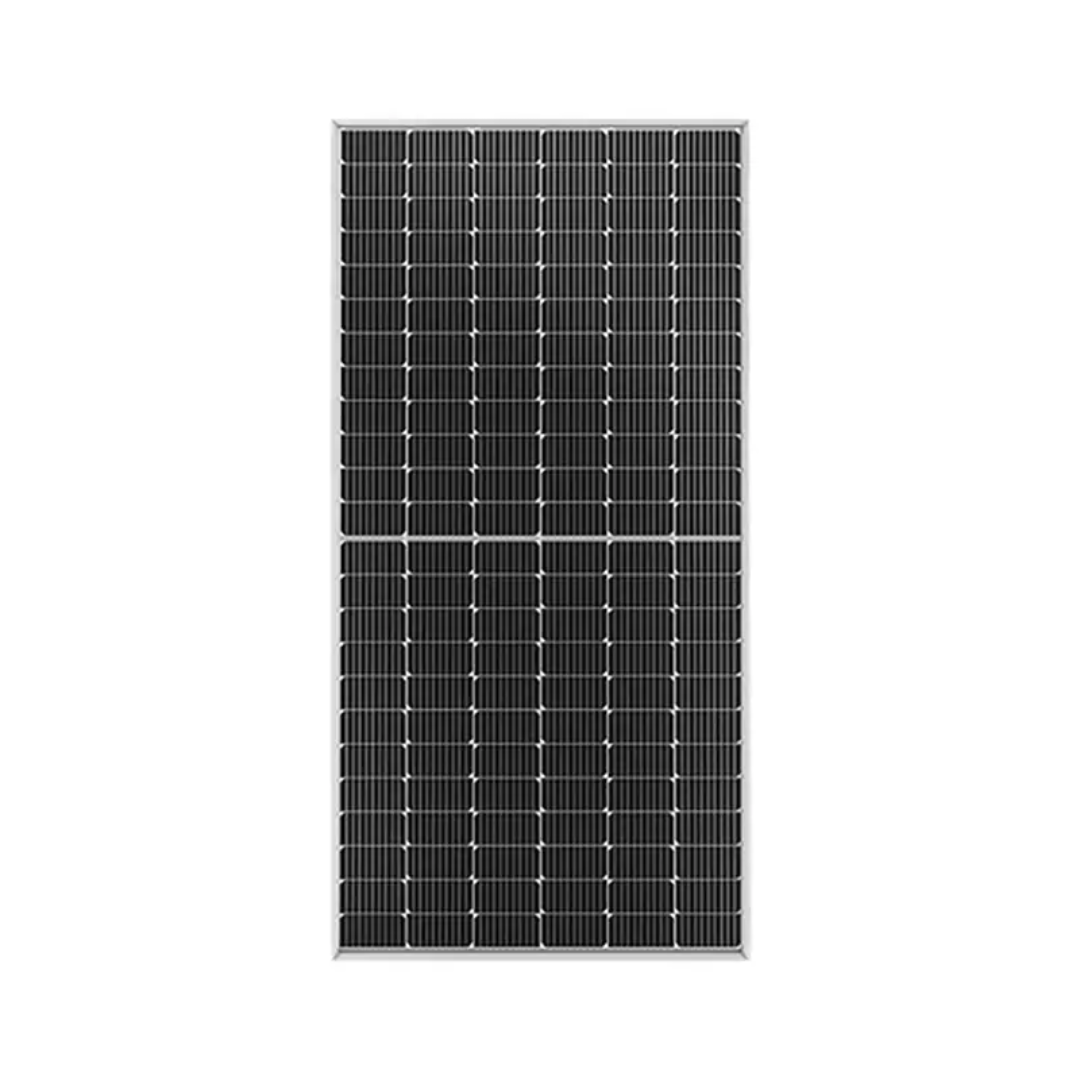

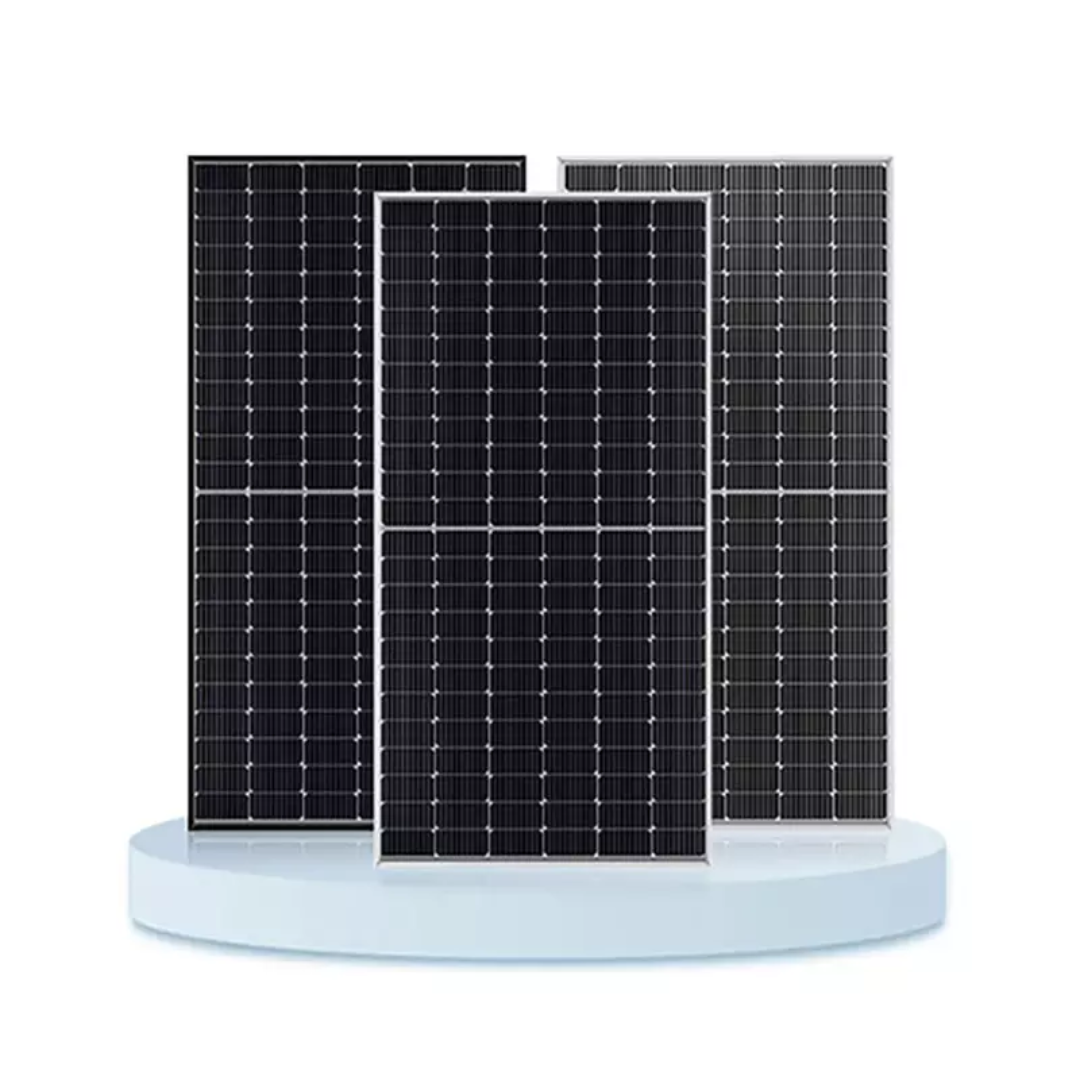

Mono PERC Solar Module 440W-460W ARL-PNGMH72-B6 Series. The ARLPNGMH72-B6 series offers monocrystalline PERC solar modules with a power output ranging from 440W to 460W. These panels utilize 166mm half-cell technology, which represents a significant advancement in solar technology. Meticulously engineered for optimal energy conversion, these panels provide exceptional wattage for residential and commercial solar installations. They are designed to deliver next-level performance, generating an abundance of clean, green energy for a sustainable future.

Key Features:

• High Efficiency: Module efficiency up to 21.16% ensures a high energy output from a single panel.
• 166mm Half-Cell Technology: This design contributes to improved performance by reducing electrical resistance and enhancing shading response.
• Monocrystalline PERC: The monocrystalline PERC technology maximizes energy conversion efficiency.
• Optimized Energy Conversion: These panels are engineered to optimize energy conversion, ensuring maximum power output.
• Wide Application: Suitable for a variety of residential and commercial solar installations.
• Durability: Built with 3.2mm low-iron tempered glass and an anodized aluminum alloy frame for robust construction.
• Strength and Reliability: Certified to withstand snow loads of 5400Pa and wind loads of 2400Pa.

Electrical Specifications (by Module Type):

Module Type: ARL-PNGMH72-B6-440

• Standard Test Condition (STC):
• Max. Power (Pmax/W): 440
• Voltage at Max. Power (Vmp/V): 40.9
• Current at Max. Power (Imp/A): 10.76
• Open Circuit Voltage (Voc/V): 49.8
• Short Circuit Current (Isc/A): 11.29
• Module Efficiency(%): 20.24%
• Nominal Module Operating Temperature (NOCT):
• Max. Power (Pmax/W): 330
• Voltage at Max. Power (Vmp/V): 38.0
• Current at Max. Power (Imp/A): 8.66
• Open Circuit Voltage (Voc/V): 45.6
• Short Circuit Current (Isc/A): 9.31

Module: ARL-PNGMH72-B6-445

• Standard Test Condition (STC):
• Max. Power (Pmax/W): 445
• Voltage at Max. Power (Vmp/V): 41.1
• Current at Max. Power (Imp/A): 10.83
• Open Circuit Voltage (Voc/V): 50.0
• Short Circuit Current (Isc/A): 11.33
• Module Efficiency(%): 20.47%
• Nominal Module Operating Temperature (NOCT):
• Max. Power (Pmax/W): 334
• Voltage at Max. Power (Vmp/V): 38.2
• Current at Max. Power (Imp/A): 8.73
• Open Circuit Voltage (Voc/V): 45.8
• Short Circuit Current (Isc/A): 9.38

Model: ARL-PNGMH72-B6-450

• Standard Test Condition (STC):
• Max. Power (Pmax/W): 450
• Voltage at Max. Power (Vmp/V): 41.3
• Current at Max. Power (Imp/A): 10.90
• Open Circuit Voltage (Voc/V): 50.2
• Short Circuit Current (Isc/A): 11.41
• Module Efficiency(%): 20.70%
• Nominal Module Operating Temperature (NOCT):
• Max. Power (Pmax/W): 338
• Voltage at Max. Power (Vmp/V): 38.4
• Current at Max. Power (Imp/A): 8.79
• Open Circuit Voltage (Voc/V): 46.0
• Short Circuit Current (Isc/A): 9.44

Module Type: ARL-PNGMH72-B6-455

• Standard Test Condition (STC):
• Max. Power (Pmax/W): 455
• Voltage at Max. Power (Vmp/V): 41.5
• Current at Max. Power (Imp/A): 10.97
• Open Circuit Voltage (Voc/V): 50.4
• Short Circuit Current (Isc/A): 11.48
• Module Efficiency(%): 20.93%
• Nominal Module Operating Temperature (NOCT):
• Max. Power (Pmax/W): 341
• Voltage at Max. Power (Vmp/V): 38.6
• Current at Max. Power (Imp/A): 8.83
• Open Circuit Voltage (Voc/V): 46.2
• Short Circuit Current (Isc/A): 9.48

Module Type: ARL-PNGMH72-B6-460

• Standard Test Condition (STC):
• Max. Power (Pmax/W): 460
• Voltage at Max. Power (Vmp/V): 41.7
• Current at Max. Power (Imp/A): 11.03
• Open Circuit Voltage (Voc/V): 50.6
• Short Circuit Current (Isc/A): 11.58
• Module Efficiency(%): 21.16%
• Nominal Module Operating Temperature (NOCT):
• Max. Power (Pmax/W): 345
• Voltage at Max. Power (Vmp/V): 38.8
• Current at Max. Power (Imp/A): 8.89
• Open Circuit Voltage (Voc/V): 46.4
• Short Circuit Current (Isc/A): 9.55

General Specifications:

• Power Tolerance (W): 0~+5
• Standard Test Condition (STC) Reference: Irradiance 1000W/m², Cell Temperature 25℃, AM1.5
• Nominal Module Operating Temperature (NOCT) Reference: Irradiance 800W/m², Ambient Temperature 20℃, AM1.5, Wind Speed 1m/s

Mechanical Specifications:

• Cell Type: 9BB Monocrystalline PERC 166x83mm
• No. of Cells: 144 (6×24)
• Dimension: 2094x1038x35mm
• Weight: 24.5kg
• Glass: 3.2mm, Low Iron Tempered Glass
• Frame: Anodized Aluminium Alloy
• Junction Box: IP68, 3 diodes
• Output Cables: 4m㎡, Length 300mm or customized
• Connector type: MC4 compatible

Temperature Characteristics:

• NOCT Temperature: 44∘C±2∘C
• Temperature Coefficient (Pmax): $-0.36$%/℃
• Temperature Coefficient (Voc): $-0.28$%/℃
• Temperature Coefficient (Isc): $0.05$%/℃

Maximum Ratings:

• Maximum system voltage (IEC): 1500V DC
• Snow / Wind : 5400Pa / 2400Pa
• Operating Temperature: −40∘C∼+85∘C
• Maximum series fuse rating: 20A
