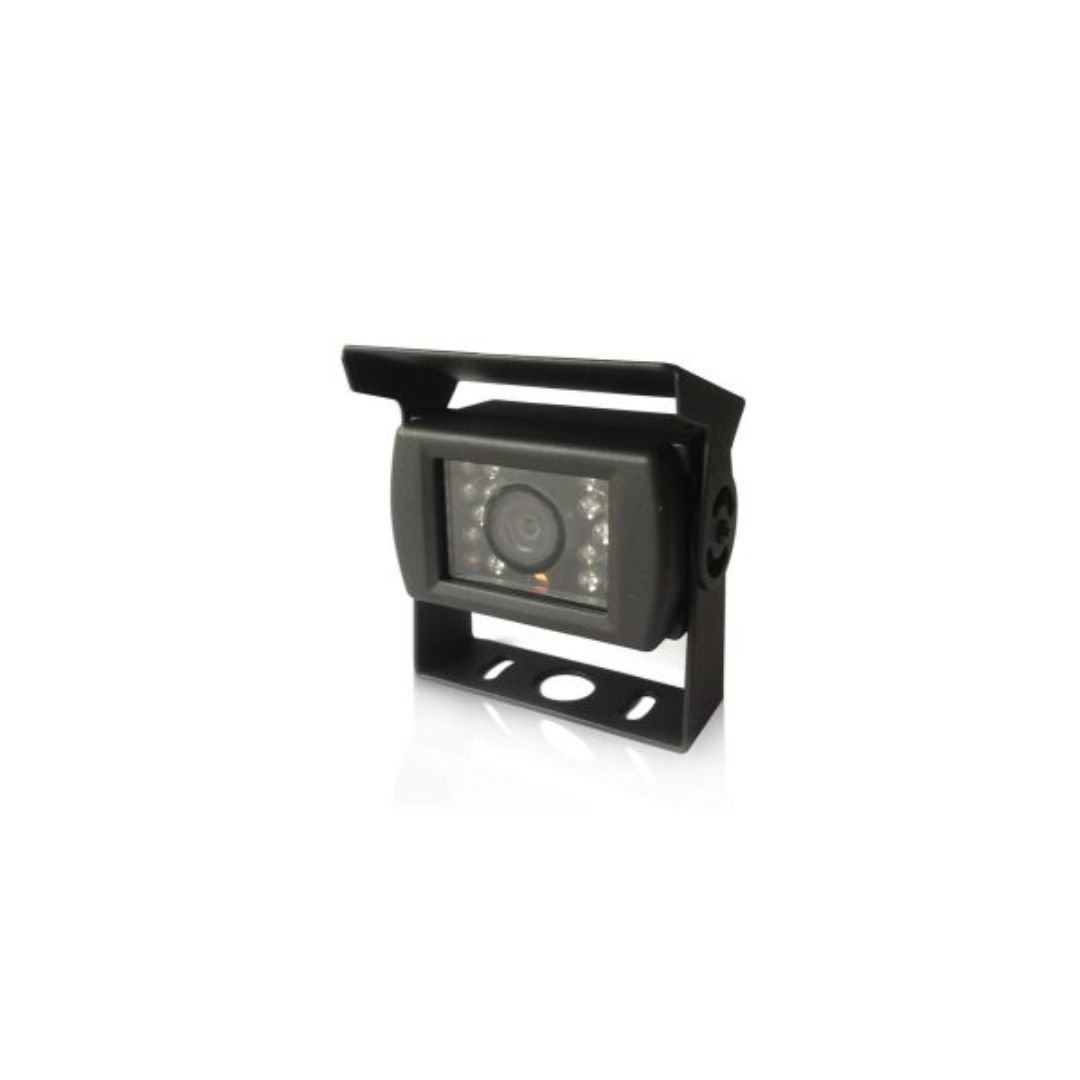

Intelligent Rear View BSD Camera with Pedestrian & Vehicle Detection ARL-MS-753XM

Intelligent Rear View BSD Camera with Pedestrian & Vehicle Detection (ARL-MS-753XM)

The ARL-MS-753XM is an intelligent rear-view camera equipped with advanced BSD (Blind Spot Detection) technology capable of identifying various types of pedestrians and vehicles, including cyclists, electric scooters, and hikers. Intelligent Rear View BSD Camera with Pedestrian & Vehicle Detection (ARL-MS-753XM) system provides both pedestrian and vehicle detection with corresponding warnings to enhance driver safety. It offers high-definition 720P and 1080P video output (when paired with compatible pedestrian and vehicle tracking and alarm identification boxes). The visual warning is intuitively displayed with color-coded alarm boxes: gray (outside the alarm area), green, yellow, orange, and red, indicating increasing proximity to detected objects.

The camera also features warning audio output, allowing connection to monitors or other speaker-equipped devices for broadcasting audible alerts. The distinct ‘beep beep’ alarm sound changes in pattern (long and short beeps) based on the detected object entering the defined warning recognition area. For rear-view applications, the system supports a 4-level alarm identification line (green, yellow, orange, red), while left and right views utilize a 3-level system (green, yellow, red). These alarm identification lines can be further adjusted via the RS232 serial port for customized detection zones.

Furthermore, the ARL-MS-753XM supports alarm IO line linkage for external sound and light alarms. When pedestrians or vehicles enter the designated alarm area, an audible beep is emitted, and the alarm IO output triggers a high-level signal that can activate external warning devices.

Key Features:

• Intelligent Pedestrian & Vehicle Detection: Identifies various types of vulnerable road users and vehicles.
• Visual Warning System: High-definition 720P/1080P video output with color-coded proximity-based alarm boxes (gray, green, yellow, orange, red).
• Audible Warning Output: Connects to monitors or external speakers for ‘beep beep’ alarm sounds with distance-based patterns.
• Adjustable Reverse Recognition Lines: 4-level for rear view (green, yellow, orange, red), 3-level for left/right view (green, yellow, red), adjustable via RS232.
• Alarm IO Line Linkage: Triggers external sound and light alarms upon detection.
• High-Definition Video Output: Available in both 720P and 1080P resolutions.
• Wide Dynamic Range: Supports digital wide dynamic range for improved visibility in varying lighting conditions.
• Infrared Night Vision: Provides clear visibility up to 10 meters in low-light or no-light conditions.
• Wide Viewing Angle: Up to 107°(D) / 91°(H) / 51°(V) for 720P and 120°(D) / 102°(H) / 55°(V) for 1080P.
• Wide Operating Voltage: Supports a working voltage range of 9-24V (720P) and 9-30V (1080P).
• Waterproof IP67 Rating: Ensures durability and reliable performance in harsh weather conditions.
• Alarm In Support: Can be linked with external sound and light alarms.
• Mirror Function Supported: Allows for mirrored image output.
• Reverse Line Supported: Integrated reverse line functionality.
• Wide Operating Temperature: -30℃ to +70℃.
• High Seismic Grade: Withstands vibrations up to 6G.
• Farthest Rear View Detection Distance: Up to 12 meters.

Technical Parameters (720P):

• System Format: PAL/NTSC (optional)
• Effective Pixels: 1280(H)X720(V)
• Wide Dynamic: Support digital wide dynamic
• Infrared Fill Light: Night vision more than 10 meters
• Minimum Illumination: 0.01Lux@(F1.2,AGC ON), 0LUX with IR
• Shutter: AUTO
• Frequency: 720P@25fps/720P@30fps
• Synchronous Mode: Internal synchronization
• Video Output: 1Vp-p, 75 ohms
• Dynamic Range: 83db
• Detection Distance: 0.5-20M
• Angle: 107°(D) 91°(H) 51°(V)
• Working Voltage: Rated voltage: 12V, working range (9-24V)
• Working Current: Infrared activation approximately 160mA/DC12V
• Waterproof Level: IP 67
• Alarm In: Supported, can be linked with sound and light alarms for alarm
• Audio Frequency: Warning audio “beep beep beep” will emit long and short sounds based on distance
• Mirror Function: Supported
• Reverse Line: Supported
• Operation Temperature: -30℃-+70℃, maximum humidity of 95%
• Size: 797577mm
• Net Weight: <200g
• Seismic Grade: 6G

Technical Parameters (1080P):

• System Format: PAL/NTSC (optional)
• Effective Pixels: 1920(H)X1080(V)
• Wide Dynamic: Support digital wide dynamic
• Infrared Fill Light: Night vision more than 10 meters
• Minimum Illumination: 0.01Lux@(F1.2,AGC ON), 0LUX with IR
• Shutter: AUTO
• Frequency: 1080P@25fps/1080P@30fps
• Synchronous Mode: Internal synchronization
• Video Output: 1Vp-p, 75 ohms
• Dynamic Range: 74db
• Detection Distance: 0.5-20M
• Angle: 120°(D) 102°(H) 55°(V)
• Working Voltage: Rated voltage: 12V, working range (9-30V)
• Working Current: Infrared activation approximately 165mA/DC12V
• Waterproof Level: IP 67
• Alarm In: Supported, can be linked with sound and light alarms for alarm
• Audio Frequency: Warning audio “beep beep beep” will emit long and short sounds based on distance
• Mirror Function: Supported
• Reverse Line: Supported
• Operation Temperature: -30℃-+70℃, maximum humidity of 95%
• Size: 797577mm
• Net Weight: <200g
• Seismic Grade: 6G

This intelligent rear-view BSD camera provides a significant enhancement to vehicle safety by actively detecting pedestrians and vehicles in blind spot areas and providing timely visual and audible warnings to the driver.
