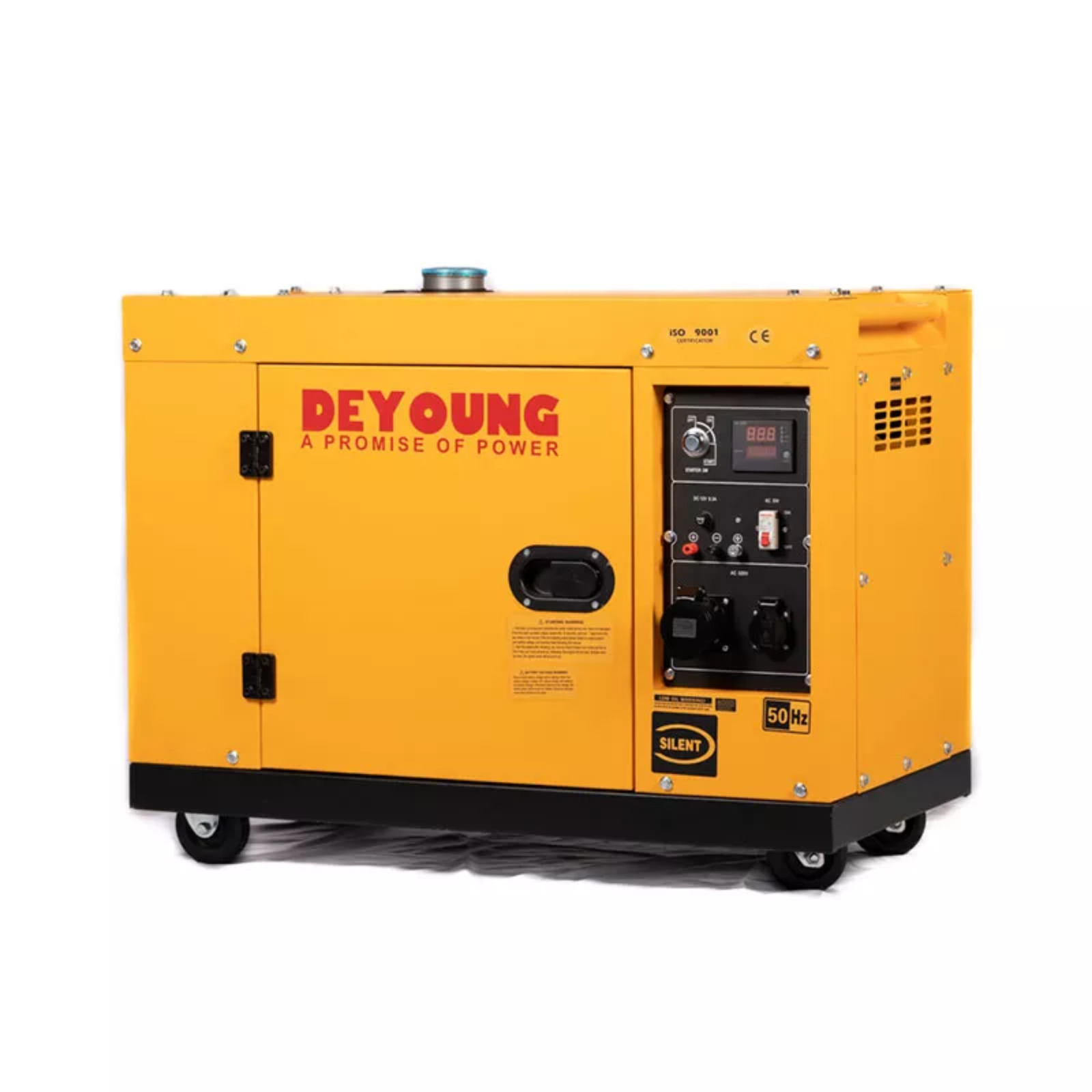

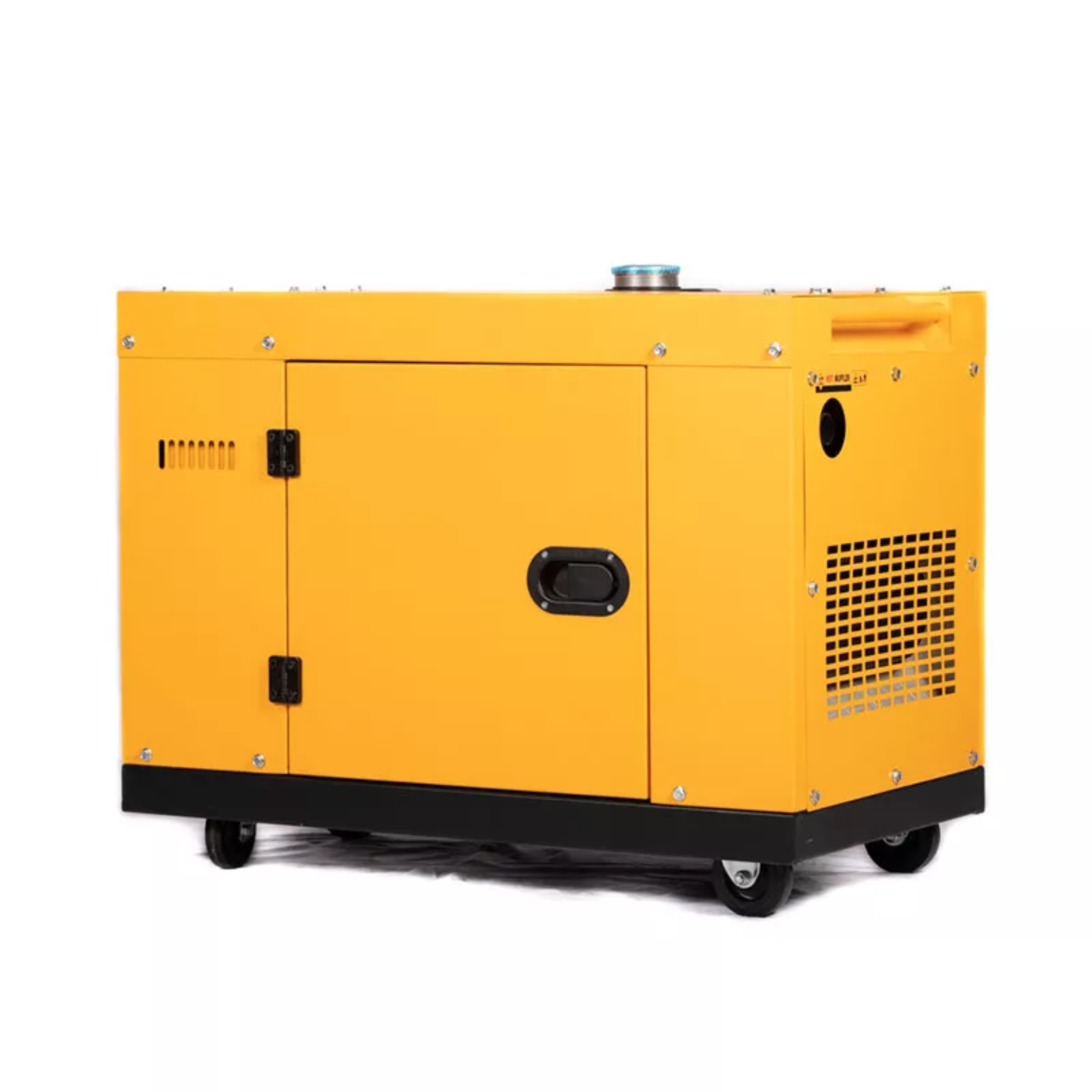

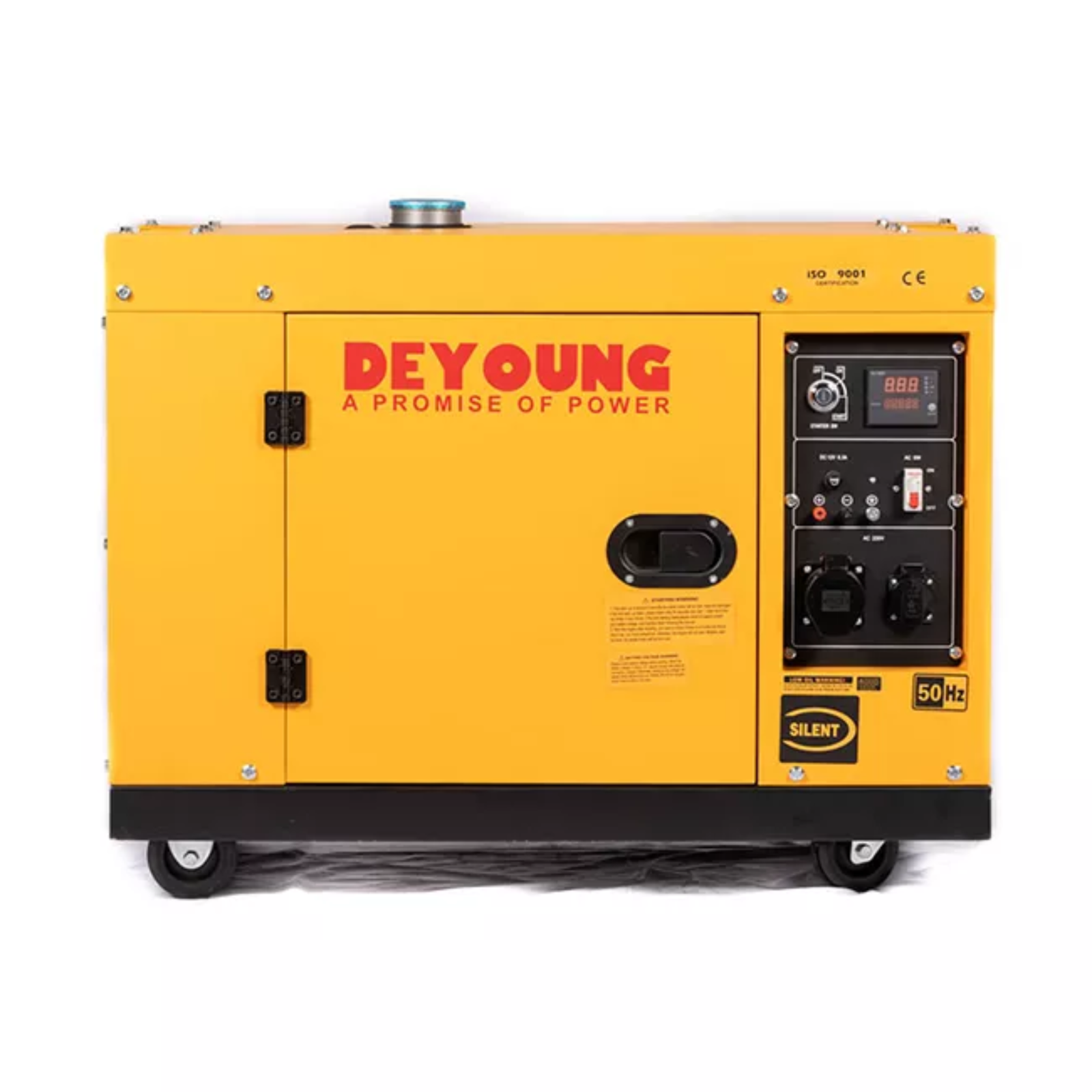

    Model C Canopy Silent Diesel Generator ARL-DY-LN-C

    Product Description: The ARL-DY series Model C Canopy Silent Diesel Generator ARL-DY-LN-C are designed for quiet operation and reliable power. Each model features an electric start system and is ideal for various applications where power is required in noise-sensitive environments. The “Model C Canopy” designation suggests these units have a specific type of protective enclosure.

    Model Specifications:

    Feature ARL-DY6700LN-C ARL-DY7500LN-C ARL-DY9500LN-C
    Rated Power (kW/kVA) 4.5/5.0 5.0/6.0 6.0/7.5
    Max. Power (kW/kVA) 5.0/5.5 5.5/6.5 6.5/8.0
    Rated Frequency (Hz) 50/60 50/60 50/60
    Rated Voltage (V) 110/220V, 120/240V, 220V, 230V, 220/380V, 230/400V, 240/415V 110/220V, 120/240V, 220V, 230V, 220/380V, 230/400V, 240/415V 110/220V, 120/240V, 220V, 230V, 220/380V, 230/400V, 240/415V
    Starting System Electric start Electric start Electric start
    Engine Model DY186FA(E) DY188FE DY192FE
    Engine Power (HP) 10 12 14
    Engine Speed (RPM) 3000/3600 3000/3600 3000/3600
    Displacement (cc) 418 456 498
    Fuel Tank Capacity 16L 16L 16L
    Lub. Oil Capacity 1.65L 1.65L 1.65L
    Net Weight (kg) 165 167 175
    Gross Weight (kg) 170 172 180
    Size (mm) 950 x 550 x 760 950 x 550 x 760 950 x 550 x 760

    Key Points:

    • Model C Canopy: These models have a specific canopy design, likely for weather protection or noise reduction.
    • Silent Operation: The “LN” designation indicates low noise operation.
    • Electric Start: All models feature electric starting for convenience.
    • Common Specifications: Fuel tank capacity, lubrication oil capacity, and physical size are the same across all three models.
    • Progressive Power Increase: The models offer a progressive increase in power output, engine power, and displacement.

    ARAB LAND SOLUTIONS is a pioneer in sustainable solutions, offering a comprehensive range of products and services to help businesses achieve their environmental goals. Our innovative offerings include:

    • Renewable Energy Systems: Our solar panels and wind turbines harness the sun’s and wind’s power, providing clean energy.
    • Water Conservation Strategies: Conserve precious water resources with our advanced water treatment plants, rainwater harvesting systems, and efficient irrigation technologies.
    • Sustainable Building Technologies: Create eco-friendly and energy-efficient buildings with our sustainable construction materials, green roofs, and innovative building practices.

    Our expertise and commitment to environmental stewardship make us your trusted partner in achieving a greener tomorrow. Store

    ARAB LAND Solutions, Musaffah – Mussafah 32/1 – Abu Dhabi, UAE.

    info@arablandsolutions.com

    0 reviews
    0
    0
    0
    0
    0

    Reviews

    Clear filters

    There are no reviews yet.

    Be the first to review “Model C Canopy Silent Diesel Generator ARL-DY-LN-C”

    Your email address will not be published. Required fields are marked *

    You have to be logged in to be able to add photos to your review.

    ARL Solutions – Shipping & Delivery Information

    ARL Solutions – Shipping & Delivery

    Delivery within the UAE:

    • ARL Solutions provides delivery services throughout the United Arab Emirates.

    International Orders (Outside UAE):

    • For customers located outside the UAE, orders are available for collection at:
      • Warhorse, Musaffah, Abu Dhabi.
    • For international delivery options, please contact ARL Solutions directly.

    Shipping Costs:

    • Shipping costs are variable and depend on:
      • Customer’s location
      • Specific product ordered
    • Some products offer free shipping, while others incur charges based on location and product.
    • For precise shipping costs, please contact ARL Solutions.

    Estimated Delivery Time:

    • Delivery times can range from 1 day to 2 months after an order is placed.
    • This extended timeframe is due to some products requiring production after an order is received.
    • For an estimated delivery time for your specific order, please contact ARL Solutions.

    Contact ARL Solutions:



    Custom and Branded Products Looking for a custom product or items with your branding? ARL Solutions can help! Once you place an inquiry for a custom or branded product, they'll reach out to you within 24 hours to discuss your needs. How to Get in Touch You can contact ARL Solutions using any of the following: Whatsapp / Call: +971 50 688 1270 Email: sales@arablandsolutions.com Contact Page: https://store.arablandsolutions.com/contact-us/

    RELATED PRODUCTS

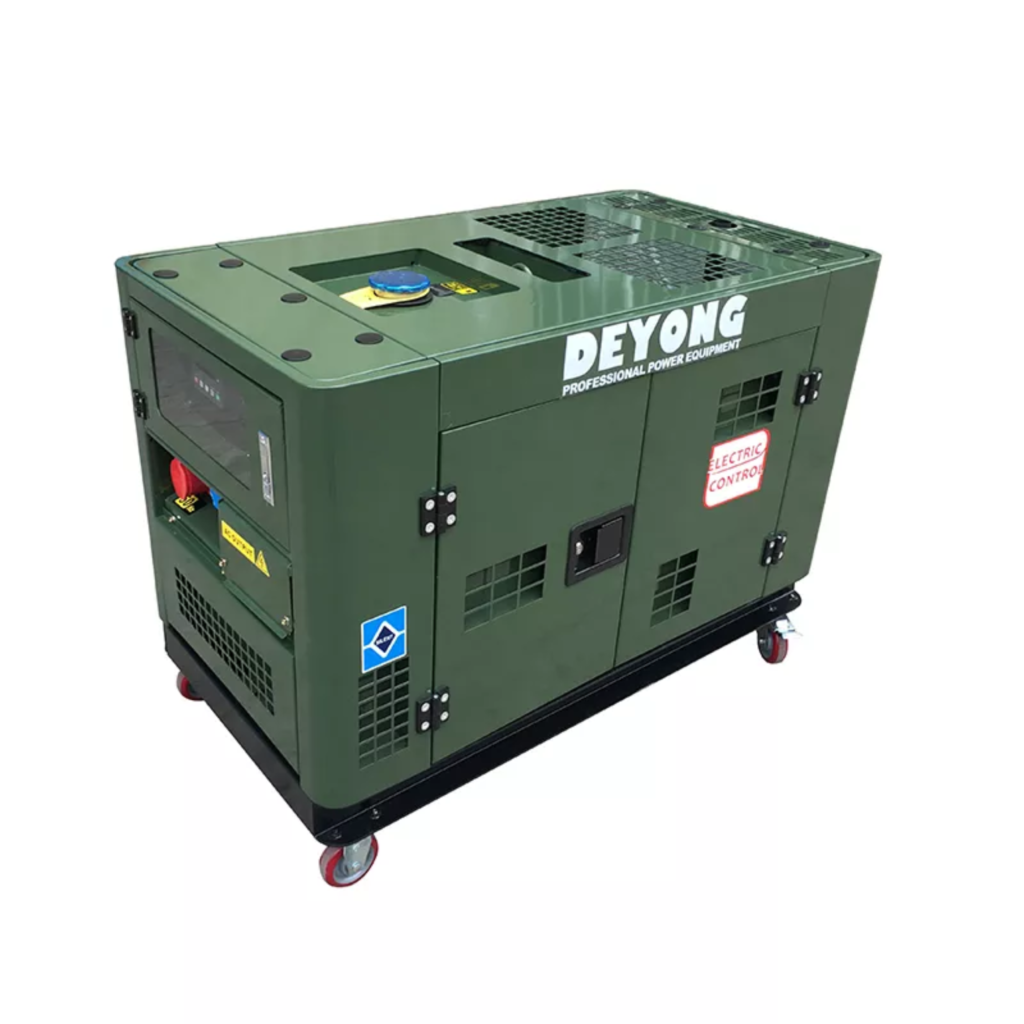

    Air Cooled Diesel Generator ARL-DY16000LN
