Vacuum Packing Machine for Brick Type Bag (Coffee Powder Packaging Machine)
Vacuum Packing Machine for Brick Type Bag (Coffee Powder Packaging Machine)

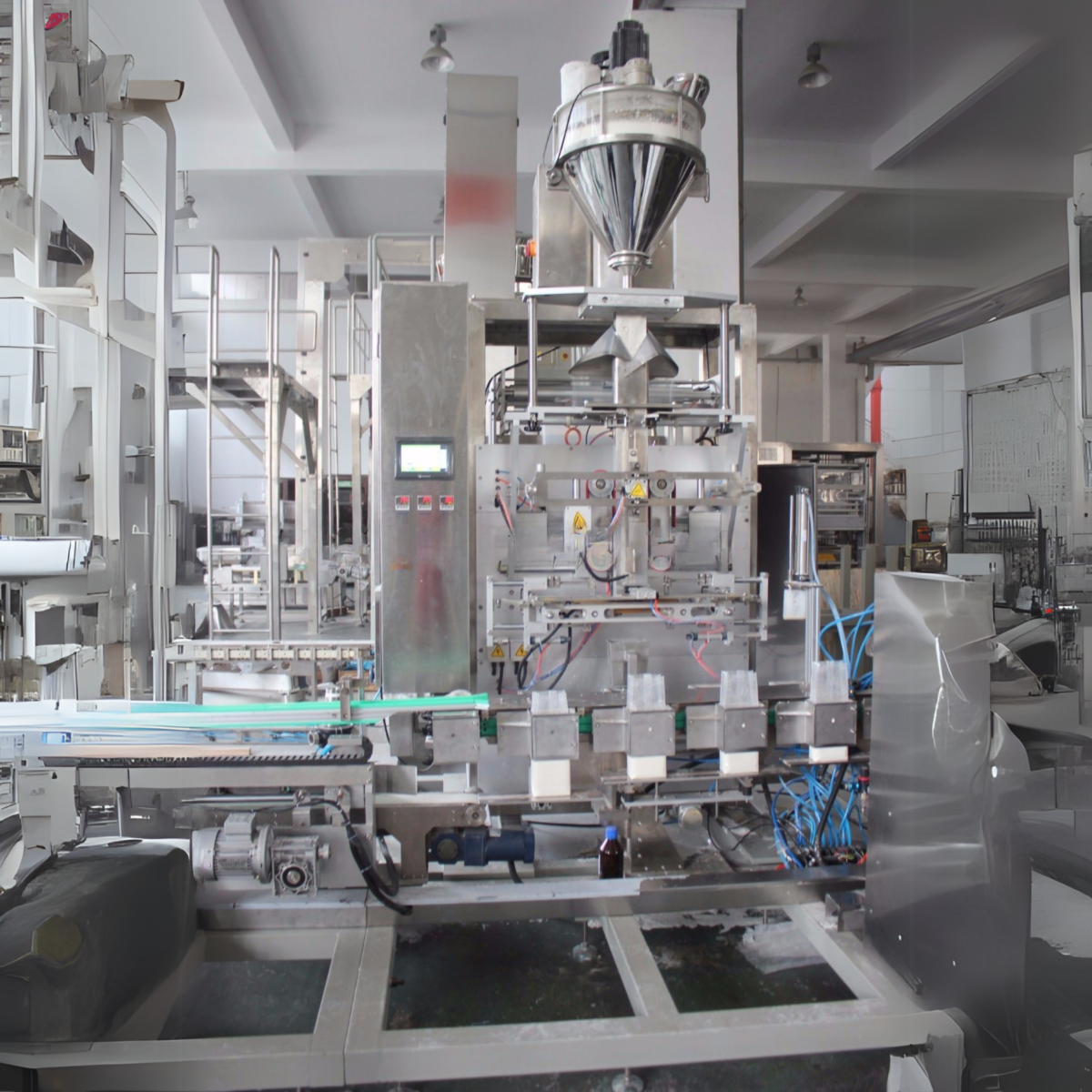

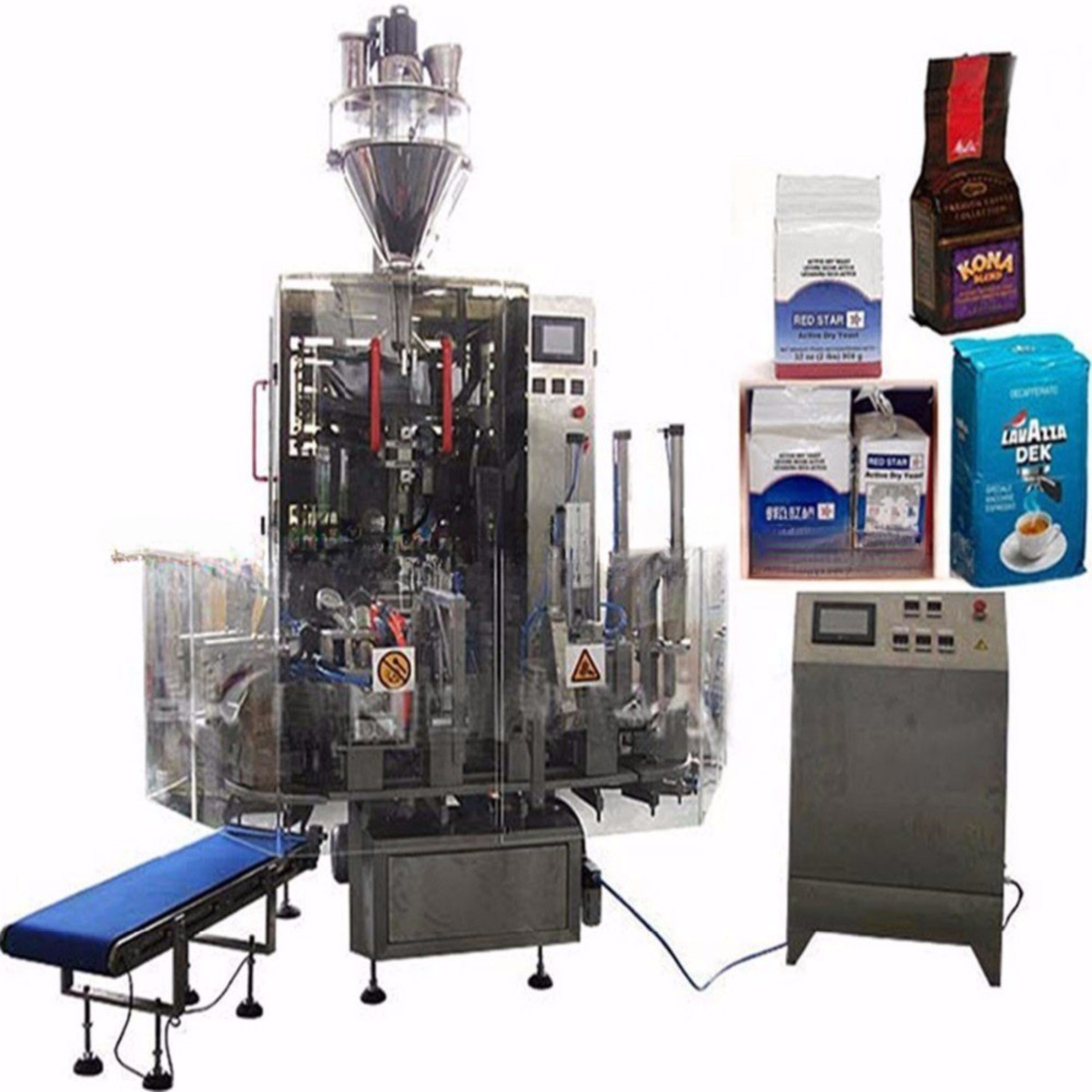

Product Description: This advanced Vacuum Packing Machine for Brick Type Bag system is specifically designed for packaging coffee powder into brick-type bags with vacuum sealing and reshaping capabilities. The system comprises a Vacuum & Bag Reshape System, an Auger Filler, and a Vertical Packing Machine, working together to deliver high-quality, airtight packaging. The machine offers adjustable bag sizes to accommodate various product requirements and boasts advantages such as fast packing speeds, consistent and continuous sealing, an appealing aesthetic, and superior vacuum preservation. It is widely applicable in the food, pharmaceutical, chemical, and other industries.
System Components:
- Vacuum & Bag Reshape System:
- Automatically vibrates, forms, vacuums, and reseals brick-type bags.
- Stable operation with SIEMENS PLC and Panasonic Servo Drive.
- Working steps: Retrieves bag from vertical form fill & seal machine, vibrates the bag, forms the bag shape, vacuums & seals, and outputs the finished bag.
- Auger Filler:
- Servo motor controlled auger filling for precise measurements.
- Detachable design for easy cleaning.
- Simple and compact design.
- All stainless steel product contact parts; non-contact parts are stainless steel and aluminum.
- Vertical Packing Machine:
- Fully controlled by Siemens or Omron PLC & Touch-Screen interface.
- Real-time display of minute capacity on the touch screen.
- Panasonic servo-driven film transport and horizontal jaw motion.
- Safe and quick change of tube and collar with a pull-out bracket.
- Optoelectronic film position detection for accurate film alignment.
- Electrical photo sensor for color code-based bag length control.
- Unique pneumatic film-reel locking to prevent film drawing deflection.
- Independent temperature adjustment.
- Compatibility with various heat-sealable laminated films (PE/BOPP, CPP/BOPP, CPP/PET, PE/NYLON, aluminum foil-based).
- Adaptable for polyethylene film sealing with equipment changes.
Technical Specifications:
- Bag Type: Vacuum & reseal brick bag
- Maximum Capacity: Up to 2kg
- Minimum Capacity: Depends on product characteristics, normally 5g
- Speed: 8-20 bags/min (depends on product characteristics)
- Hopper Capacity: 50 Litres
- Weighing Accuracy: ±0.2% (depends on product characteristics)
- Bag Length: 50-340mm
- Bag Width: 80-260mm
- Reel Film Width: ≤ 540mm
- Film Thickness: 0.04-0.12mm
- Reel Outer Diameter: 400mm
- Reel Inner Diameter: 75mm
- Voltage: AC220V/50Hz 1 phase or customer specification
- Packaging Machine Dimensions/Power/Weight: 3kW, 800kg, 165011401650mm
- Auger Filler Dimensions/Power/Weight: 1.2kW, 250kg, 10009502200mm
- Vacuum & Bag Reshape System Dimensions/Power/Weight: 5.5kW, 600kg, 31256601050mm
- Compressed Air Requirement: 0.6MPa 0.36M³/min
