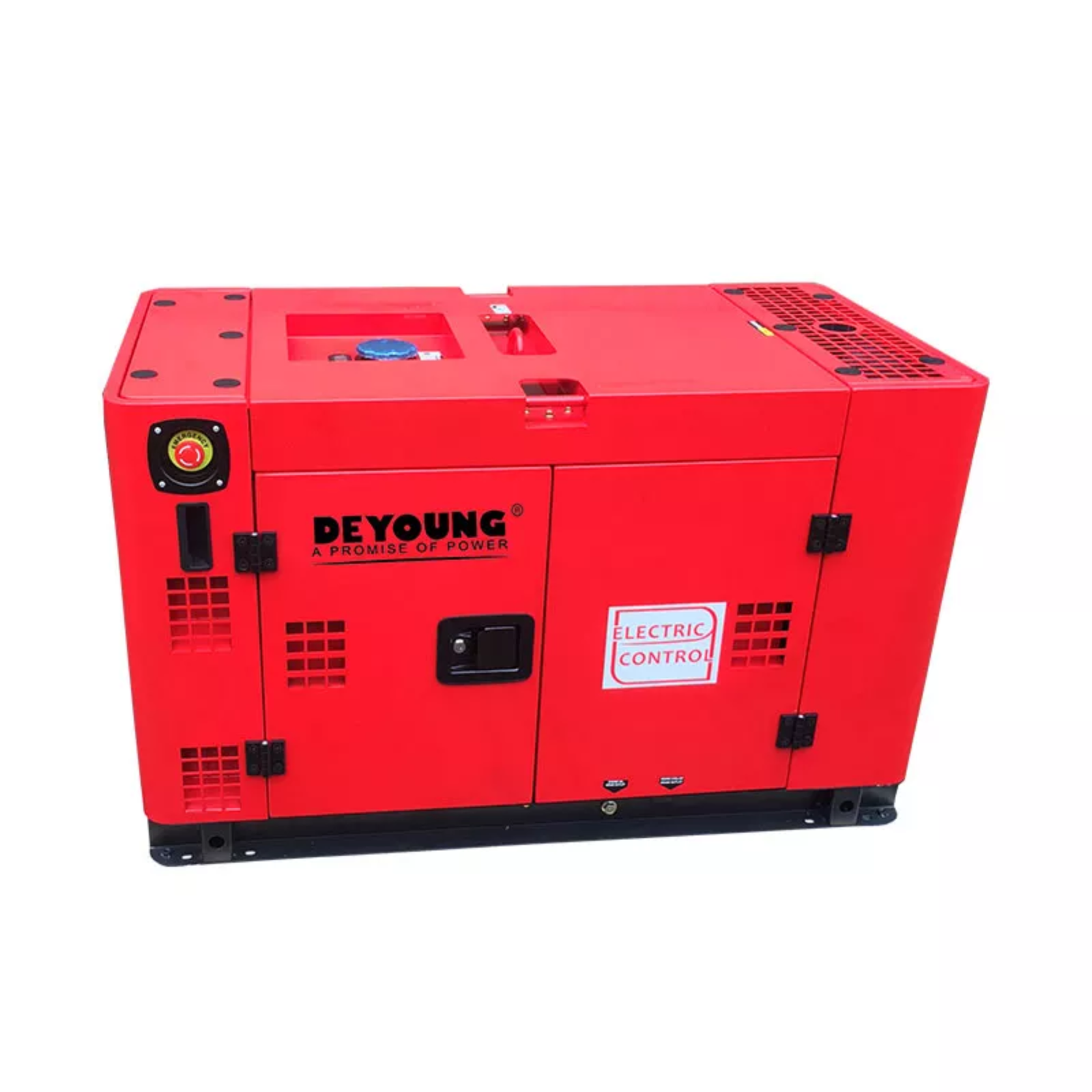

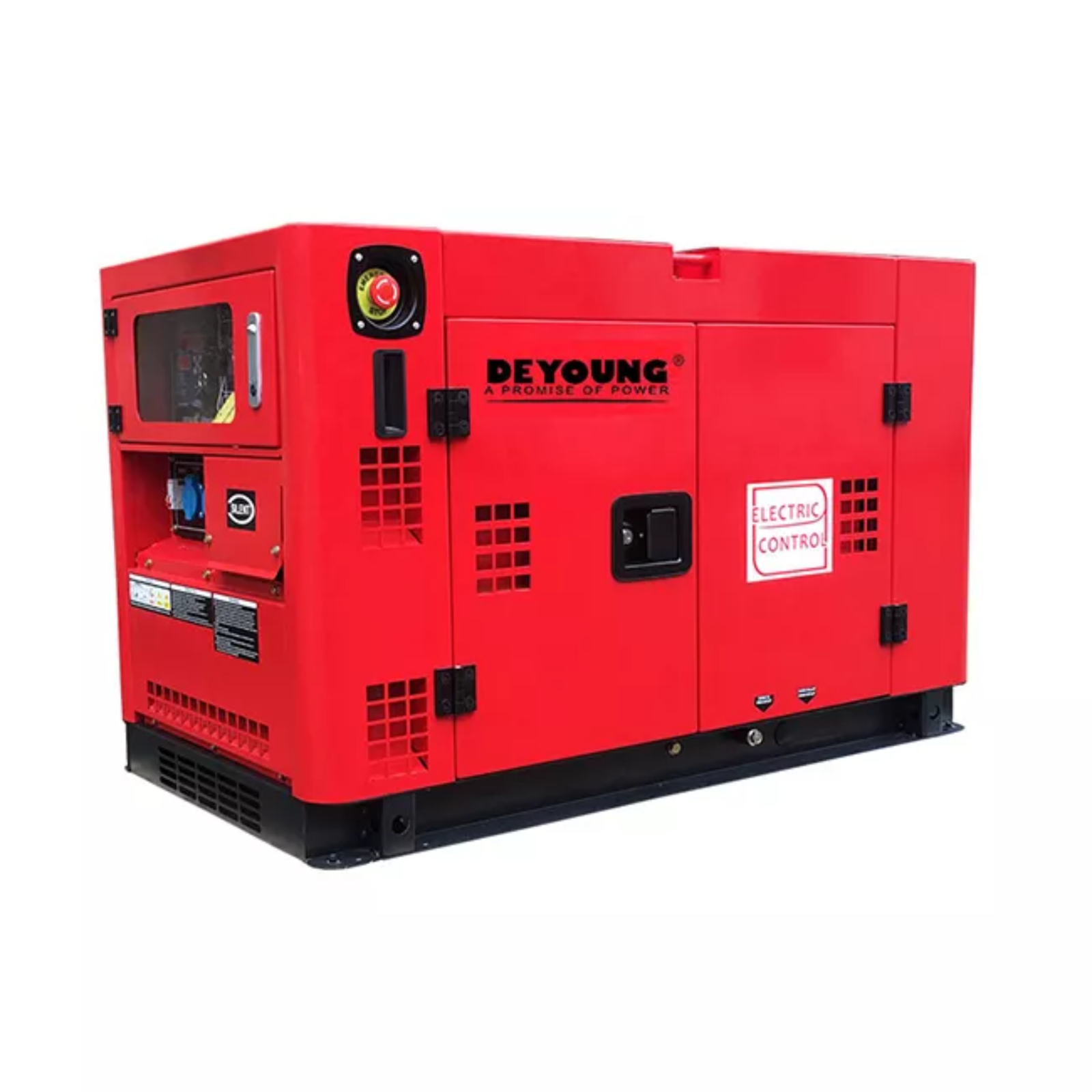

Water Cooled Diesel Generator ARL-DY12000LN
Water Cooled Diesel Generator ARL-DY12000LN
Click to enlarge
    Water Cooled Diesel Generator ARL-DY12000LN
    Water Cooled Diesel Generator ARL-DY12000LN
    ARL-DY11000LN Diesel Generator
    ARL-DY11000LN Diesel Generator
    Back to products
    Air Cooled Diesel Generator ARL-DY16000LN
    Air Cooled Diesel Generator ARL-DY16000LN

    Water Cooled Diesel Generator ARL-DY12000LN

    19 People watching this product now!

    Add to wishlist
    Categories: ,
    Brand: ARL Solutions

    🥳 Get 5% Off on Manual Stackers

    Use the coupon code ARL-5 at checkout to get 5%* off the Robust Manual Pallet Stacker.

    All products

    Water Cooled Diesel Generator ARL-DY12000LN Specifications

    Product Description: The ARL-DY12000LN water-cooled diesel generator is designed for reliable power and efficient performance in demanding applications. This model features an electric start system and offers a range of voltage options, making it versatile for various uses. The water-cooled engine ensures optimal performance even under heavy loads and in high-temperature environments.

    Model Specifications:

    Feature ARL-DY12000LN
    Rated Frequency (Hz) 50
    Rated Power (kW) 10
    Maximum Power (kW) 11
    Rated Voltage (V) 220V, 230V, 240V, 220/380V, 230/400V, 240/415V
    Rated Current (A) 45A (Single Phase), 13.6/19A (Three Phase)
    Rated Speed (r/min) 3000
    Starting Way Electric start
    Cooling Way Water cooled
    Ways of Excitation Self-excited constant voltage (AVR)
    Total Mass (kg) 358
    Overall Dimension (mm) 1260 x 750 x 890
    Engine Model EV80
    Engine Types 2-Cylinder, 4-Stroke, Water-cooled, V Type
    Displacement (ml) 997
    Bore*Stroke (mm) 2-80 x 79
    Fuel Type Diesel fuel: 0#(summer); -10#(winter); -35#(cold)
    Fuel Consumption g/kw.h ≤288
    Compression Ratio 19:01
    Lube CD or SAE10W-30 or 15W-40
    Fuel Tank Capacity (L) 34

    Key Points:

    • Water-Cooled Engine: Ideal for continuous operation and high ambient temperatures.
    • Versatile Voltage Options: Supports a wide range of single-phase and three-phase voltages.
    • Electric Start: Easy and convenient starting.
    • High Power Output: Suitable for demanding applications.
    • Large Fuel Tank: Provides extended runtime.

    ARAB LAND SOLUTIONS is a pioneer in sustainable solutions, offering a comprehensive range of products and services to help businesses achieve their environmental goals. Our innovative offerings include:

    • Renewable Energy Systems: Our solar panels and wind turbines harness the sun’s and wind’s power, providing clean energy.
    • Water Conservation Strategies: Conserve precious water resources with our advanced water treatment plants, rainwater harvesting systems, and efficient irrigation technologies.
    • Sustainable Building Technologies: Create eco-friendly and energy-efficient buildings with our sustainable construction materials, green roofs, and innovative building practices.

    Our expertise and commitment to environmental stewardship make us your trusted partner in achieving a greener tomorrow. Store

    ARAB LAND Solutions, Musaffah – Mussafah 32/1 – Abu Dhabi, UAE.

    info@arablandsolutions.com

    0 reviews
    0
    0
    0
    0
    0

    Reviews

    Clear filters

    There are no reviews yet.

    Be the first to review “Water Cooled Diesel Generator ARL-DY12000LN”

    Your email address will not be published. Required fields are marked *

    You have to be logged in to be able to add photos to your review.

    ARL Solutions – Shipping & Delivery Information

    ARL Solutions – Shipping & Delivery

    Delivery within the UAE:

    • ARL Solutions provides delivery services throughout the United Arab Emirates.

    International Orders (Outside UAE):

    • For customers located outside the UAE, orders are available for collection at:
      • Warhorse, Musaffah, Abu Dhabi.
    • For international delivery options, please contact ARL Solutions directly.

    Shipping Costs:

    • Shipping costs are variable and depend on:
      • Customer’s location
      • Specific product ordered
    • Some products offer free shipping, while others incur charges based on location and product.
    • For precise shipping costs, please contact ARL Solutions.

    Estimated Delivery Time:

    • Delivery times can range from 1 day to 2 months after an order is placed.
    • This extended timeframe is due to some products requiring production after an order is received.
    • For an estimated delivery time for your specific order, please contact ARL Solutions.

    Contact ARL Solutions:



    Custom and Branded Products Looking for a custom product or items with your branding? ARL Solutions can help! Once you place an inquiry for a custom or branded product, they'll reach out to you within 24 hours to discuss your needs. How to Get in Touch You can contact ARL Solutions using any of the following: Whatsapp / Call: +971 50 688 1270 Email: sales@arablandsolutions.com Contact Page: https://store.arablandsolutions.com/contact-us/

    RELATED PRODUCTS

    Big Fuel Tank Silent Diesel Generators ARL-DY-LN
    Add to wishlist

    Big Fuel Tank Silent Diesel Generators ARL-DY-LN

    SKU: ARL-DY-LN
    Read more
    Quick view

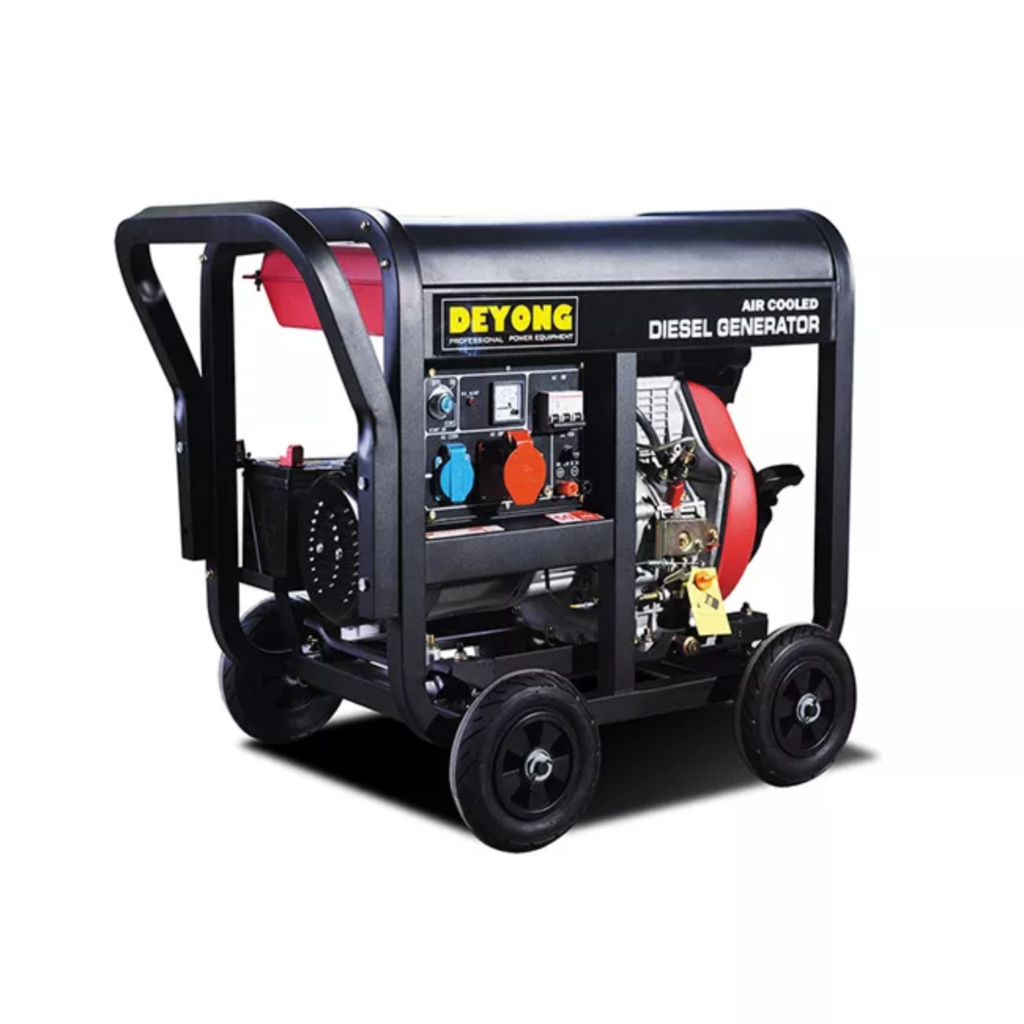

    Diesel Generators Square frame with handle & 4pcs wheels ARL-DY6700CXE-B4
    Add to wishlist

    Diesel Generators Square frame with handle & 4pcs wheels ARL-DY-B4

    SKU: ARL-DY-B4
    Read more
    Quick view

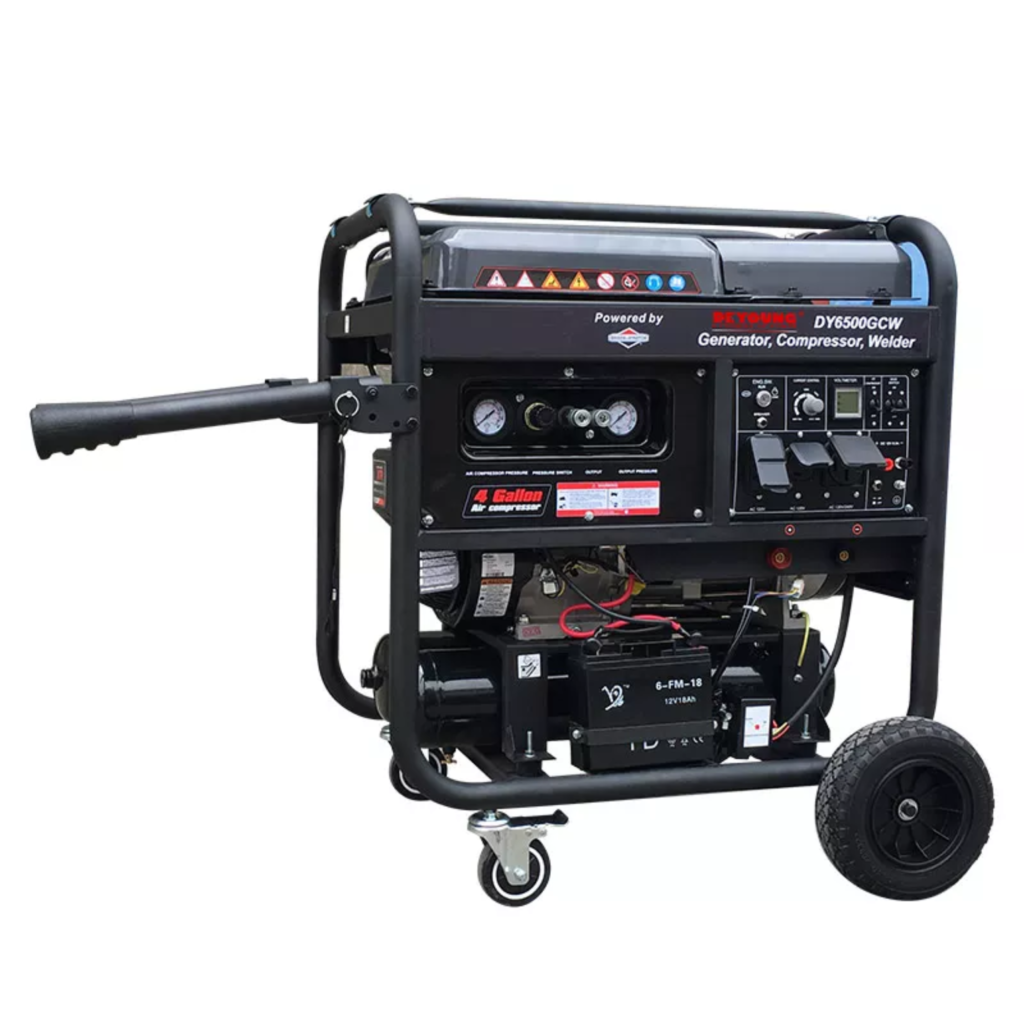

    Gasoline Triad 3-in-1 Generator Welding Compressor ARL-DY6500GEW
