Wide Angle Camera ARL-MS-C375AHD

SKU: ARL-MS-C375AHD Categories: AHD Cameras, Cameras, Driving Control System

Wide Angle Camera (ARL-MS-C375AHD)

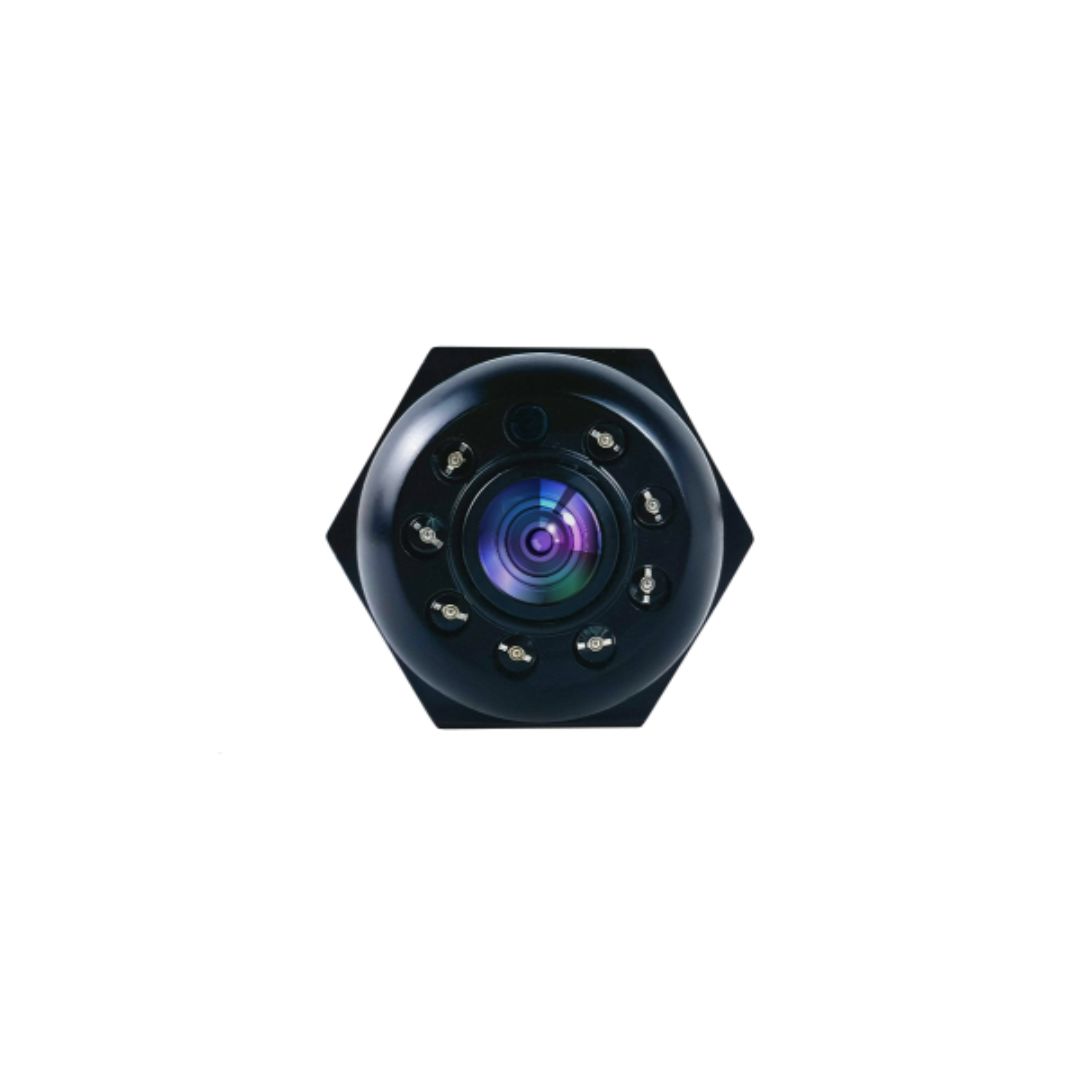

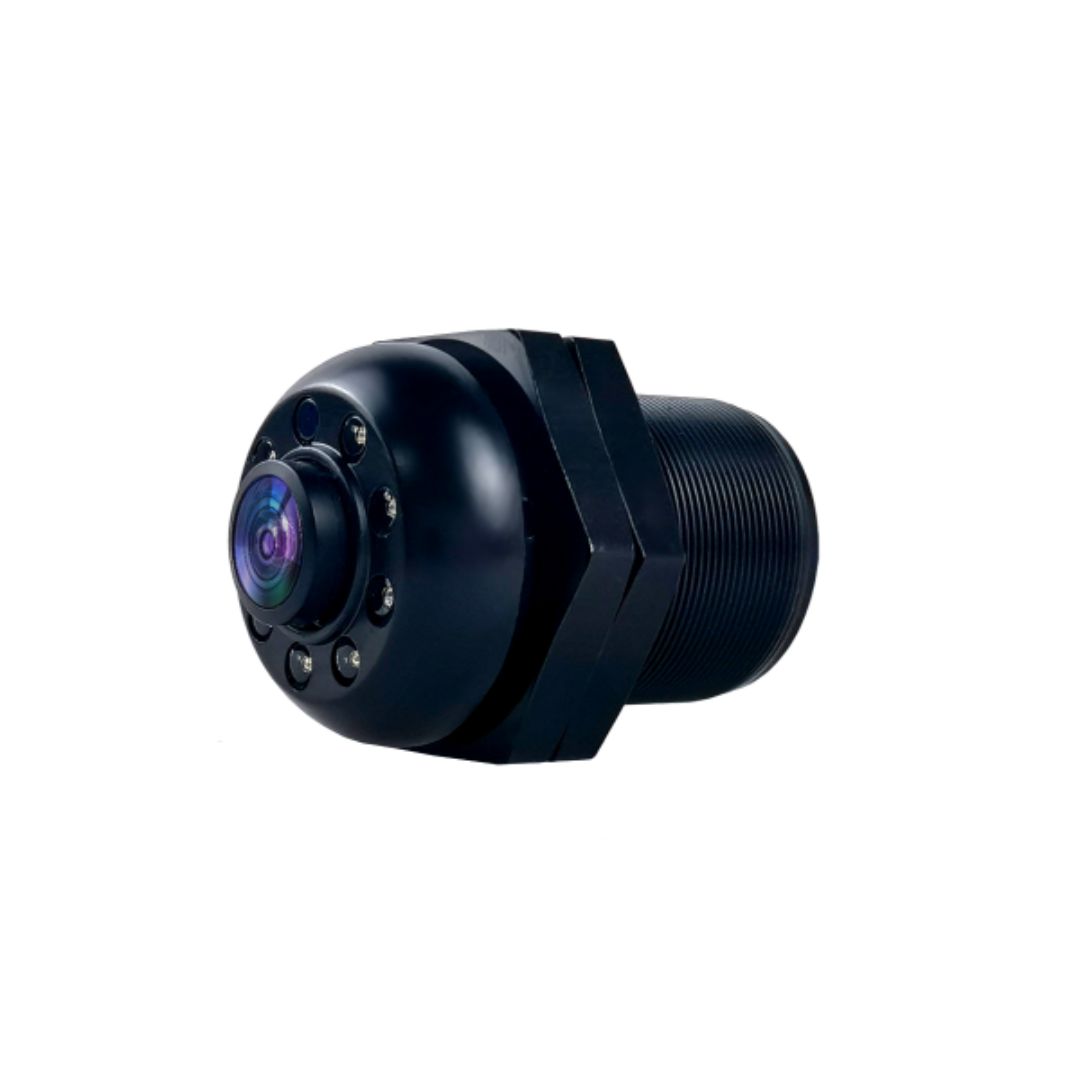

The ARL-MS-C375AHD is a high-definition 720P camera designed to provide a wide field of view. Wide Angle Camera (ARL-MS-C375AHD) features a 1/3 inch CMOS sensor and a FH8536H ISP model for excellent image processing. The camera supports wide dynamic range, ensuring good visibility in scenes with both bright and dark areas. It boasts excellent low-light performance with a minimum illumination of 0.01Lux (F1.2, AGC ON). The camera has a mirror function and automatic shutter control. It operates on a rated DC12V and has a low current consumption of ≤ 150mA with infrared light on. Built for durability, it has an IP68 waterproof rating and an 8G seismic rating, making it suitable for demanding environments.

Key Features:

HD 720P Resolution: Provides clear and detailed images.
Wide Dynamic Range: Excellent visibility in varying light conditions.
Exceptional Low Light Performance: 0.01Lux minimum illumination.
Ultra-Wide Viewing Angle: 96°(D) / 144°(H) / 111°(V).
Mirror Function: Offers flexible viewing options.
Robust Design: IP68 waterproof and 8G seismic rating.
Wide Operating Temperature: Reliable performance from -40℃ to +70℃.

Technical Specifications:

Feature	Specification
Synchronization Mode	Internal Synchronization
Sensor Type	1/3 inch CMOS
ISP Model	FH8536H
Effective Pixel	1280(H) x 720(V)
Image Sensor Pixel Size	6.20 um x 7.40 um
Working Voltage	DC12V rated
Working Current	Infrared light on ≤ 150mA
Wide Dynamic Range	Support
Video Output	1.0VP-P 75Ω
Audio	No
Mirror Function	Mirror
Shutter	Auto
Minimum Illumination	0.01Lux @(F1.2, AGC ON)
S/N Ratio	More than 46 Db
Frame Rate	AHD@25fps
Parking Grid	NO
View Angle (Diagonal/Horizontal/Vertical)	96°±3(D) / 144°±3(H) / 111°±3(V)
Seismic Rating	8G
IP Rating	IP68
Operating Temp	-40℃ — +70℃

Feature	Specification
Pixel Dimension	8um * 2.8um
Frame Rate	30FPS
Effective Pixel	1280(H) x 720(V)
Scanning System	Progressive Scan
Backlight Compensation	Automatic
Minimum Light	0.01Lux @(F1.2,AGC ON)，0LUX with IR
Shutter	1/30（1/25）～1/50,000s
Resolution	720P
White Balance	Automatic
AGC	Automatic
Synchronization Method	Internal Synchronization
Video Output	1Vp-p, 75 ohms
S/N Ratio	≥38（dB）
Wide Dynamic Range	81db
Degree (Diagonal/Horizontal/Vertical)	D:150±5 / H:120±5 / V:60±5°
Voltage	DC12V (+/-10%)
Working Current	≤100mA
Waterproof Level	IP 68
Audio Frequency	No
Mirror Function	Mirror
Reversing Line	None
Operating Temperature	-20℃ – +70℃, humidity max 95%
Storage Temperature	-30℃ – +80℃, humidity max 95%
Seismic Rating	8G
