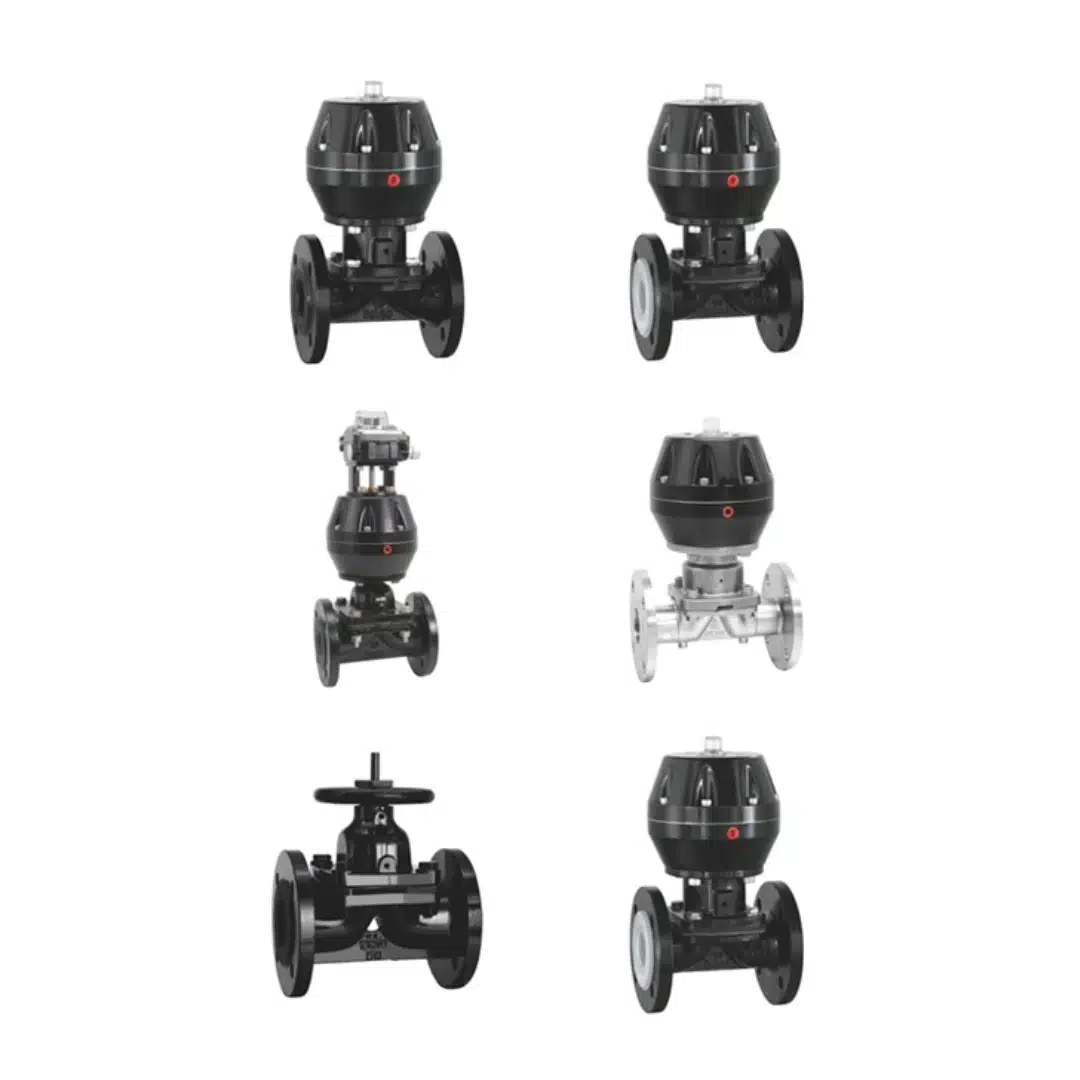

Rubber Lined Pneumatic Diaphragm Valve

Rubber Lined Pneumatic Diaphragm Valve

The Rubber Lined Pneumatic Diaphragm Valve ARL-PDV02 is engineered for precise flow control and dependable isolation in industrial fluid applications. Built with options for a double acting or single acting pneumatic actuator, this valve accommodates multiple automated configurations including normally closed and normally open systems. The Rubber Lined Pneumatic Diaphragm Valve ARL-PDV02 utilizes resilient WCB, SS316, or SS316L body constructions paired with heavy-duty EPDM or EPDM+PTFE diaphragm options to manage challenging media. Featuring standard flange end connections that comply with international standards, it integrates easily with accessories like solenoid valves and limit switch boxes for complete process control.

Key Features:

• Automated flow management utilizing high-performance pneumatic actuators
• Versatile operating configurations including double acting, single acting normally closed, and single acting normally open control
• Flexible structural options with multiple body metals and durable EPDM-based diaphragm materials
• Multi-standard flange connections designed to fit standardized industrial piping configurations
• Modular compatibility with essential operational accessories like filters, positioners, and manual hand wheels

Technical Specifications:

• Size: 1/2″ – 10″ (15mm – 250mm)
• Body: WCB, SS316, SS316L
• Diaphragm Material: EPDM, EPDM+PTFE
• Pressure supply: 5.5bar
• Pneumatic Actuator Control: Double acting, Single acting normally closed, Single acting normally open
• Ends: Flange
• End connections: * ASME B16.34 class 150, ASME B16.34 class 300

• • DIN PN16, PN20

  • JIS 10K, 20K

• Pneumatic accessories: Solenoid valve, limit switch box, filter, E/P positioner, hand wheel
