Top guided single seat control valve

Top guided single seat control valve

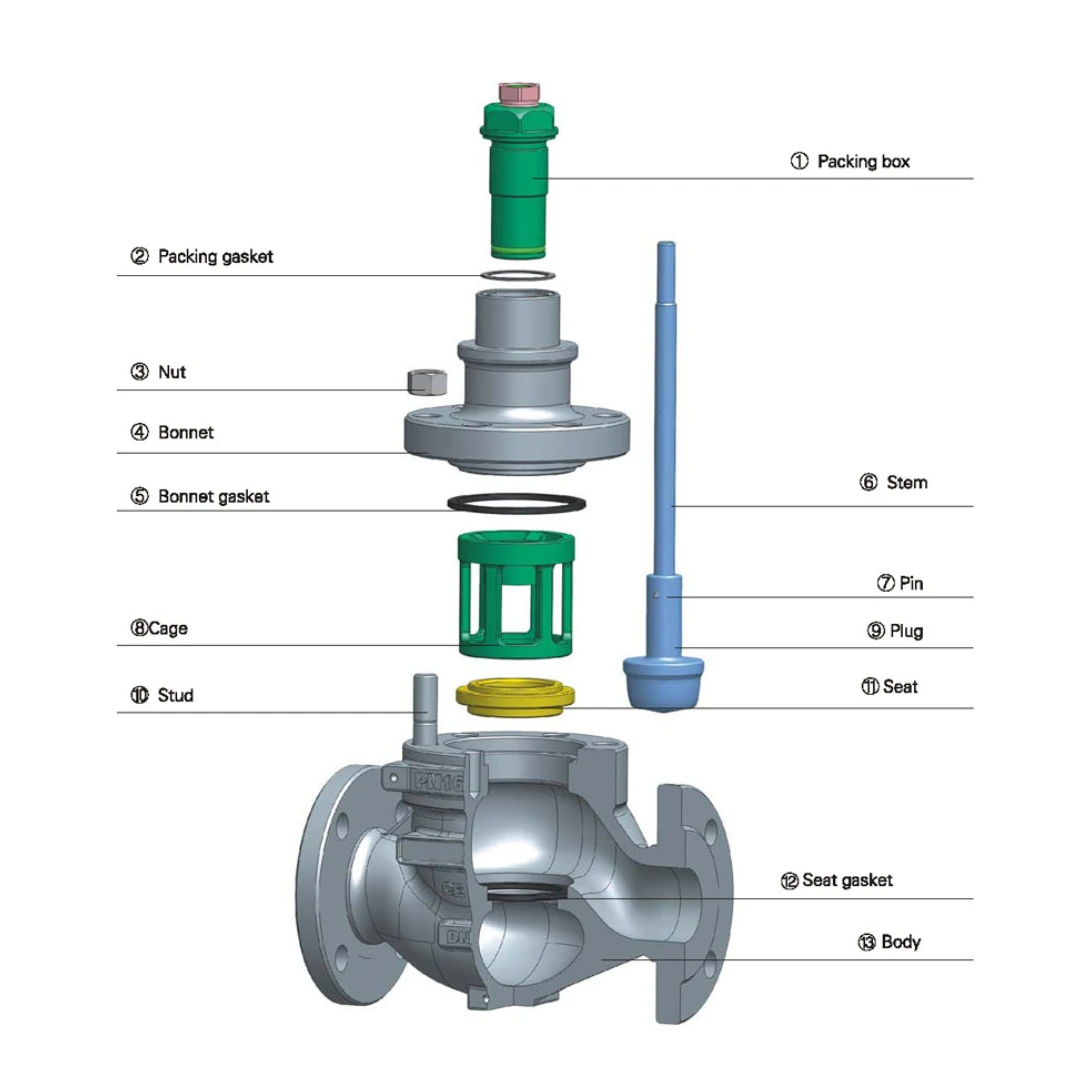

The Top guided single seat control valve ARL adopts a top guided unbalanced structure, engineered for high strength and heavy load capabilities. It features an S-type flow channel that ensures low pressure drop loss and a high flow coefficient with a wide adjustable range. Specifically designed for tight shut-off in applications with relatively low differential pressure, the Top guided single seat control valve ARL is ideal for controlling medium flow or pressure. It incorporates a press-in type seat design to solve disassembly issues and a flow-to-open design for superior controllability and low flow characteristic distortion.

Key Features:

• Top Guided Unbalanced Structure: Provides high strength and heavy load capacity for stable operation.
• Efficient Flow Design: Utilizes an S-type flow channel for low pressure drop loss and high flow characteristic precision.
• Innovative Seat Design: Employs a press-in type seat that avoids traditional thread screw-in problems and prolongs service life.
• Customizable Cages: Special cages with noise reduction and anti-cavitation functions are available based on service requirements.
• Enhanced Control: The flow-to-open design ensures excellent controllability of small openings.

Technical Specifications:

• Size Range: DN10-600 (3/8”-24”); parameter specific range DN15-200 (1/2”-8”)
• Pressure Class: PN1.6, 4.0, 6.3Mpa (ANSI 150, 300, 600LB)
• Applicable Temperature Range: -196°C ~ 550°C
• Body Type: Straight-through type, angle type
• Pipe Connection: Flange type, butt welding type
• Leakage Class: ASME B16.104 V (standard type metal seat) or VI (shut-off soft seat)
• Trim Features: Top guided, unbalanced trim, quick disassembly type structure
• Bonnet Type: Standard, heat dissipation, cryogenic, and bellows type
• Flow Characteristics: Equal percentage, linear quick open
