Ultra-quiet Duct Ventilation Fan Ultra-thin All-plastic Body ARL-BPT10-Y12A/B Series

Ultra-quiet Duct Ventilation Fan Ultra-thin All-plastic Body ARL-BPT10-Y12A/B Series

The Ultra-quiet Duct Ventilation Fan Ultra-thin All-plastic Body ARL-BPT10-Y12A/B Series features an innovative ultra-thin, all-plastic body designed for discreet and highly efficient air movement within ducting systems. These fans are engineered to operate with exceptional quietness, ensuring a peaceful environment while effectively circulating air. Ideal for various applications where silent yet powerful ventilation is crucial, the ARL-BPT-Y12A/B series provides reliable performance with a compact and durable design.

Key Features:

• Ultra-quiet operation for minimal noise disruption
• Ultra-thin, all-plastic body for lightweight durability and discreet installation
• Designed for efficient integration into ducting systems
• Provides effective nominal air volume and pressure
• Energy-efficient performance

Technical Specifications:

Model ARL-BPT10-Y12A-22 / ARL-BPT10-Y12B-22:

• Take-over specifications: Φ100 mm
• Rated Power: 26 W
• Nominal Air Volume: 132 m³/h
• Nominal Pressure: 85 Pa
• Speed: 850 r/min
• Noise: 39 dB(A)
• Opening Size: 200×200 mm
• Applicable Area: 8-12 m²
• Quantity: 8 Pc
• Gross Weight: 13.5 Kg
• Packing Size (length x width x height): 560x270x560 mm
• 3C Certification: Certified
• Energy Efficiency Rating: 2

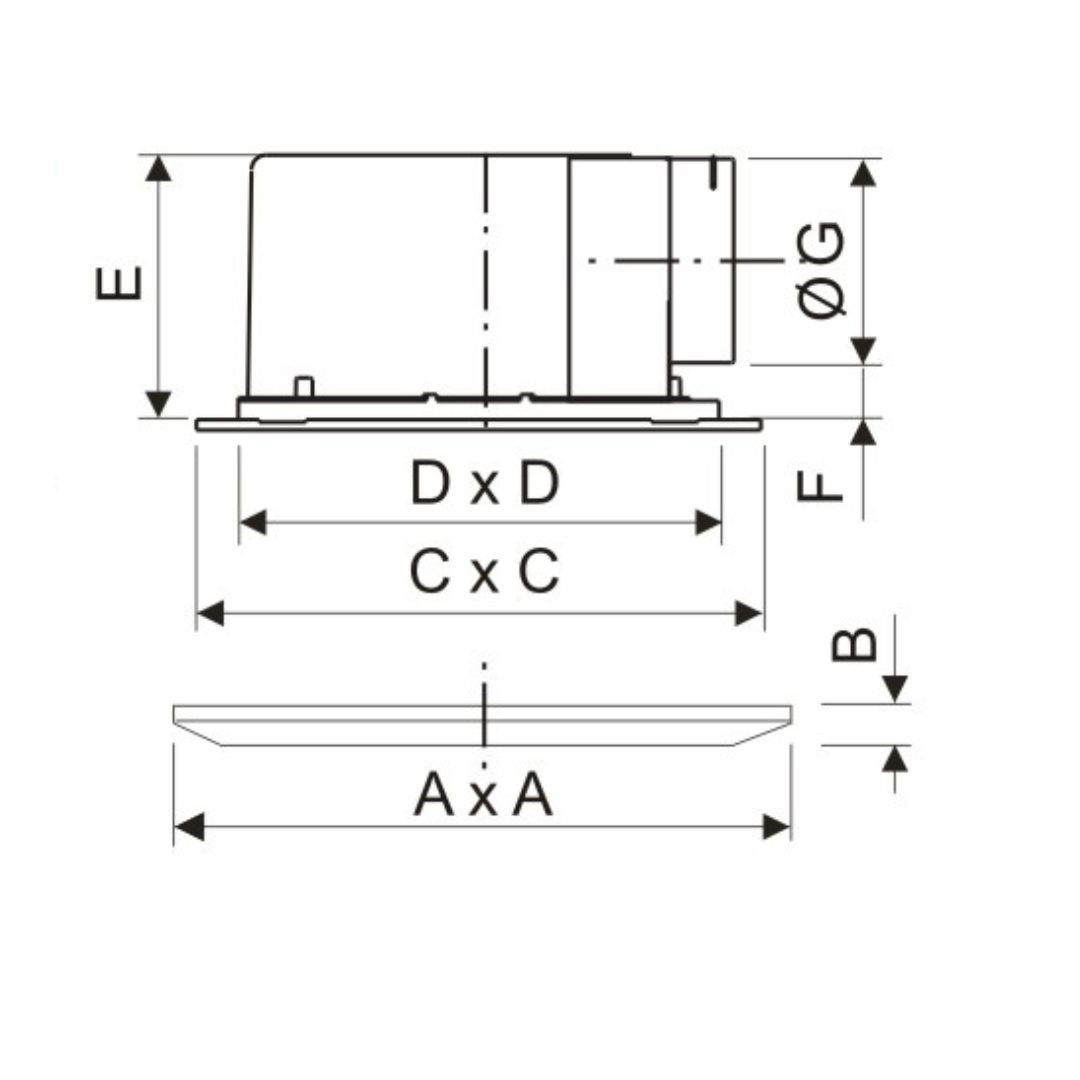

• Dimensions (mm): A: 246, B: 20, C: 238, D: 198, E: 110, F: 14

ARL-BPT15-Y12A-28 / ARL-BPT15-Y12B-28:

• Take-over specifications: Φ100 mm
• Rated Power: 28 W
• Nominal Air Volume: 168 m³/h
• Nominal Pressure: 105 Pa
• Speed: 800 r/min
• Noise: 39 dB(A)
• Opening Size: 235×235 mm
• Applicable Area: 15-20 m²
• Quantity: 8 Pc
• Gross Weight: 15 Kg
• Packing Size (length x width x height): 555x315x645 mm
• 3C Certification: Certified
• Energy Efficiency Rating: 2
• Dimensions (mm): A: 288, B: 20, C: 260, D: 230, E: 110, F: 14

Model ARL-BPT20-Y12A-31 / ARL-BPT20-Y12B-31:

• Take-over specifications: Φ100 mm
• Rated Power: 32 W
• Nominal Air Volume: 186 m³/h
• Nominal Pressure: 120 Pa
• Speed: 820 r/min
• Noise: 42 dB(A)
• Opening Size: 260×260 mm
• Applicable Area: 25-30 m²
• Quantity: 8 Pc
• Gross Weight: 17.5 Kg
• Packing Size (length x width x height): 560x350x715 mm
• 3C Certification: Certified
• Energy Efficiency Rating: 3
• Dimensions (mm): A: 324, B: 20, C: 306, D: 258, E: 110, F: 14
