Universal Relay Test Set ARL-KF86P

Universal Relay Test Set | Model: ARL-KF86P

At a Glance: Universal Relay Test Set | Model: ARL-KF86P

• Primary Use: Comprehensive testing of all types of protection relays and power system elements.
• Key Benefit: The World’s Lightest High-Power test set, offering $6$-phase current and voltage outputs with exceptional power capability (up to $\text{1000VA}$ at $\text{100A}$).
• Built For: Professionals requiring a highly mobile, powerful, and versatile test system for commissioning and maintenance in substations and industrial settings.

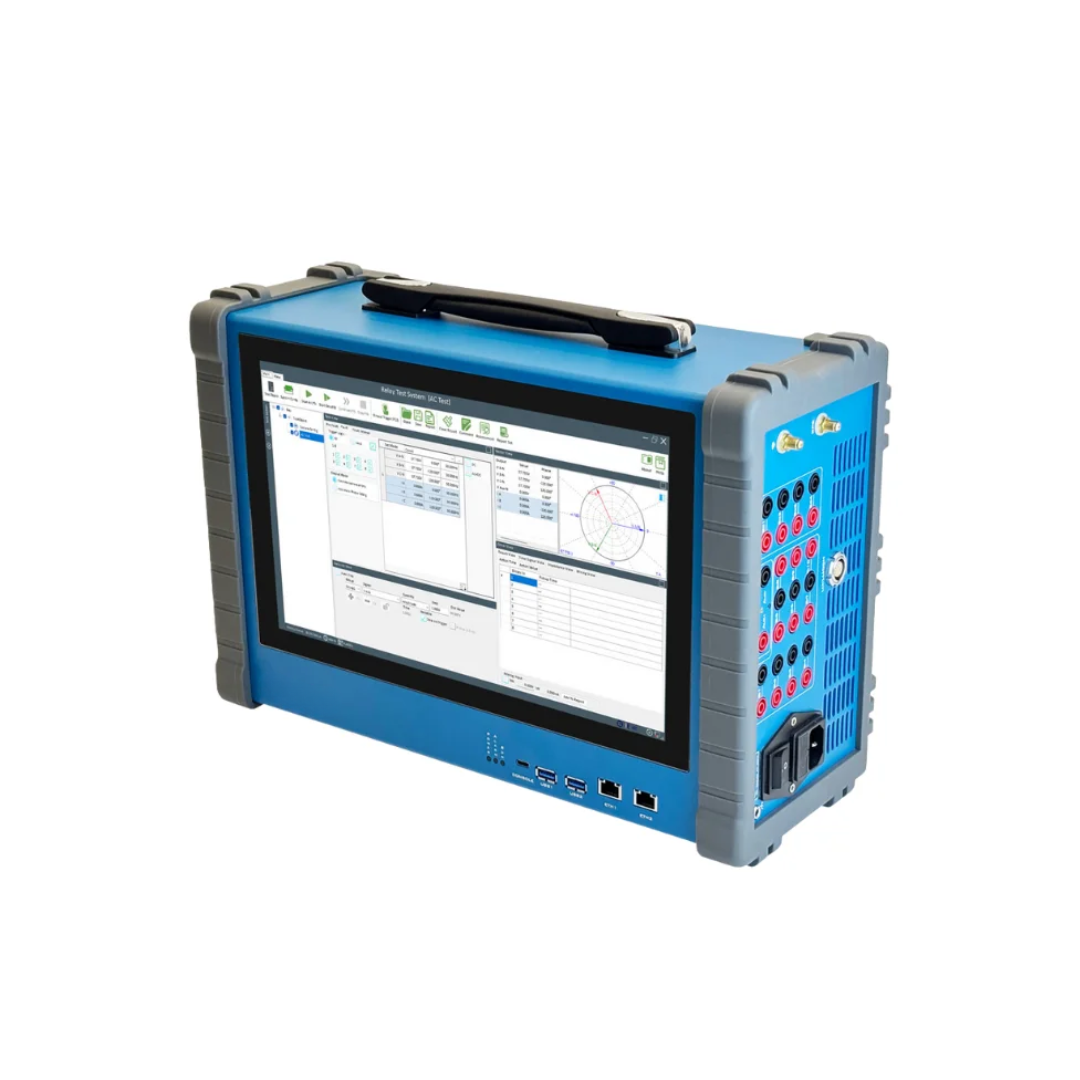

Your Solution for High-Power, High-Phase Relay Testing The Universal Relay Test Set (ARL-KF86P) stands out as the world’s lightest high-power universal relay tester, delivering robust performance without the bulk of traditional systems. It is an extremely versatile solution featuring a $\text{6}$-phase design ($\text{6}$ Current $\text{+ 6}$ Voltage) that is powerful enough to test the most demanding high-burden electromechanical relays while being precise enough for modern numerical relays. Its high-power outputs and advanced synchronization options make it the ideal tool for complex testing requirements in large power systems.

Key Features & Benefits

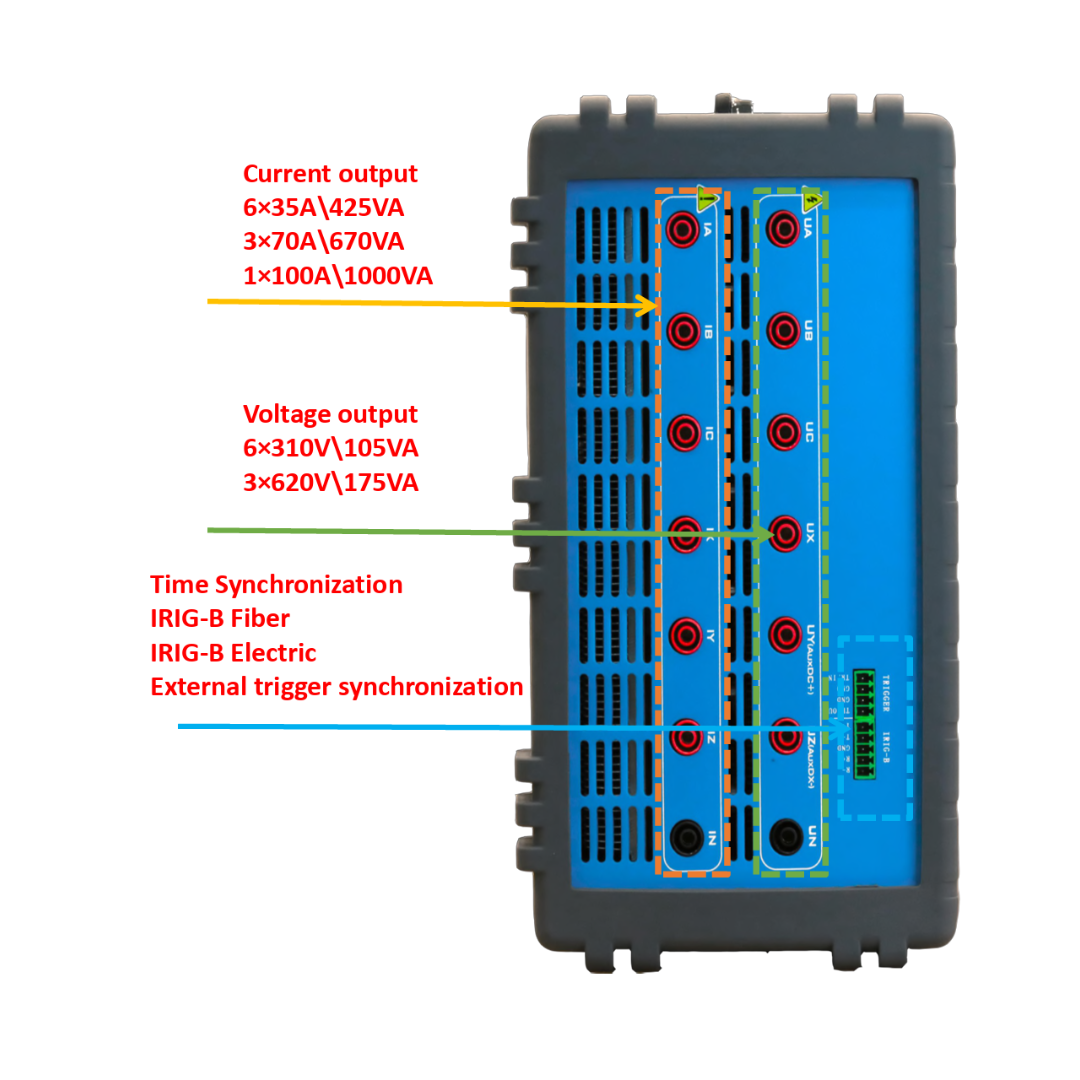

• Maximum Power Output: Achieves high current capability, including $\text{6}\times \text{35A}$ ($\text{425VA}$), $\text{3}\times \text{70A}$ ($\text{670VA}$), and a peak single-phase output of $\text{1}\times \text{100A}$ ($\text{1000VA}$).
• Flexible Voltage Outputs: Provides $\text{6}\times \text{310V}$ ($\text{105VA}$) or $\text{3}\times \text{620V}$ ($\text{175VA}$) for versatile testing of different relay types.
• Wide Operating Range: Operates with a universal power supply of $\text{85V}\sim \text{265V (AC)}$ or $\text{127V}\sim \text{350V (DC)}$.
• Advanced Synchronization: Equipped with $\text{IRIG-B}$ Fiber, $\text{IRIG-B}$ Electric, and External Trigger synchronization for end-to-end testing and precise timing.

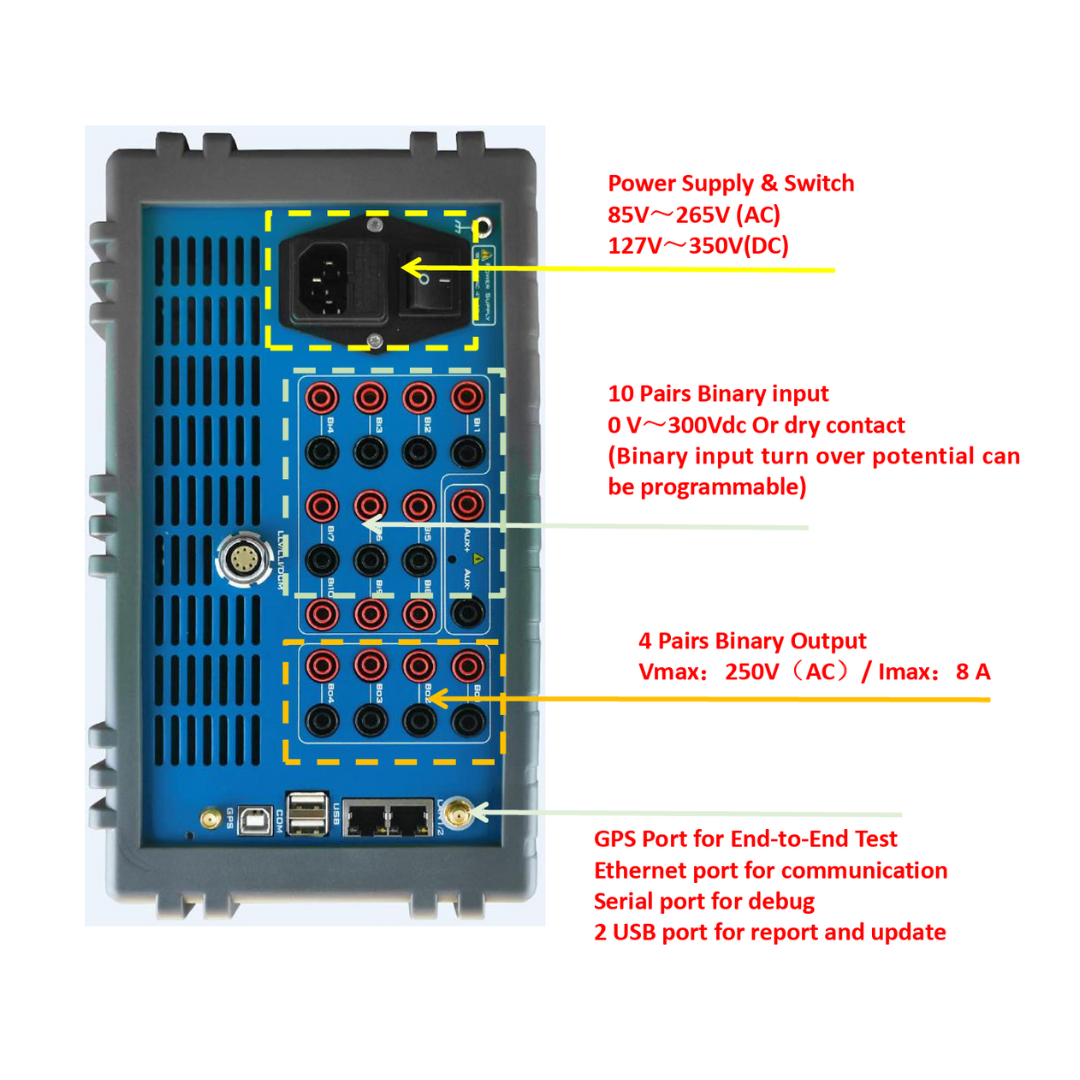

• Comprehensive I/O: Includes $\text{10}$ pairs of programmable Binary Inputs (ranging from $\text{0 V}\sim \text{300Vdc}$ or dry contact) and $\text{4}$ pairs of Binary Outputs ($\text{Vmax: 250V (AC)}/\text{Imax: 8A}$).

Technical Specifications Summary (Partial)

Frequently Asked Questions (FAQ)

What is the main advantage of the ARL-KF86P? The ARL-KF86P is recognized as the world’s lightest high-power universal relay tester. Its key advantage is its $\text{6}$-phase capability combined with extremely high power output (up to $\text{1000VA}$), making it versatile for testing both modern numerical relays and legacy high-burden electromechanical relays.

Does this test set support end-to-end testing? Yes, the ARL-KF86P is equipped with $\text{IRIG-B}$ Fiber, $\text{IRIG-B}$ Electric, and External Trigger synchronization ports, enabling precise time synchronization required for accurate end-to-end relay testing across a power network.

What is the maximum current output of the ARL-KF86P? It can output $\text{6}$ phases of current up to $\text{35A}$. When configured for single-phase high-current tests, it can deliver a peak output of $\text{100A}$ at $\text{1000VA}$.
