Window Glass Ventilation Fan Window Type with Wind Pressure Shutters ARL-APC-15/20-YC3-1 Series

Window Glass Ventilation Fan Window Type with Wind Pressure Shutters ARL-APC-15/20-YC3-1 Series

The Window Glass Ventilation Fan Window Type with Wind Pressure Shutters ARL-APC-15/20-YC3-1 Series is a advanced window-mounted solution designed for superior air circulation and indoor comfort. These fans feature integrated wind pressure check shutters, effectively preventing outdoor airflow and insects from entering the space, ensuring a cleaner and more controlled environment. Engineered for straightforward installation directly into window glass, the APC-YC3-1 series provides powerful ventilation while offering enhanced protection, making it an ideal choice for maintaining optimal indoor air quality.

Key Features:

• Integrated wind pressure check shutters to prevent outdoor airflow and pests
• Designed for direct and easy installation into window glass
• Provides effective air exchange for improved air quality
• Available in multiple sizes to suit various window openings
• Reliable and energy-efficient operation

Technical Specifications:

Model ARL-APC15-YC3-1:

• Specification: 150mm (6 inch)
• Rated Power: 16 W
• Nominal Air Volume: 180 m³/h
• Speed: 1950 r/min
• Noise: 38 dB(A)
• Opening Size: Φ185 mm
• Applicable Area: 8-12 m²
• Quantity: 18 Pc
• Gross Weight: 16.3 Kg
• Packing Size (length x width x height): 675x345x480 mm
• 3C Certification: Certified
• Energy Efficiency Rating: 1

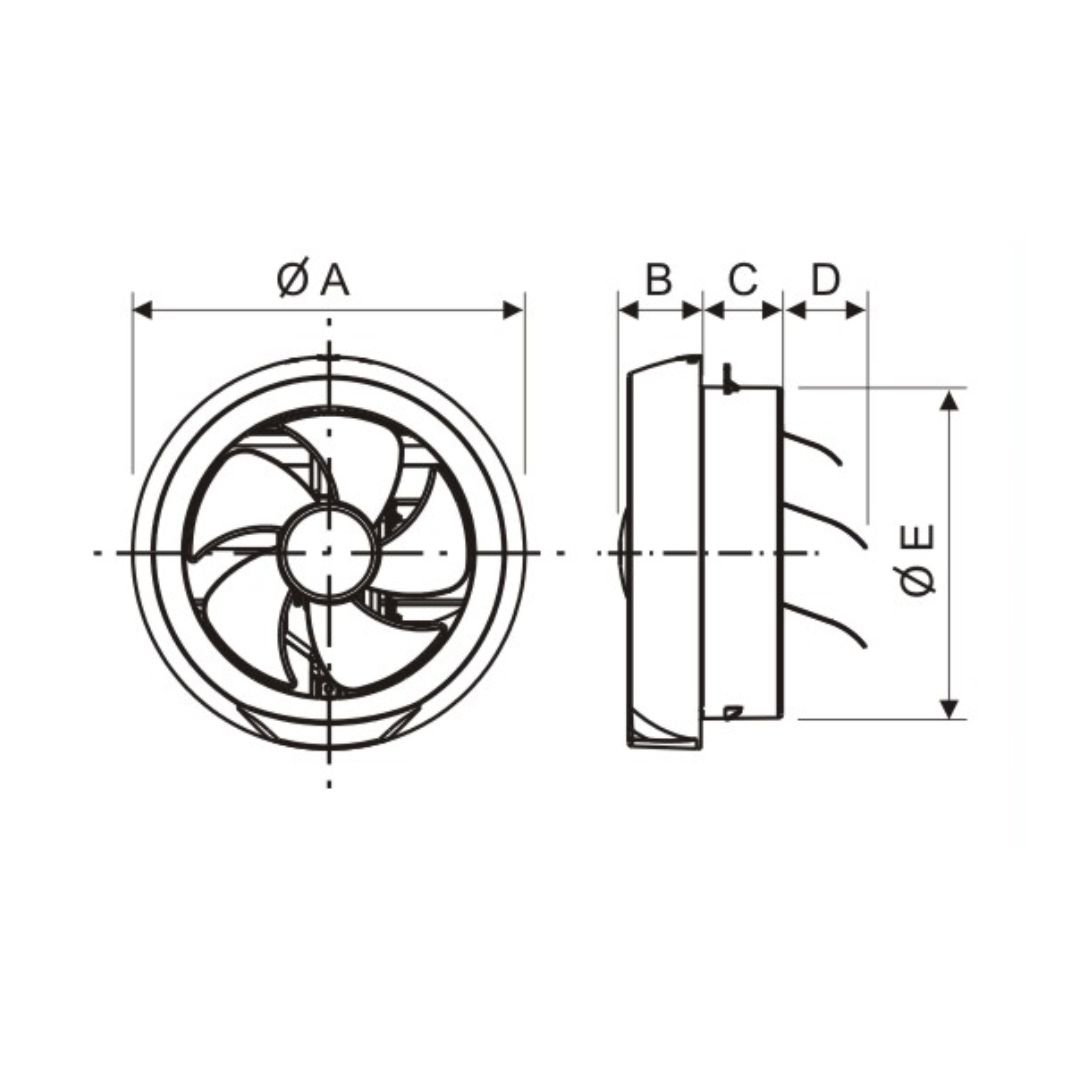

• Dimensions (mm): A: Φ208, B: 43, C: 43, D: 45, E: Φ176

ARL-APC20-YC3-1:

• Specification: 200mm (8 inch)
• Rated Power: 23 W
• Nominal Air Volume: 360 m³/h
• Speed: 1750 r/min
• Noise: 42 dB(A)
• Opening Size: Φ250 mm
• Applicable Area: 15-20 m²
• Quantity: 12 Pc
• Gross Weight: 18.5 Kg
• Packing Size (length x width x height): 610x405x645 mm
• 3C Certification: Certified
• Energy Efficiency Rating: 1
• Dimensions (mm): A: Φ275, B: 42, C: 51, D: 36, E: Φ238
